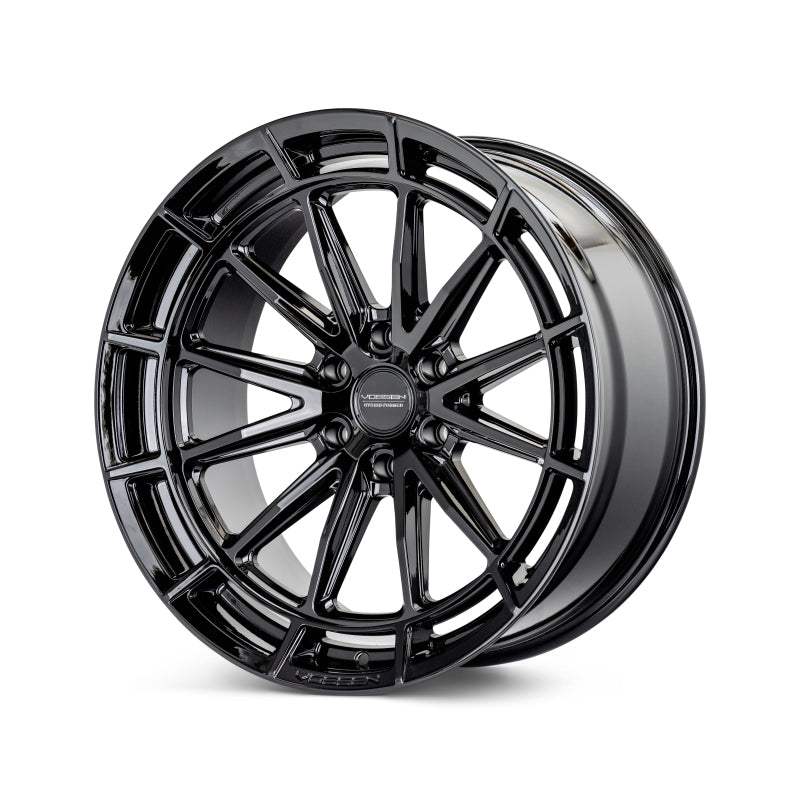

Vossen HFX-5 - 20x9.5 - 6x130 - ET30 - Deep Face - 84.1 - Gloss Black Wheel

The Vossen HFX-5 is a 6-lug Hybrid Forged wheel built on Vossen's flow forming platform, designed specifically for 6-lug light trucks, SUVs, and full-size pickup trucks. The HFX-5 uses a multi-spoke face design with an aggressive deep concave profile that fills the fender well on lifted and leveled trucks. Each HFX-5 is manufactured using Vossen's flow forming process, which produces a stronger and lighter barrel than conventional casting.

Hybrid Forged Flow Forming Process

The HFX-5 begins as a gravity-cast aluminum face. After casting, the wheel is mounted to a flow forming drum and hydraulic rollers stretch and compress the barrel material radially, improving grain structure. This produces a barrel that is denser, stronger, and lighter than a conventionally cast barrel. The result approaches the properties of a fully forged barrel at a lower cost.

Deep Concave Profile

The HFX-5 is offered in a Deep concave profile. The deep profile positions the face of the wheel significantly inboard relative to the outer lip, creating pronounced three-dimensional depth especially visible on trucks with wider-than-stock tires. It also maximizes brake caliper clearance.

6-Lug Truck Platform Compatibility

This listing is for the HFX-5 in 20x9.5, 6x130, ET30, 84.1mm center bore. 6x130 fitment covers the Mercedes-Benz Sprinter 2500 and 3500 van platforms. Hub centric rings are recommended when vehicle hub bore does not match. Lug nuts, tires, TPMS sensors not included.

Finish: Gloss Black

Gloss Black delivers a high-sheen mirror-like black finish that creates a bold, attention-grabbing look on any truck build.

What's Included

• 1 x Vossen HFX-5 wheel in 20x9.5, 6x130, ET30, Gloss Black (single)
• 1 x Vossen center cap
• Vossen valve stem cap

Note: Lug nuts, tires, TPMS sensors, and hub centric rings are not included. Sold individually.

Product Specifications

Frequently Asked Questions

Q: Does the 6x130 bolt pattern fit the Mercedes-Benz Sprinter?
A: Yes. The 6x130 bolt pattern is the factory bolt pattern for the Mercedes-Benz Sprinter 2500 and 3500. This HFX-5 is a direct bolt-on for those platforms.

Q: Do I need hub centric rings?
A: Hub centric rings are recommended if your vehicle's hub bore is smaller than 84.1mm. They eliminate vibration caused by the wheel sitting off-center on the hub.

Q: What lug nuts do I need?
A: Lug nuts are not included. You will need lug nuts compatible with your vehicle's thread pitch and the HFX-5 seat type (conical/tapered 60°). Consult your vehicle manual for the correct thread pitch.

Q: What tire sizes work with a 20x9.5 wheel?
A: Common tire sizes for a 20x9.5 wheel include 275/55R20 and 285/50R20, depending on your vehicle's fender clearance and suspension setup.

Q: How does the HFX-5 compare to the HF6-5?
A: The HFX-5 uses Vossen's Hybrid Forged flow forming process with a cast face and flow formed barrel, while the HF6-5 is a full monoblock forged wheel. The HFX-5 offers a more accessible price point while still delivering improved strength over conventional casting.

Q: Are TPMS sensors compatible with the HFX-5?
A: Yes. The HFX-5 valve stem hole accommodates standard snap-in and clamp-in TPMS sensors. TPMS sensors are not included and must be sourced separately.

Q: What is the warranty on the HFX-5?
A: Vossen provides a 5-year workmanship warranty plus a lifetime structural warranty on all HFX-5 wheels.

Q: Is the HFX-5 suitable for lifted trucks?
A: Yes. The HFX-5 was designed specifically with lifted and leveled trucks in mind. The deep concave profile fills the fender well on wider-than-stock tire setups common on lifted trucks.
