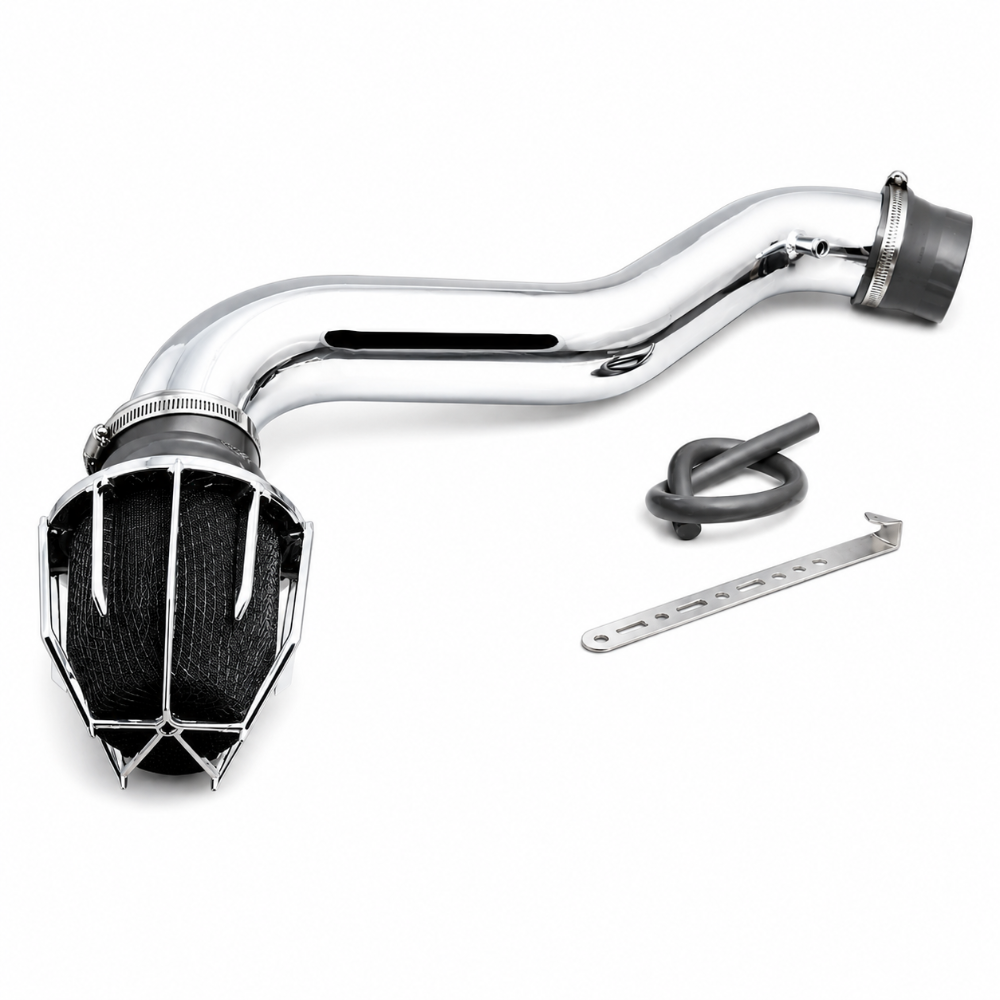

Weapon R 805-140-101 Polished Dragon Intake 1994-1996 Lexus ES300 Toyota Camry 3.0L V6

The Weapon R 805-140-101 Dragon Intake delivers dual velocity airflow technology to the 1994-1996 Lexus ES300 and 1994-1996 Toyota Camry 3.0L V6, replacing the restrictive factory airbox with a hand TIG-welded, CNC mandrel-bent 6061 T6 aluminum tube finished to a mirror polish. The Dragon name comes from Weapon R's proprietary dual velocity profile, which routes two separate air streams at different speeds so they pull against each other and increase total airflow volume beyond what a single-stream design can produce. The result is a bolt-on upgrade that requires no tune, fits the shared Toyota 3VZ-FE platform, and carries CARB EO number D-489-2 for full 50-state street legality.

Key Features

• Weapon R Dragon Intake, purpose-built for the 1994-1996 Lexus ES300 and Toyota Camry 3.0L V6
• Dual velocity profile: two air streams travel at different speeds and amplify each other, increasing total airflow volume
• CNC mandrel-bent 6061 T6 aluminum tube preserves full internal diameter through every bend
• Hand TIG-welded construction for strength and show-quality surface integrity
• Mirror-polished finish suitable for engine bay display
• Dragon foam filter: high-density polyurethane foam with a CAD-designed velocity stack inlet
• Washable and reusable filter media eliminates recurring replacement costs
• Dry filter media type, no oil required
• CARB Executive Order D-489-2 certified, legal in all 50 states including California
• EPA compliant
• No ECU tune required after installation
• Direct bolt-on replacement for the factory airbox and intake tube
• Manufactured in Japan
• Backed by Weapon R's 1 Million Mile Limited Warranty

Specifications

What's Included

• Dragon Intake pipe (polished 6061 T6 aluminum)
• Dragon high-density polyurethane foam air filter with CAD-designed velocity stack
• Mounting hardware and brackets
• Hose clamps
• Installation instructions

Fitment

Installation Instructions

1. Disconnect the negative battery terminal and set it aside to prevent accidental startup during the install.
2. Open the factory airbox and remove the factory paper air filter.
3. Remove the airbox lid and set aside.
4. Disconnect the MAF (Mass Airflow) sensor harness from the factory intake tube and set the connector out of the way.
5. Disconnect all vacuum lines and breather hoses attached to the factory intake tube, labeling them if needed for reference during reinstallation.
6. Unbolt and remove the factory airbox base and intake tube from the engine bay.
7. Position the Dragon Intake pipe in the engine bay and attach the included mounting bracket to the factory mounting points.
8. Transfer the MAF sensor from the factory tube to the corresponding bung on the new Dragon Intake pipe, torquing to manufacturer spec.
9. Reconnect all vacuum lines and breather hoses to the ports on the new Dragon Intake pipe in the same configuration as the factory setup.
10. Slide the Dragon high-density polyurethane foam filter onto the inlet end of the intake pipe.
11. Tighten all hose clamps securely, including the filter clamp and any coupler clamps on the intake pipe.
12. Reconnect the MAF sensor harness and verify the connector clicks fully into place.
13. Reconnect the negative battery terminal.
14. Start the vehicle and allow it to idle for 10 to 15 minutes so the ECU can relearn airflow parameters for the new intake.
15. Monitor for any check engine lights. If a MAF-related code appears, clear it with an OBD-II scanner and verify all connections are secure before rechecking.

Frequently Asked Questions

Is this intake CARB legal in California?
Yes. This intake holds CARB Executive Order number D-489-2, which means it is certified street-legal in all 50 states, including California. You can present the EO number during a smog inspection as proof of compliance.

Does the Dragon Intake add horsepower to the 3.0L V6?
Weapon R's dual velocity profile is designed to increase airflow volume beyond a standard single-stream intake. Real-world gains on the 3VZ-FE vary by vehicle condition and other modifications, but the primary goal is to reduce intake restriction and improve throttle response across the RPM range.

What engine does this intake fit?
This intake is engineered specifically for the Toyota 3VZ-FE 3.0L V6. This engine was used in the 1994-1996 Lexus ES300 and the 1994-1996 Toyota Camry (LE, SE, and XLE trims). It does not fit four-cylinder Camry models or other engine codes.

Will I need a tune after installing this intake?
No tune is required. This intake retains the factory MAF sensor and uses a direct bolt-on configuration that the ECU handles through its normal airflow relearn cycle. Allow the engine to idle for 10 to 15 minutes after installation for the ECU to adjust.

How do I clean the Dragon foam filter?
The Dragon filter uses high-density polyurethane foam that is washable and reusable. Remove the filter from the intake pipe, rinse it with warm water, apply a mild automotive cleaner if needed, rinse thoroughly, and allow it to air dry completely before reinstalling. Do not use compressed air to dry the filter or reinstall it while wet.

Does this intake fit both the Lexus ES300 and the Toyota Camry?
Yes. The 1994-1996 Lexus ES300 and the 1994-1996 Toyota Camry share the Toyota XV10 platform and the 3VZ-FE engine architecture, so this Dragon Intake fits both vehicles.

Does this replace the entire factory airbox?
Yes. The Dragon Intake is a complete short ram replacement for the factory airbox assembly and intake tube. The factory airbox base, lid, filter, and tube are all removed and replaced by the Dragon Intake pipe and filter as a single unit.

How long does installation typically take?
For someone with basic hand tools and moderate mechanical familiarity, installation typically takes 30 to 60 minutes. The most time-consuming steps are labeling and reconnecting vacuum and breather hoses and allowing the ECU idle relearn period after startup.

What type of filter media does the Dragon filter use?
The Dragon filter uses dry high-density polyurethane foam. No filter oil is needed. This keeps maintenance simple and eliminates the risk of over-oiling that can affect MAF sensor readings.

Is this product covered under Prop 65?
No Prop 65 warning applies to this product.

Warranty

The Weapon R Dragon Intake (MPN 805-140-101) is covered by Weapon R's 1 Million Mile Limited Warranty against defects in materials and workmanship. This warranty is transferable and is provided in compliance with the Magnuson-Moss Warranty Act, meaning it does not void your vehicle's factory powertrain warranty solely because you installed an aftermarket part. Retain your purchase receipt as proof of purchase for any warranty claims.
