SKU: S90870067P49 | UPC: 190300619726

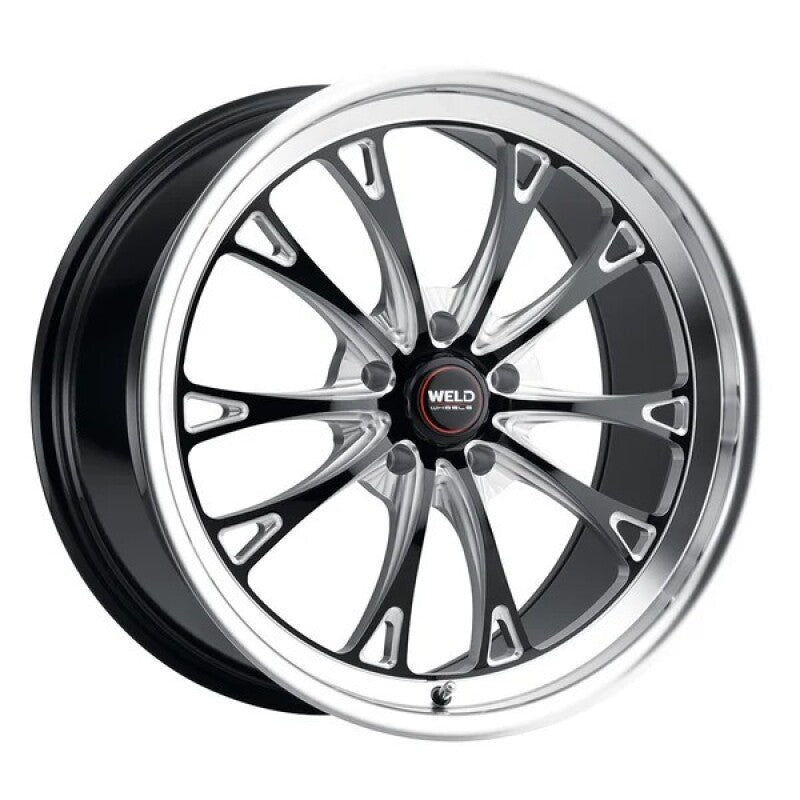

Weld Belmont Beadlock 17x10 5x114.3 ET49 BS7.42 Gloss Black 78.1mm Hub 1988-2021 Honda Civic Acura Integra Subaru WRX
Weld Belmont Beadlock wheels deliver race-ready performance with a mechanical inner beadlock ring that locks tire beads under extreme acceleration. This 17x10 configuration with 5x114.3 bolt pattern ET49 offset and 7.42-inch backspace fits Honda Civic Integra and Subaru WRX models for drag strip dominance or street grip. Cast aluminum construction handles high horsepower while the gloss black finish adds bold style.
Key Features
- Mechanical Beadlock Ring: Bolts secure tire bead preventing spin-off at launch for consistent 60-foot times in bracket racing
- 17x10 Size: Accommodates wide drag slicks or radials up to 10-inch section width for maximum traction
- 5x114.3 Bolt Pattern: Direct bolt-on for JDM performance cars including Honda and Subaru with no adapters needed
- ET49 Offset 7.42 BS: Positions wheel flush for widebody setups and clears OEM or big brake calipers
- Gloss Black Finish 78.1mm Center Bore: Hubcentric fit reduces vibration with durable powder coat resisting corrosion
Product Notes
- Torque beadlock ring bolts to 15-20 ft-lbs during tire mounting
- Clean wheels regularly to maintain gloss black finish longevity
- Ships individually boxed oversize handling may apply
Installation Notes
- Professional installation recommended.
- Mount beadlock ring before tire installation using provided hardware
- Compatible with OEM lug nuts 14x1.5 or aftermarket extended studs
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1988-1991 | Honda | Civic | EF CRX Hatchback Coupe Sedan |
| 1992-2000 | Honda | Civic | EG EK Hatchback Coupe Sedan Si |
| 1994-2001 | Acura | Integra | GS GS-R LS Type R |
| 1989-1998 | Nissan | 240SX | SE S14 S13 Coupe |
| 2002-2021 | Subaru | Impreza WRX STI | Base WRX STI Hatch Sedan |
Why Choose Weld?
- Proven in NHRA drag racing since 1970 with championship wins
- Cast aluminum alloy withstands 1000+ hp launches
- Engineered in USA for exact tolerances and balance
Frequently Asked Questions
-
Q: Will this fit my 1995 Honda Civic EK hatchback?
A: Yes 5x114.3 bolt pattern and 78.1mm hub bore match perfectly with ET49 providing ideal rear stance -
Q: Is the gloss black finish real beadlock safe for track use?
A: Powder coated gloss black resists chips and heat while beadlock ring handles tire pressures to 40 psi -
Q: What is the warranty and tire mounting process?
A: Lifetime structural warranty on defects install ring first then mount tire torque to spec no balancing required
Shipping & Handling
- Method: UPS Ground Freight Class 70
- Availability: In stock - ships same or next business day
- Packaging: Individual oversize box 19x19x17 inches
- Weight: 26.4 lbs product 32 lbs shipping
