Click to zoom in
SKU: S1577C067N21 / UPC: 190300118199

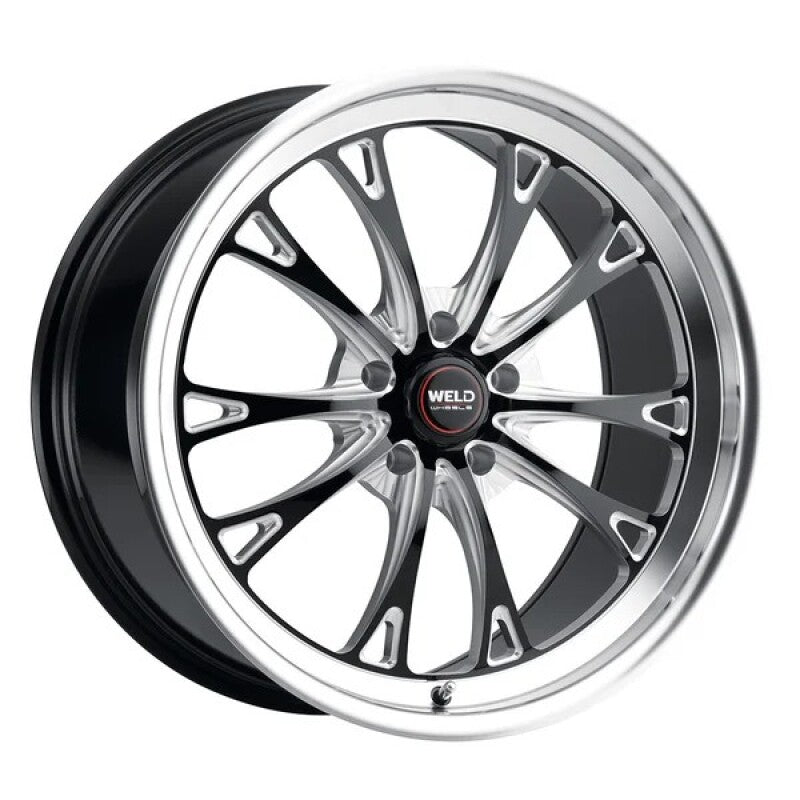

Weld Belmont Beadlock 17x5 5x114.3 ET21 Gloss Black Wheel for 1989–1999 Nissan 240SX & DSM (Eclipse/Talon)
The Weld Belmont Beadlock is a race-proven wheel designed for serious drag racing applications on 1989–1999 Nissan 240SX and DSM platforms (Mitsubishi Eclipse, Eagle Talon, Plymouth Laser).
This true beadlock wheel features an aluminum beadlock ring and Grade 8 hardware that securely clamps the tire bead, allowing safe operation at high pressures for maximum traction. At just 20.2 pounds, it significantly reduces unsprung weight compared to steel wheels while maintaining the strength needed for high-horsepower builds.
The gloss black powder coat finish provides excellent corrosion resistance and a clean, aggressive race look.
Key Features
- True Beadlock Design – Aluminum ring with Grade 8 hardware securely locks the tire bead for high-pressure drag use
- Lightweight Construction – Only 20.2 lbs per wheel reduces rotational mass for quicker acceleration and better braking
- Gloss Black Finish – Durable powder coat that resists chips and maintains a sharp race appearance
- Precise Fitment – ET21 offset and 2.15" backspace for proper clearance on narrow drag setups
- Hubcentric Design – 78.1mm center bore for vibration-free performance (hub rings available if needed)
- 5x114.3 Bolt Pattern – Direct fit for Nissan 240SX and DSM chassis
Specifications
| Detail | Value |
|---|---|
| Brand | Weld |
| Type | Belmont Beadlock Wheel |
| Size | 17 x 5 inches |
| Bolt Pattern | 5x114.3 |
| Offset | ET21 |
| Backspace | 2.15 inches |
| Center Bore | 78.1mm |
| Weight | 20.2 lbs |
| Finish | Gloss Black Powder Coat |
| Country of Origin | United States |
| Warranty | Lifetime Structural Warranty |
Whats Included
- Weld Belmont Beadlock Wheel (Single Wheel)
- Beadlock Ring & Grade 8 Hardware
Product Notes
- True beadlock wheel – requires proper assembly and periodic torque checks on ring bolts
- Designed for drag racing and high-performance street/strip applications
- Professional installation and balancing strongly recommended
This Part Fits
| Year Range | Make | Model | Notes |
|---|---|---|---|
| 1989–1999 | Nissan | 240SX | All models |
| 1990–1999 | Mitsubishi | Eclipse | GS, GSX, GST, RS |
| 1990–1999 | Eagle | Talon | TSi, TSi AWD, ESi |
| 1990–1994 | Plymouth | Laser | RS |
Why Choose Weld Wheels?
- Decades of proven performance in NHRA and IHRA drag racing
- USA-made cast aluminum wheels built for high-horsepower abuse
- Focus on safety, strength, and reduced weight for competitive advantage
- Trusted by serious drag racers and performance enthusiasts
Frequently Asked Questions
- Q: Will this fit my 1992 Nissan 240SX for a drag setup?
- A: Yes, it is a direct fit for all 1989–1998 Nissan 240SX models and works excellently with skinny front runners or narrow rear slicks.
- Q: Is this a true beadlock wheel?
- A: Yes. It includes a real aluminum beadlock ring and Grade 8 hardware for secure tire retention at high pressures.
- Q: How much does each wheel weigh?
- A: Each wheel weighs 20.2 lbs, making it significantly lighter than most steel beadlock wheels.
- Q: What torque spec is required for the beadlock ring?
- A: Torque the beadlock ring bolts to 20 ft-lbs (dry) and recheck periodically.
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock – ships same or next business day
- Packaging: Individual wheel box (19" x 19" x 9")
- Weight: 20.2 lbs (product) / 25 lbs (shipping)
