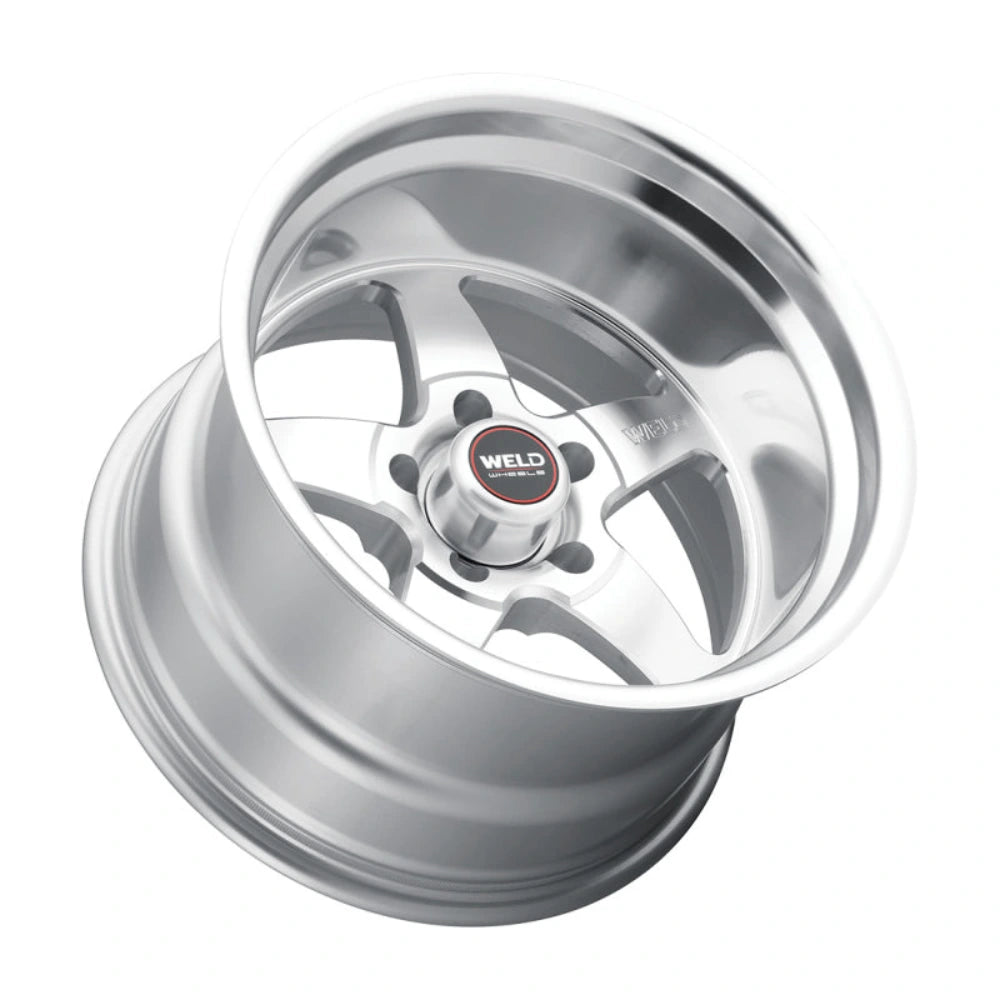

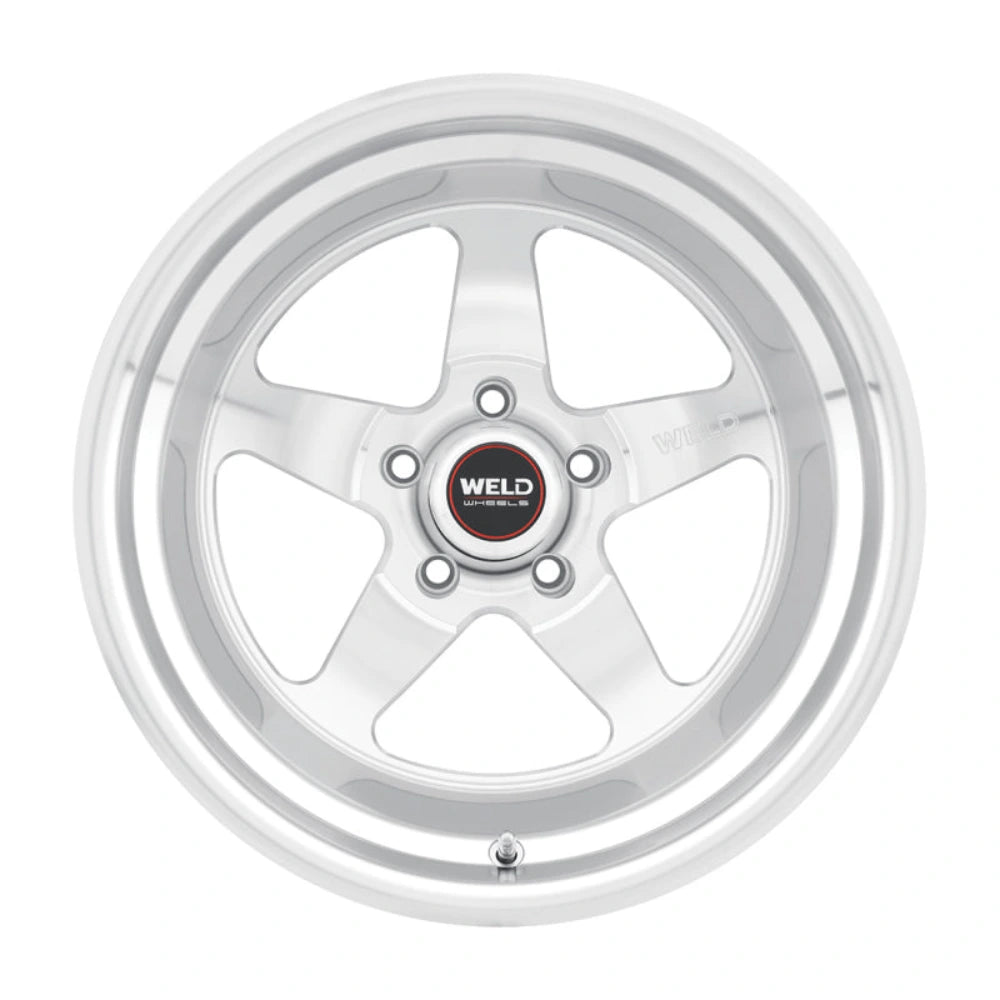

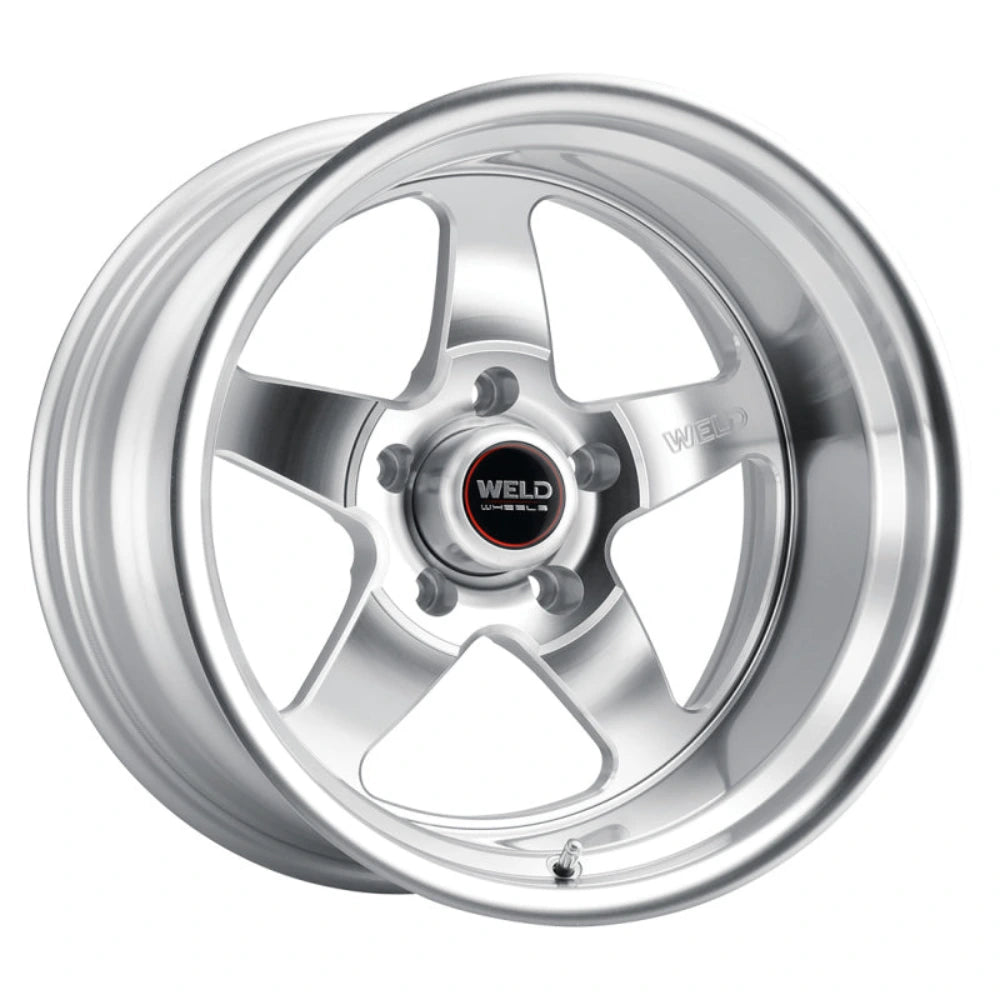

Rotary Forged Street Wheel for Jeep and Mopar 5x127 Platforms That Demand a Cleaner Look
The Weld Racing S105 Ventura in 20x8 Gloss Silver Machined is a rotary forged one-piece street wheel designed for daily-driven and weekend performance Jeep Wrangler, Grand Cherokee, Dodge Durango, and Ram 1500 applications running the 5x127 bolt pattern. The WELS10508073450 uses a 5-spoke design with a machined spoke face over a gloss silver base, delivering contrast and a clean showroom-ready appearance. Weld's rotary flow-forming process aligns the aluminum grain structure during production, producing a stronger and lighter barrel than conventional gravity-cast wheels of the same size and width.
Key Features
- Weld Racing S105 Ventura rotary forged 5-spoke street wheel
- 20x8 diameter and width, offset ET00 (0mm), backspacing 4.50 inches
- 5x127mm (5x5.0 inch) bolt pattern for Jeep Wrangler JK/JL, Grand Cherokee, Dodge Durango, Ram 1500
- 78.1mm center bore for hub-centric fit on Jeep and Mopar applications
- Gloss Silver Machined finish with polished spoke faces over silver base
- Rotary flow-formed construction for superior strength-to-weight ratio
- 1,800 lb load rating per wheel
- Non-directional design allows unrestricted tire rotation
- Part number: S10508073450
Fitment
| Year Range | Make | Model |
|---|---|---|
| 2007-2018 | Jeep | Wrangler JK |
| 2018-2024 | Jeep | Wrangler JL |
| 2020-2024 | Jeep | Gladiator JT |
| 2011-2021 | Jeep | Grand Cherokee WK2 |
| 2011-2021 | Dodge | Durango |
| 2009-2018 | Ram | 1500 |
Specifications
| Detail | Value |
|---|---|
| Part Number (MPN) | S10508073450 / WELS10508073450 |
| Brand | Weld Racing |
| Series | S105 Ventura |
| Diameter | 20 inches |
| Width | 8 inches |
| Offset | ET00 (0mm) |
| Backspacing | 4.50 inches |
| Bolt Pattern | 5x127mm (5x5.0 inch) |
| Center Bore | 78.1mm |
| Finish | Gloss Silver Machined |
| Construction | Rotary Forged (Flow-Formed) |
| Structure | One-Piece Monoblock |
| Spokes | 5 |
| Load Rating | 1,800 lbs per wheel |
| Directional | Non-directional |
| UPC | N/A |
| Prop 65 | Yes |
What's Included
- 1 Weld S105 Ventura wheel (20x8 Gloss Silver Machined, 5x127, ET00)
- Center cap
About Weld Racing
Weld Racing has been building performance wheels since 1967, originating in drag racing applications and expanding into street, off-road, and truck markets. Based in Kansas City, Missouri, Weld is known for pioneering rotary flow-forming technology in the aftermarket wheel space. The S105 Ventura lineup is Weld's rotary forged street wheel series, combining drag racing-inspired spoke design with daily-drivability and modern fitment for Jeep, Dodge, and Ram platforms.
Related Parts on Our Site
Frequently Asked Questions
What is the WELS10508073450?The WELS10508073450 is the Weld Racing S105 Ventura 20x8 wheel in Gloss Silver Machined finish with a 5x127mm bolt pattern, ET00 offset, 4.50-inch backspacing, and 78.1mm center bore. It is a rotary forged one-piece street wheel designed for Jeep Wrangler JK/JL, Gladiator JT, Grand Cherokee WK2, Dodge Durango, and Ram 1500 applications using the 5x5.0 bolt pattern.
What is the 5x127 bolt pattern equivalent to?5x127mm is the metric equivalent of 5x5.0 inches. This is a common bolt pattern on Jeep, Dodge, and Ram light trucks and SUVs. It is not interchangeable with the 5x114.3 (5x4.5) or 5x120 patterns used on import and European vehicles. Always verify your vehicle's exact bolt pattern before purchasing.
Does the Weld S105 Ventura 20x8 fit a Jeep Wrangler JL?Yes. The 5x127 bolt pattern and 78.1mm center bore fit 2018 and newer Jeep Wrangler JL models. At ET00 offset with a 4.50-inch backspacing and 20-inch diameter, verify tire width and fender clearance for your specific lift height and tire size combination before mounting.
What tire size fits a Weld S105 20x8 5x127 wheel?A 20x8 wheel with ET00 offset and 4.50-inch backspacing is best paired with tires in the 265/50R20 to 275/50R20 range for street applications. For lifted Jeep Wrangler JL or Gladiator JT applications, confirm tire diameter and width against fender and suspension clearance for your specific lift kit.
What is rotary forged construction on Weld S105 wheels?Weld's rotary forged (flow-formed) process spins the wheel barrel against pressure rollers while the aluminum is heated, stretching and aligning the grain structure of the barrel material. This improves tensile strength and reduces weight compared to a conventionally cast barrel, producing a wheel that is lighter and more resistant to bending and curb impact damage.
Is the Gloss Silver Machined finish on the S105 Ventura durable?The machined face is polished to a bright aluminum appearance and typically protected with a clear coat. The gloss silver base coat is a painted finish. Regular cleaning with a pH-neutral wheel cleaner and avoiding iron fallout removers with high acidity will maintain the finish. Stone chips on machined surfaces can be touched up with aluminum wheel touch-up paint.
Does the Weld S105 20x8 require hub-centric rings on a Jeep Wrangler?The 78.1mm center bore is matched to the Jeep Wrangler JK and JL hub diameter. Hub-centric rings are not required for stock Wrangler applications. If your specific vehicle has a hub diameter different from 78.1mm, hub-centric rings are recommended to eliminate vibration from a loose bore fit.
Can I use the Weld S105 5x127 on a Ram 1500 Classic?The 5x127 bolt pattern fits 2009-2018 Ram 1500 (DT Classic) in certain configurations. Verify the hub bore and offset requirements for your specific Ram trim and model year before purchasing, as Ram 1500 hub diameters and offset preferences can vary by cab configuration and drivetrain.
Does the Weld S105 Ventura 20x8 fit Dodge Durango?Yes. The 5x127 bolt pattern and 78.1mm center bore fit 2011-2021 Dodge Durango. At 20 inches and ET00 offset, verify clearance against the Durango's brake caliper and fender well for your specific trim and any suspension lift or leveling kit installed.
Installation Instructions
- Confirm bolt pattern (5x127), center bore (78.1mm), offset (ET00), and diameter (20) match your vehicle specifications.
- Clean the hub mounting surface to remove corrosion and old debris.
- Mount tire on the WELS10508073450 and balance using a road force balancer.
- Seat wheel on hub and hand-thread lug nuts in a star pattern.
- Torque lug nuts to OEM specification in a star pattern (95-100 ft-lb for most Jeep Wrangler and Grand Cherokee applications).
- Re-torque after 50 miles of driving to ensure proper seating.
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
