SKU: S16071171P00 | UPC: 190300624348

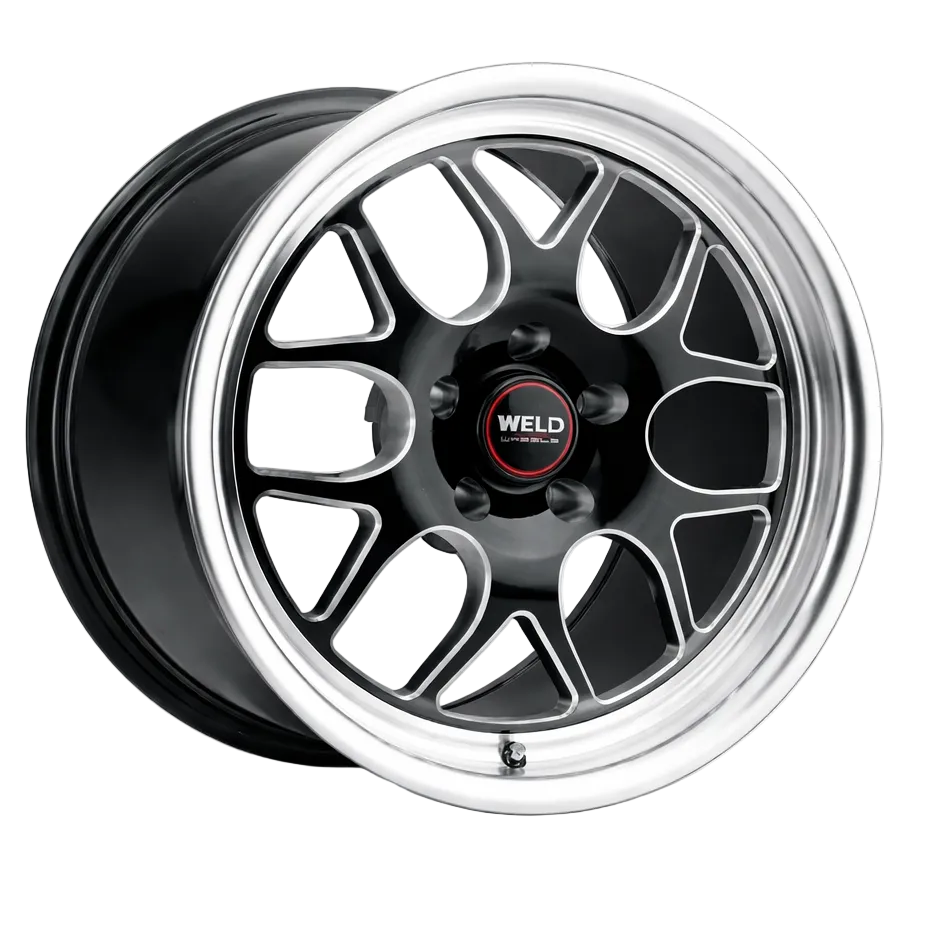

Weld Solana Drag 17x11 / 5x115 BP / ET0 / 78.1mm Bore - Gloss Black MIL DIA Wheel for Cadillac CTS STS DTS XLR 2003-2011
The Weld Solana Drag wheel in 17x11 size delivers drag racing performance with its 5x115 bolt pattern ET0 offset and 78.1mm hub bore. It fits Cadillac CTS STS DTS and XLR models from 2003 to 2011 for direct bolt-on installation. This cast aluminum wheel cuts rotational weight to improve launch times and traction with wide drag radials.
Key Features
- 17x11 Size: Wide stance supports 28-30 inch tall drag radials for superior hookup at the strip
- 5x115 Bolt Pattern: Direct fit for Cadillac vehicles ensuring secure mounting without adapters
- ET0 Offset: Zero tuck provides flush fitment and stable handling during high-speed runs
- 78.1mm Hub Bore: Hubcentric design centers wheel perfectly to eliminate vibrations and bearing wear
- Gloss Black MIL DIA Finish: Tough machined surface resists chips and corrosion for long-lasting style
Product Notes
- Intended for rear drag applications pair with narrower fronts for balanced setup
- Maintain finish by washing with soap and water after track use
- Individual wheel ships ready to mount tires sold separately
Installation Notes
- Professional installation recommended.
- Clean hub surface thoroughly before mounting for hubcentric seating
- Use OEM style lug nuts torque to 100-120 ft-lbs check after 100 miles
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2007 | Cadillac | CTS | All |
| 2005-2011 | Cadillac | STS | All |
| 2006-2011 | Cadillac | DTS | All |
| 2004-2009 | Cadillac | XLR | All |
| 2004-2009 | Cadillac | SRX | All |
| 2006-2010 | Pontiac | Solstice | All |
| 2007-2010 | Saturn | Sky | All |
Why Choose Weld?
- Drag racing leader since 1985 trusted by NHRA pros
- Cast aluminum build withstands extreme track stress
- Machine balanced for true rotation at high RPM
Frequently Asked Questions
-
Q: Does this fit a 2006 Cadillac STS rear?
A: Yes direct bolt-on with 5x115 pattern and 78.1mm bore matches OEM specs perfectly -
Q: What material and weight?
A: One-piece cast A356 aluminum alloy weighs 24 lbs for reduced unsprung mass -
Q: What warranty coverage?
A: Lifetime structural warranty against manufacturing defects when properly installed
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Protective cardboard wheel box 20x20x20 inches
- Weight: 24 lbs
