Westin 20-22 Chevrolet Silverado 2500/3500 HDX Modular Grille Guard - Black

Westin HDX Modular Grille Guard for 2020-2023 Silverado 2500 HD and 3500 HD

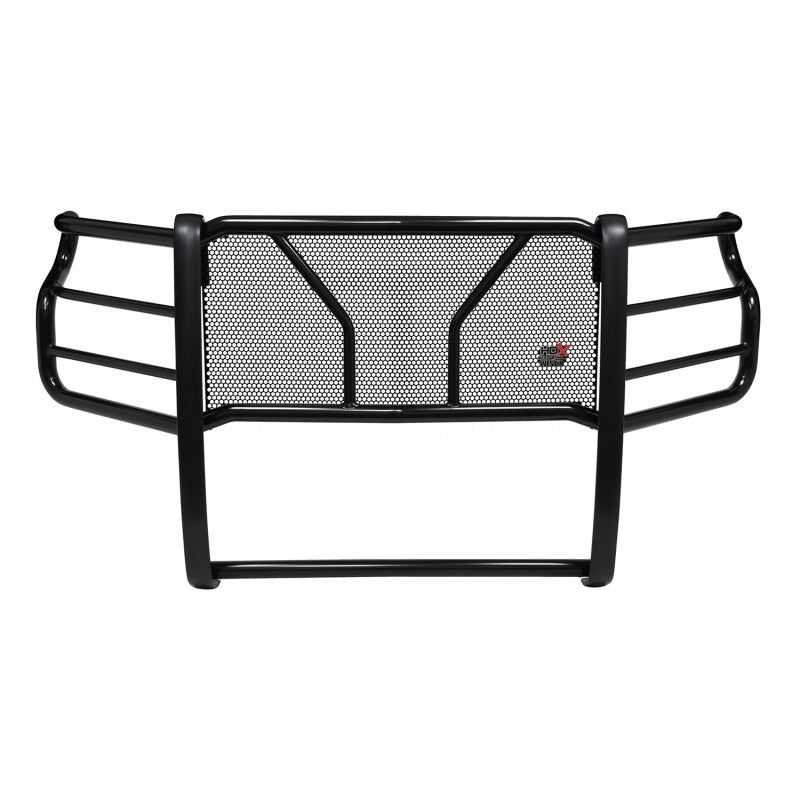

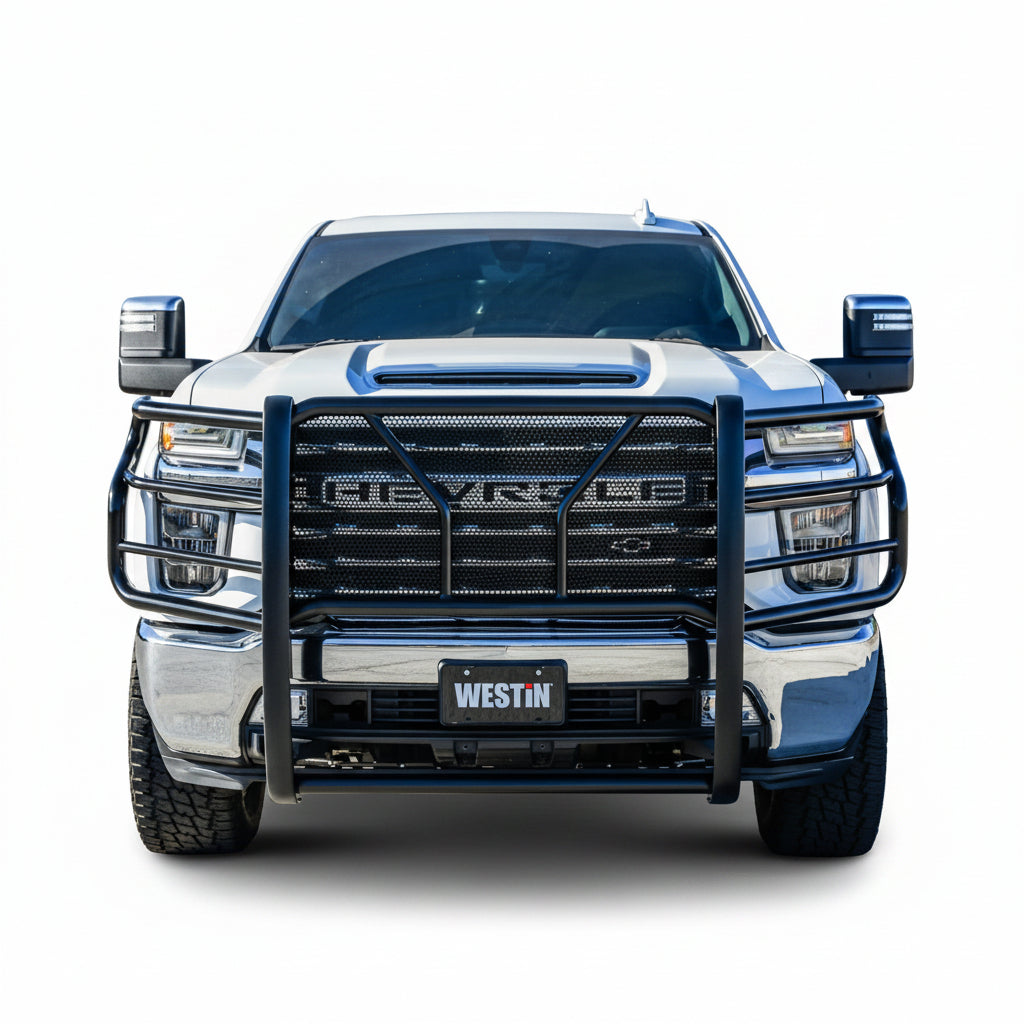

This Westin HDX Modular Grille Guard, part number 57-23995, bolts onto your 2020-2023 Chevrolet Silverado 2500 HD or 3500 HD and puts heavy-duty steel between your grille and headlights and whatever the road throws at you. The 3-piece design uses full wraparound wings built from 2-inch high-strength tube along with a removable center light bar panel, so you get real front-end coverage now and an easy path to add lights or a winch tray later without cutting or welding anything.

Key Features

• 3-Piece Modular Design: Removable center light bar panel and bolt-on driver and passenger wings let you add LED pods, a light bar, or a winch tray without cutting or welding
• 2-Inch Wraparound Wing Tubing: Full wraparound wings built from 2-inch diameter high-strength steel tube with 1-1/4-inch tube wing supports shield your headlights and front corners from impacts
• Full Punch Plate Grille: Covers the grille opening for complete front-end protection against road debris and off-road obstacles
• Black Powder Coat Finish: Textured black powder coat over an electrostatic base coat resists corrosion and holds up to daily driving and washing
• Heavy-Duty Upright Rubber Strips: 2-3/4-inch wide rubber push pad strips add a rugged clean look and extra coverage on the uprights
• Frame-Mount System: Mounts directly to the factory frame using the included brackets for a solid, vibration-free hold

Fitment

Part number 57-23995 is not compatible with trucks equipped with factory front parking sensors. Trucks with a front camera or factory tow hooks may require extra fitment steps during installation. A set of light clamps for auxiliary lighting is sold separately.

Specifications

What's Included

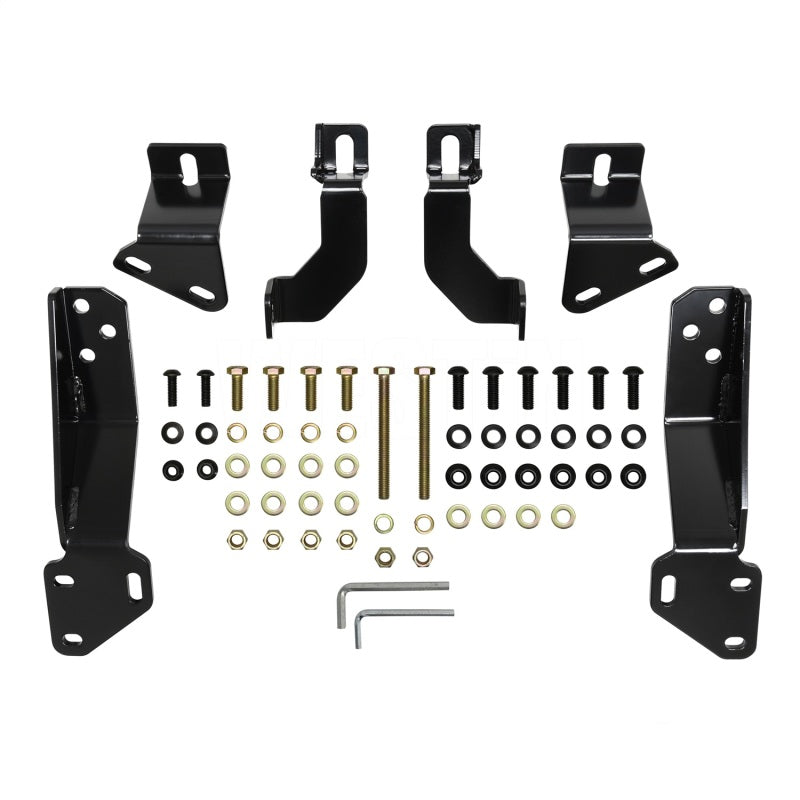

• Westin 57-23995 HDX Grille Guard base, driver wing, and passenger wing
• Lower driver and passenger mounting brackets and inside support brackets
• Upper support straps and cutting templates for the driver and passenger side
• Complete mounting hardware, including M8, M10, and M12 bolts, washers, and nuts

About Westin

Westin builds truck and SUV front-end protection including grille guards, bumpers, and running boards. The HDX Modular Grille Guard 57-23995 is engineered with gusseting and reinforcement for structural rigidity and is built and tested for real-world front-end impacts.

FAQ

It is a Westin HDX Modular Grille Guard in black powder coat steel built for the 2020-2023 Chevrolet Silverado 2500 HD and 3500 HD.

Yes, it bolts on to 2020-2023 Silverado 2500 HD trucks in Custom, High Country, LT, LTZ, and WT trim.

It fits 2020-2023 Silverado 3500 HD trucks in High Country, LT, LTZ, and WT trim. The 3500 HD is not offered in Custom trim.

No, this grille guard is not compatible with trucks equipped with factory front parking sensors.

It is built from heavy-duty steel tubing with a textured black powder coat finish over an electrostatic base coat for corrosion resistance.

No, it bolts to existing factory frame holes. Some minor trimming of the plastic bumper valence may be needed on certain trims for a flush fit, and cutting templates are included for that step.

Yes, the modular design lets you add LED pods or a light bar to the center panel and pair it with a compatible winch mount tray, both sold separately.

Westin backs the black powder coat finish with a 3-year warranty against manufacturer defects in materials, workmanship, and finish under normal use.

Installation Instructions

1. Remove all contents from the box and confirm every listed part is present and free of damage.
2. Open the hood and remove the plastic cover at the front of the engine bay using a pry tool.
3. Remove the four bolts holding the factory grille in place and disconnect any electrical connections.
4. Remove the bolts attaching the wheel well cover to the filler panel, then pry off the filler panel.
5. Remove the four upper bumper bolts and two lower bumper arm bolts attaching the bumper to the frame, then remove the bumper.
6. Loosely install the lower driver and passenger mounting brackets and support brackets onto the frame using the supplied M12 hardware, sandwiching the frame between the brackets.
7. Position the included cutting templates on the bumper valence and cut along the template lines as directed.
8. Reinstall the front bumper loosely using the upper support straps in place of the factory upper bumper bolts, then reconnect all electrical connections. Torque the factory bumper bolts holding the upper support straps to 50-55 ft-lbs and confirm the mounting surfaces of the straps measure about 42.25 inches apart.
9. Reinstall the filler panel and grille in the reverse order of removal.
10. With a helper, mount the HDX Grille Guard base to the lower mounting brackets and upper support straps using the supplied M10 and M12 hardware.
11. Install the driver and passenger wings using the supplied M8 hardware.
12. Align the assembly and torque all hardware to specification, M8 fasteners to 15-18 ft-lbs, M10 fasteners to 25-30 ft-lbs, and M12 fasteners to 45-50 ft-lbs.
