Firm Up Rear Roll Control On Your Twin Sixty Six Chassis

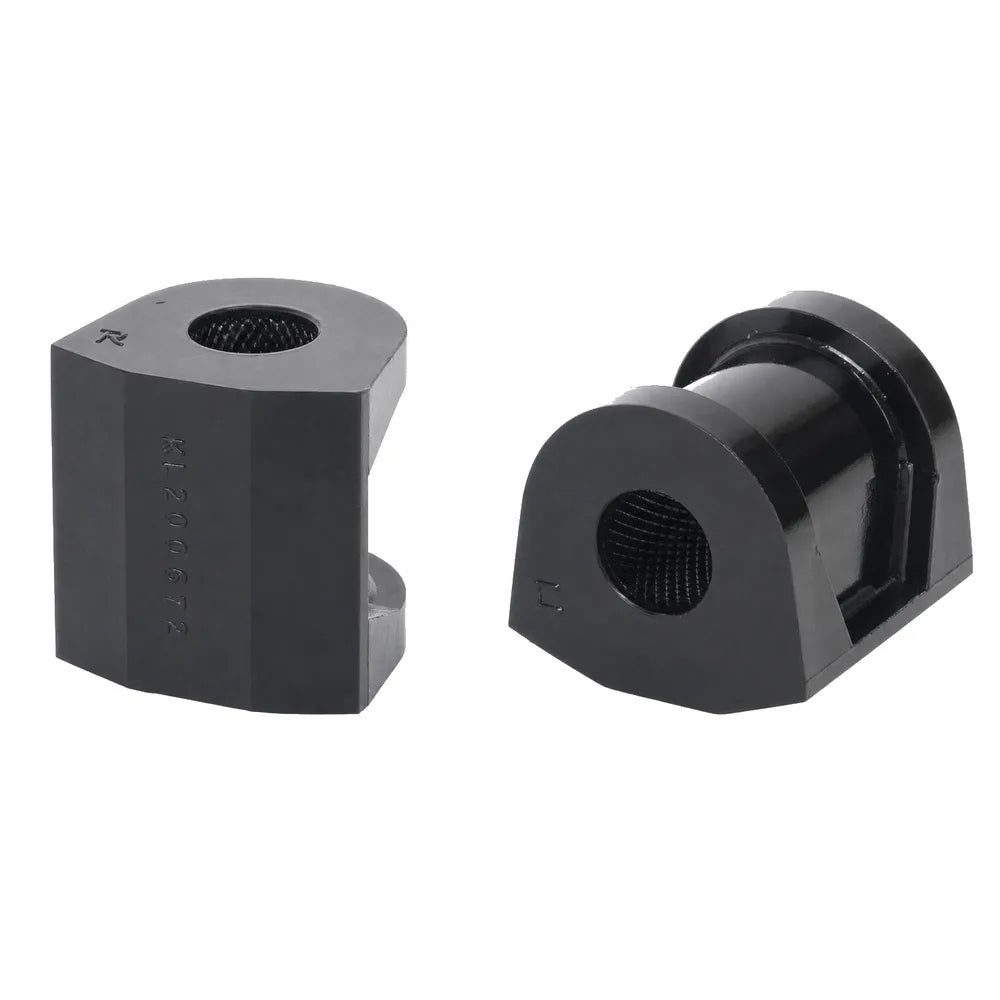

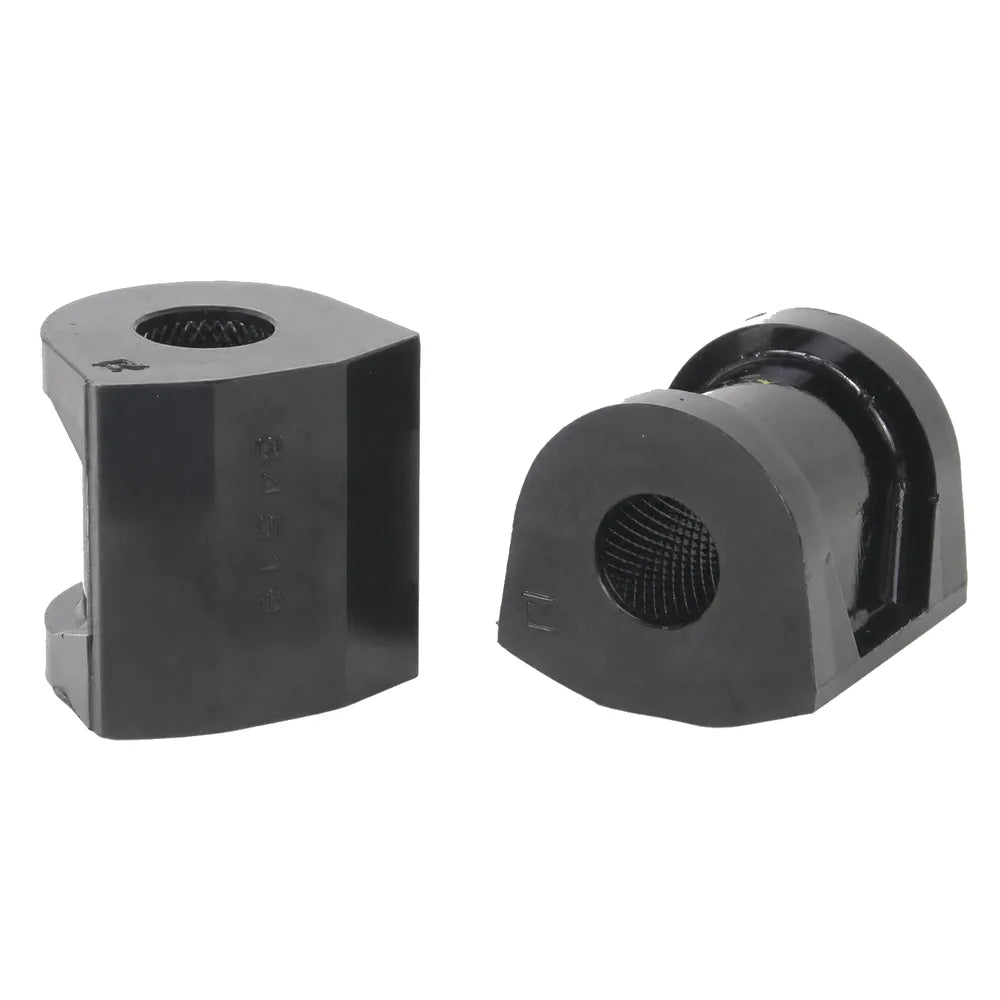

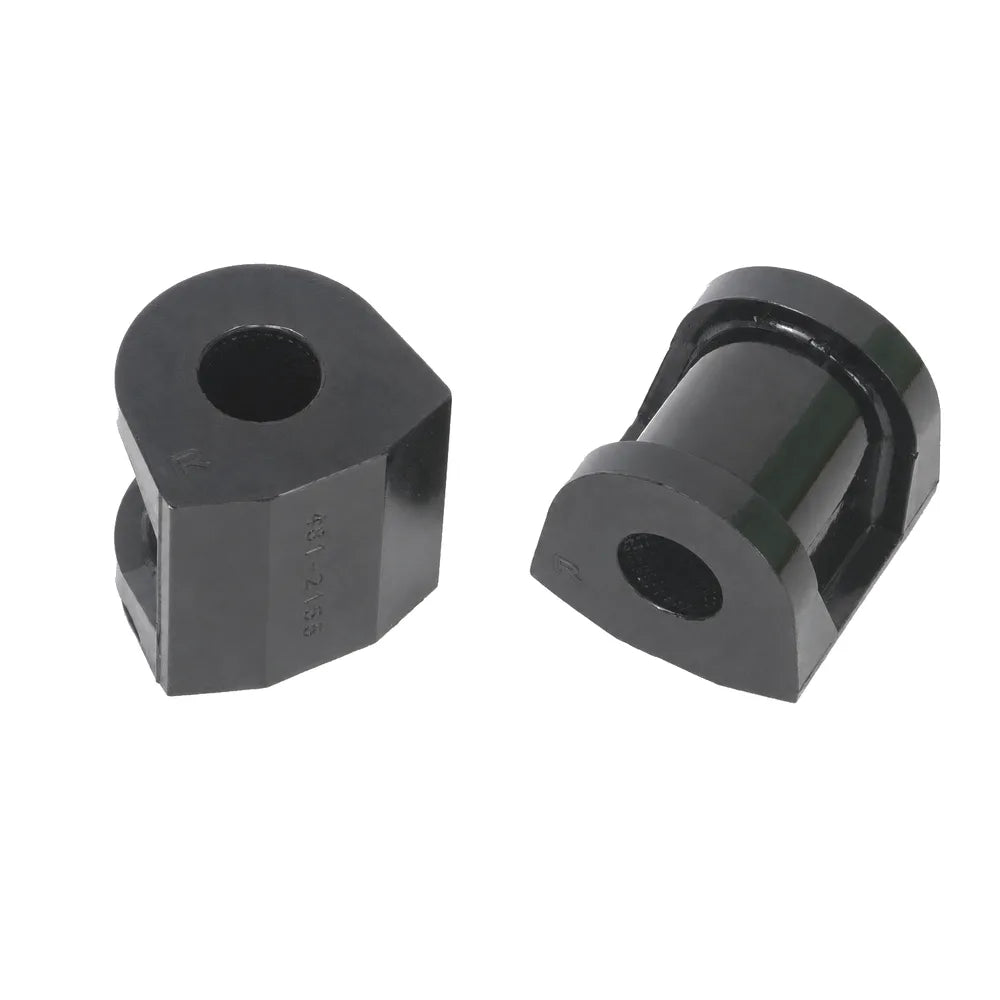

The factory rear sway bar mount bushings on the BRZ, FR-S, and 86 platform are built soft for a comfortable ride, but that softness allows the bar to shift under load, delaying roll resistance exactly when you need it most in a corner. This Whiteline KSK106-18 18mm bushing kit replaces the factory mount bushing with a firmer compound that keeps the rear sway bar located precisely, sharpening turn in response and reducing body roll.
Key Features
- Direct replacement rear sway bar mount bushing kit
- 18mm bushing size matches the factory rear sway bar diameter
- Firmer compound reduces bar shift under cornering load
- Improves roll control and turn in response
- KSK106-18 bolts in using the factory mounting hardware
Fitment
| Year Range | Make | Model |
|---|---|---|
| 2012-2024 | Subaru | BRZ |
| 2012-2016 | Scion | FR-S |
| 2012-2024 | Toyota | 86 |
Specifications
| Detail | Value |
|---|---|
| Manufacturer | Whiteline |
| MPN | KSK106-18 |
| UPC | 9319924390489 |
| Position | Rear Sway Bar Mount |
| Bushing Size | 18mm |
What's Included
- Rear sway bar mount bushing set
About Whiteline
Whiteline designs suspension bushings that replace soft factory rubber with firmer compounds engineered to reduce unwanted movement while preserving daily drivability. Their sway bar mount bushings keep the bar precisely located for sharper, more predictable handling.
FAQ
What is the KSK106-18?The KSK106-18 is a Whiteline 18mm rear sway bar mount bushing kit for the Subaru BRZ, Scion FR-S, and Toyota 86.
Why replace the factory sway bar mount bushing?The factory bushing is soft rubber that allows the sway bar to shift under load, which delays roll resistance during cornering.
Will this reduce body roll?Yes, the firmer bushing compound keeps the sway bar precisely located, which improves roll control and reduces body roll.
Does this fit the factory rear sway bar?Yes, the 18mm bushing size matches the factory rear sway bar diameter on this platform.
Is this a bolt in installation?Yes, the mount bushing uses the factory mounting hardware for a direct bolt in installation.
Will this bushing squeak over time?Whiteline bushings are designed with a durable compound and proper lubrication points to minimize noise when installed correctly.
Does this work with an aftermarket sway bar?Yes, as long as the aftermarket sway bar uses the factory 18mm mounting diameter, this bushing kit will fit.
Do I need an alignment after installing this bushing?No, replacing the sway bar mount bushing does not affect alignment settings.
Install Instructions
- Raise and safely support the rear of the vehicle on jack stands
- Remove the factory sway bar mount bracket bolts
- Remove the factory mount bushing from the sway bar
- Install the Whiteline KSK106-18 bushing and reinstall the mount bracket
- Torque all mounting bolts to factory specification
- Lower the vehicle
