Fix Camber And Caster Loss After A Land Cruiser Lift

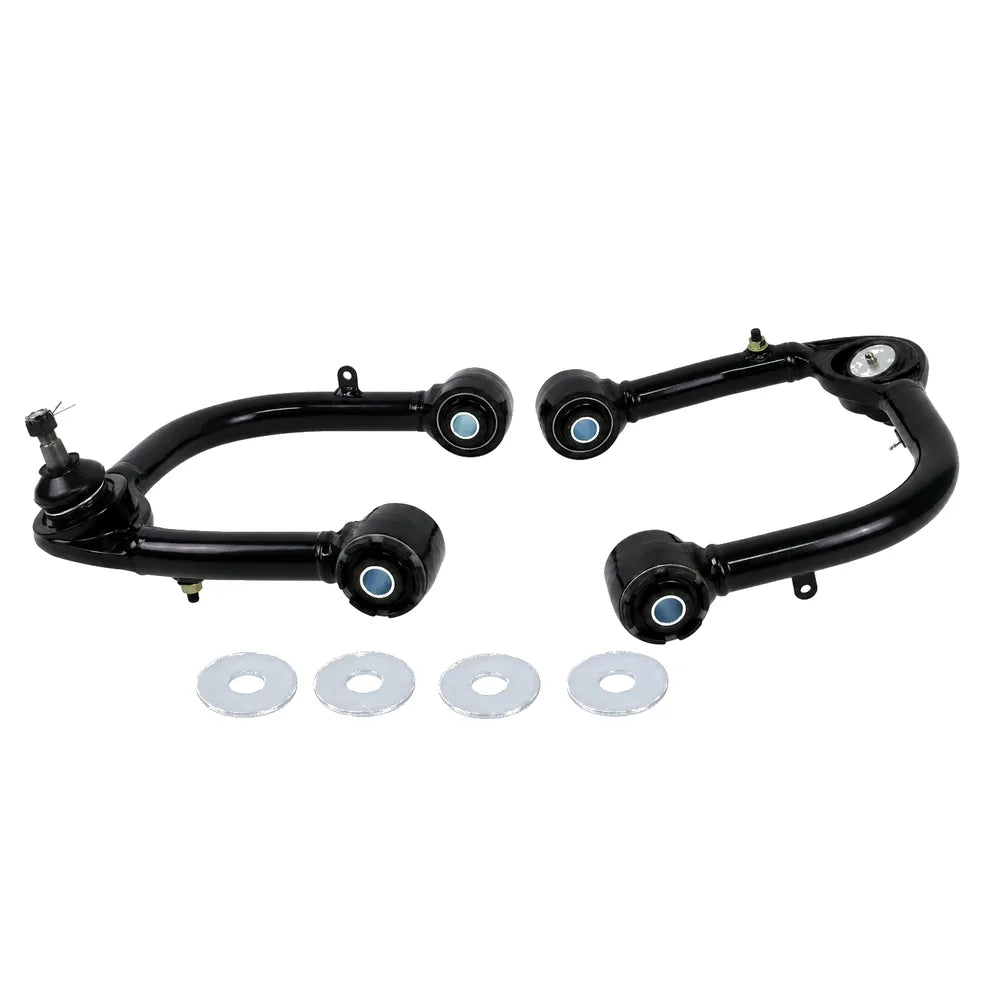

Lifting an IFS platform like the 200 series Land Cruiser or LX570 pushes the factory upper control arm geometry out of range, leaving excess negative camber and reduced caster along with tight ball joint and coilover clearance. This Whiteline KTA246 offset upper control arm is engineered as a complete solution for vehicles lifted between roughly 30mm and 70mm, correcting alignment geometry while adding clearance and articulation.
Key Features
- All in one offset upper control arm designed for lifted applications
- Adds approximately 2.5 to 3.5 degrees of positive caster at a 50mm lift
- Reduces negative camber by up to 1.5 degrees at a 50mm lift
- Increases clearance to the coilover strut at ride and droop height
- Uses maintenance free GIIRO bushing technology for smoother articulation
- KTA246 restores proper alignment range that stock arms cannot provide once lifted
Fitment
| Year Range | Make | Model |
|---|---|---|
| 2008-2020 | Toyota | Land Cruiser |
| 2008-2020 | Lexus | LX570 |
Specifications
| Detail | Value |
|---|---|
| Manufacturer | Whiteline |
| MPN | KTA246 |
| UPC | Not Published |
| Position | Front Upper Control Arm |
| Bushing Type | GIIRO Maintenance Free |
| Lift Range Supported | 30mm to 70mm |
| Kit Contents | 2 Control Arms |
What's Included

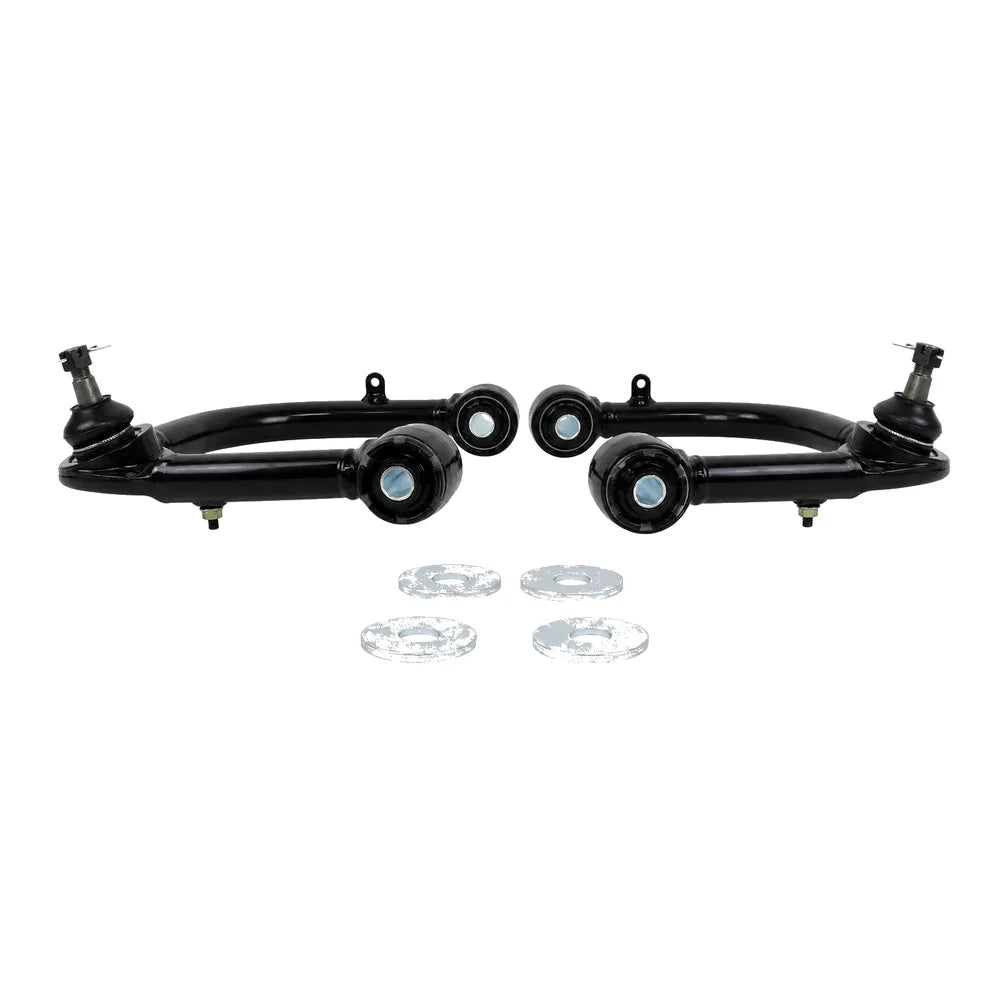

- 2 front upper control arms with integrated GIIRO bushings
About Whiteline
Whiteline designs and manufactures suspension components engineered to sharpen handling while preserving daily drivability. Their control arm and bushing solutions are formulated to outperform factory rubber, restoring correct alignment geometry and long term durability even after suspension modifications.
FAQ
What is the KTA246?The KTA246 is a Whiteline offset front upper control arm designed to correct alignment geometry on lifted Toyota Land Cruiser and Lexus LX570 vehicles.
How much lift does this control arm support?It is designed for vehicles lifted between approximately 30mm and 70mm, with published alignment figures based on a 50mm lift.
Will this fix camber issues after installing a lift kit?Yes, it reduces negative camber by up to 1.5 degrees at a 50mm lift, helping correct alignment that stock arms cannot compensate for once lifted.
Does it also improve caster?Yes, it adds approximately 2.5 to 3.5 degrees of positive caster at a 50mm lift, improving steering feel and reducing tire wear.
What is GIIRO bushing technology?GIIRO bushings are a maintenance free bushing design used in the KTA246 that improves articulation and durability compared to traditional rubber bushings.
Will this help with strut clearance after a lift?Yes, this control arm increases clearance to the coilover strut at both ride height and full droop, reducing the risk of contact after a lift.
Can I install this kit myself?Installation involves removing the factory upper control arms and replacing them with this new arm, which is best handled by an experienced DIY installer or alignment shop given the alignment work required afterward.
Does installing this kit require a new alignment?Yes, a full four wheel alignment is required after installation to set camber and caster to specification.
Install Instructions
- Raise and safely support the front of the vehicle on jack stands
- Remove the wheel and disconnect the factory upper control arm from the spindle and frame mount
- Remove the factory upper control arm
- Install the Whiteline KTA246 offset upper control arm and torque all fasteners to factory specification
- Reinstall the wheel and lower the vehicle
- Perform a full four wheel alignment to set camber and caster within specification
