Whiteline 2005-2013 Toyota Tacoma Sway Bar - Mount Bushing

Whiteline
WHLW23841
9319924477937
Sway Bar Bushings
5 Units In Stock - Ships Next Business Day
$ 27.88
$ 27.88

Keep Your Tacoma Sway Bar Locked in Place

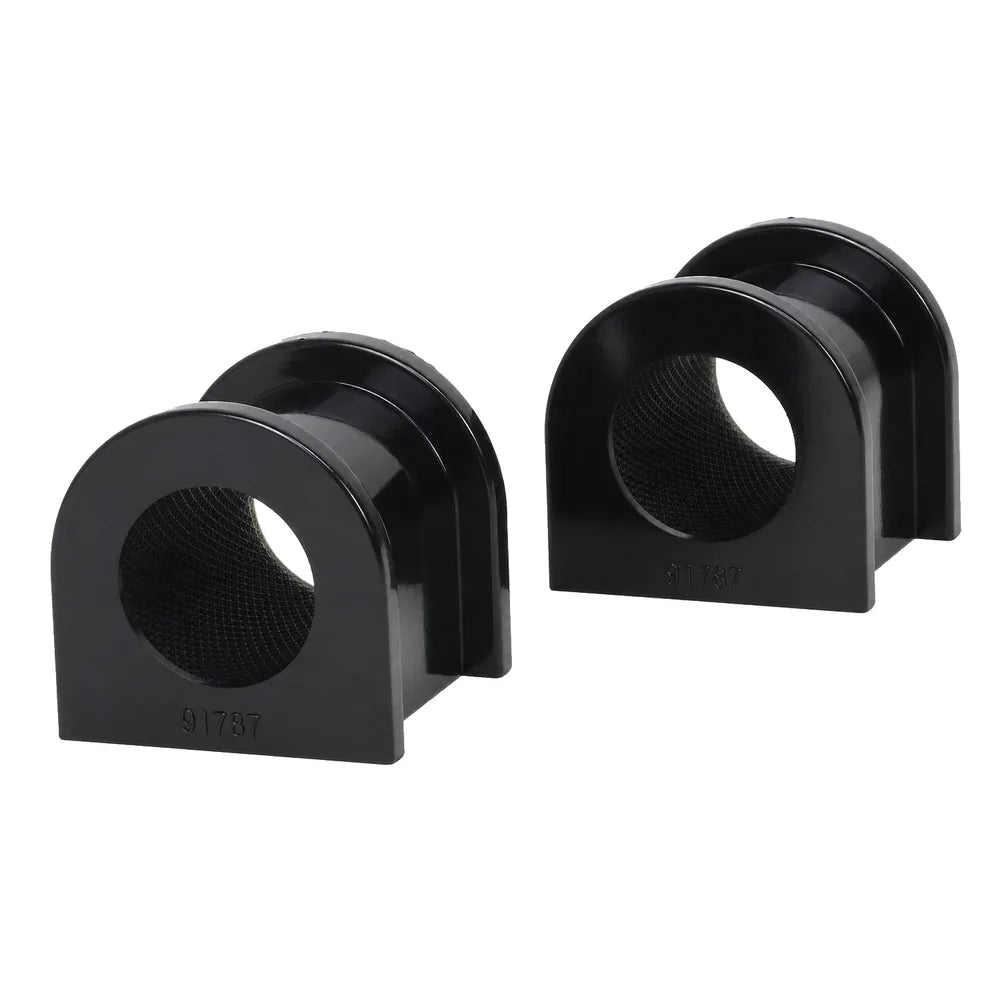

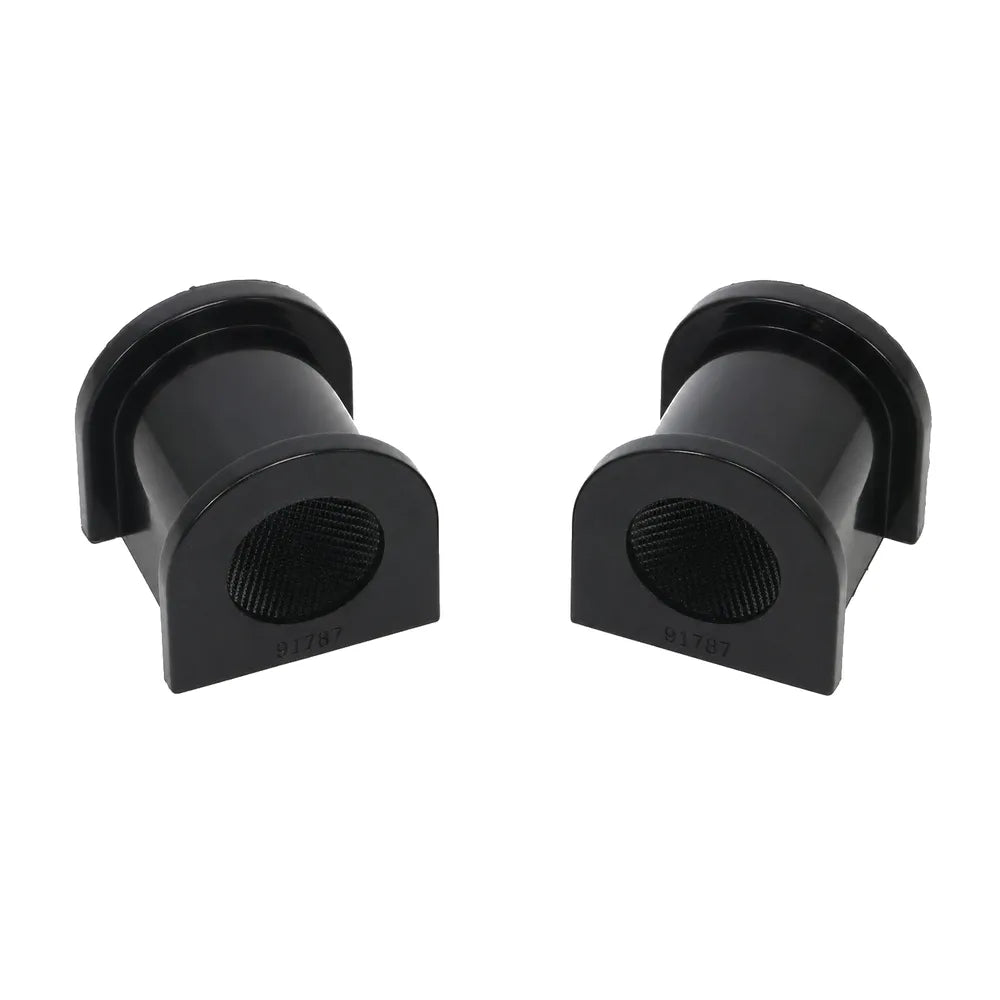

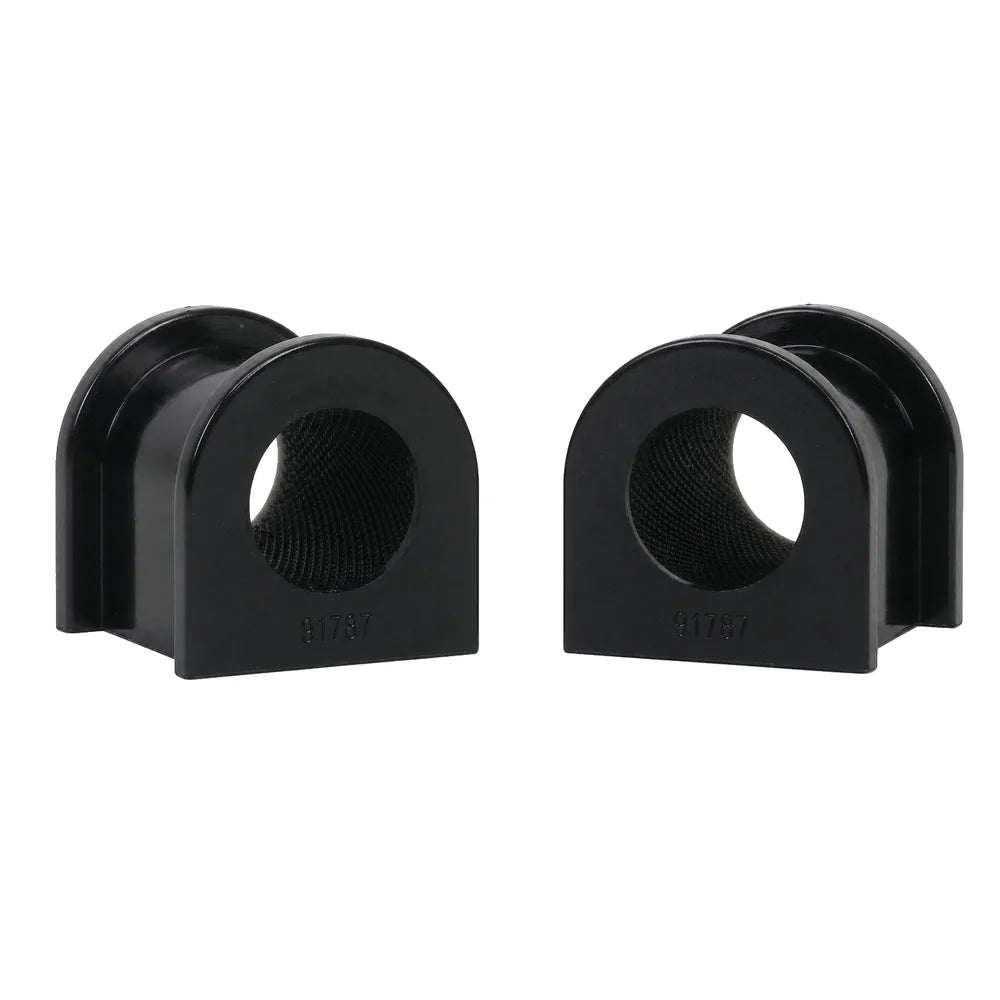

Sway bar mount bushings wear out from years of flexing and grease breakdown, letting the bar shift under load and introducing play into the front suspension. This Whiteline W23841 sway bar mount bushing is sized for a 30mm bar and uses internal bore knurling with grease retention lips to hold the mount tight on your Tacoma.

Key Features

  • Direct replacement sway bar mount bushing, MPN W23841
  • Sized for a 30mm sway bar
  • Latest generation synthetic elastomer resists oil, grease, ozone, and weathering
  • Internal bore knurling and grease retention lips provide continual self lubrication
  • Locks the sway bar in place to reduce play and improve handling consistency
  • Simple, straightforward service item swap

Fitment

Year Range Make Model
2005-2013 Toyota Tacoma

Specifications

Detail Value
Manufacturer Whiteline
MPN W23841
UPC 9319924477937
Bar Diameter 30mm
Material Synthetic Elastomer
Warranty Limited Lifetime

What's Included

  • 2 sway bar mount bushings

About Whiteline

Whiteline engineers sway bar mount bushings with knurled bores and grease retention lips to keep friction low and mounts tight over the long term. Their bushing kits are a simple, effective upgrade for the Tacoma front sway bar.

FAQ

What is the W23841?

The W23841 is a Whiteline sway bar mount bushing sized for a 30mm bar, designed for the Toyota Tacoma.

Why does my sway bar feel loose or clunky?

Worn mount bushings allow the sway bar to shift under load, producing clunks and reducing handling precision.

How do I confirm my sway bar diameter before ordering?

Measure the sway bar directly, the W23841 is sized specifically for a 30mm bar.

Is this a direct bolt in replacement?

Yes, it uses the factory mounting location for a direct installation.

Does this include grease?

The internal bore knurling and grease retention lips are designed for continual self lubrication once installed with a compatible grease.

Will this improve handling on my Tacoma?

Yes, locking the sway bar in place reduces play and improves consistency during cornering.

Does this kit include mounting hardware?

This kit includes the bushings, factory mounting brackets and hardware are reused.

How often should sway bar mount bushings be replaced?

Inspect them whenever you hear clunking or notice looseness in the front suspension, and replace as a common service item.

Install Instructions

  1. Raise and safely support the front of the vehicle on jack stands
  2. Remove the sway bar mount bracket bolts
  3. Remove the factory sway bar mount bushings
  4. Install the Whiteline bushings and reinstall the mount brackets
  5. Torque all fasteners to factory specification and lower the vehicle
