SKU: 220-17288

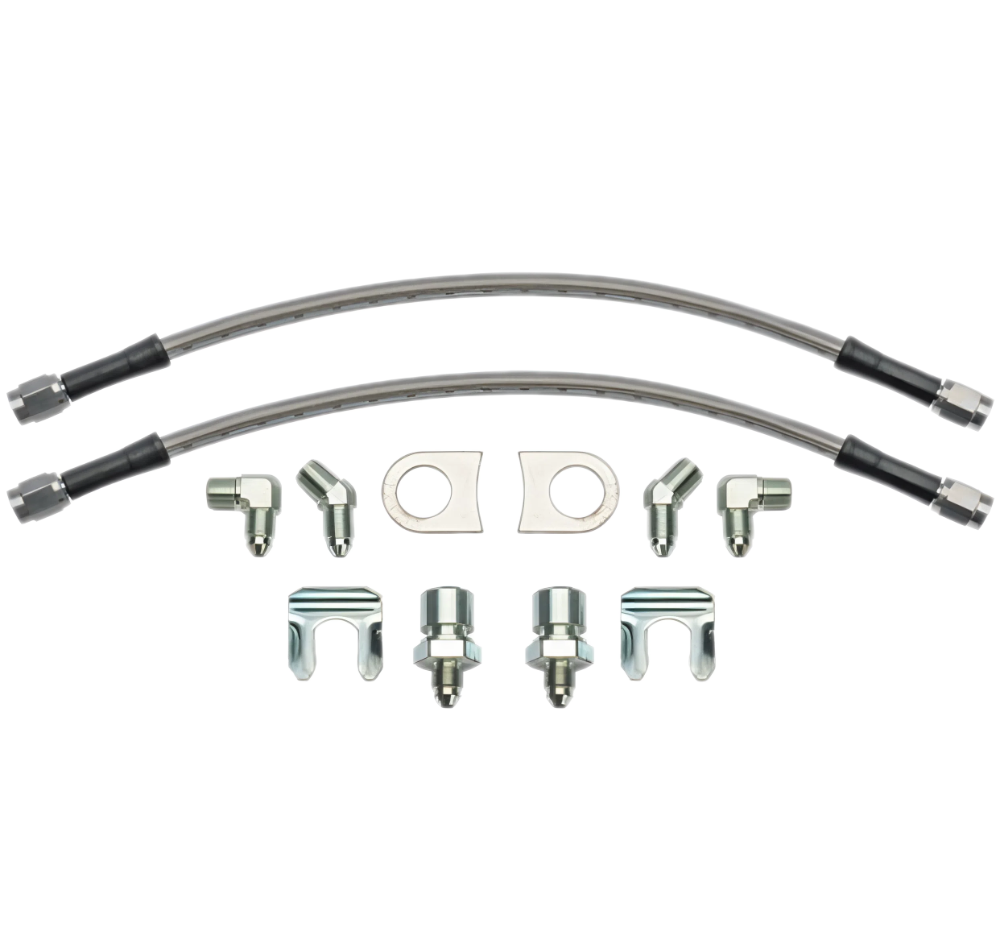

Wilwood Brake Flexline Kit, 12-Inch, -3 AN to 3/8-24 IF with 1/8-27 NPT 90-Degree Fitting and Weld-On Bracket Tabs
The Wilwood Brake Flexline Kit, a meticulously engineered 12-inch stainless steel braided hose designed for precision, durability, and seamless integration. Crafted to deliver a firm, responsive brake pedal feel, this DOT-approved kit is the go-to choice for enthusiasts and professionals seeking reliable, high-quality brake line performance. Whether you’re upgrading a classic car, building a custom project, or enhancing a performance vehicle, this flexline kit ensures consistent braking power and long-lasting dependability.
Why Choose the Wilwood?
The Wilwood 220-17288 stands out as the best choice for customers prioritizing performance, compatibility, and ease of installation. Its stainless steel braided construction resists abrasion, corrosion, and expansion under high pressure, ensuring a direct, hard-line pedal feel that enhances braking precision. The included weld-on bracket tabs simplify installation, making it a practical solution for a wide range of vehicles. This kit is designed to replace outdated OE rubber hoses, providing a robust, leak-free connection that performs under demanding conditions.
Detailed Specifications
- Part Number: 220-17288
- Length: 12 inches
- Hose Type: -3 AN (AN3) stainless steel braided
- Inlet Fitting: -3 AN female, straight
- Outlet Fitting: -3 AN female, straight
- Caliper Fitting: 1/8-27 NPT, 90-degree angle
- Chassis Fitting: -3 AN to 3/8-24 Inverted Flare (IF)
- Additional Components: Includes weld-on bracket tabs for secure mounting
- Material: Stainless steel braided hose with PTFE lining for durability and smooth fluid flow
- Compliance: DOT-approved for street and performance use
- Weight: Approximately 0.5 lbs
- Shipping Dimensions: Not explicitly listed on Wilwood’s site, but typical packaging for similar kits is approximately 10” x 6” x 2”
What’s Included in the Purchase
- One (1) 12-inch stainless steel braided flexline hose (Part #220-17288)
- -3 AN to 3/8-24 IF chassis fitting
- 1/8-27 NPT 90-degree caliper fitting
- Weld-on bracket tabs for secure installation
- All necessary fittings for a complete, ready-to-install solution
Vehicle Fitment
The Wilwood 220-17288 Flexline Kit is a universal brake hose solution designed for compatibility with a wide range of vehicles, particularly those equipped with Wilwood disc brake systems. While Wilwood’s official site (wilwood.com) does not list specific year, make, and model fitment for this universal kit, it is engineered for custom applications and aftermarket brake upgrades. Below are examples of vehicles commonly paired with this kit based on its design and customer feedback from various sources:
- Ford F100 (1967-1972): Ideal for Wilwood disc brake conversion kits
- Chevrolet Impala (1966): Confirmed fitment with Wilwood front disc brake kits
- Cadillac (1957): Praised for compatibility with upgraded Wilwood brakes
- Custom Builds and Universal Applications: Suitable for vehicles requiring a 12-inch flexline with -3 AN to 3/8-24 IF fittings and 1/8-27 NPT caliper connection
For precise fitment, verify your vehicle’s brake system specifications, including caliper threading and chassis fitting requirements. This kit is commonly used in front or rear brake setups for classic cars, muscle cars, and custom performance vehicles.
Performance Benefits
The Wilwood 220-17288 Flexline Kit delivers unmatched braking performance through its advanced design:
- Stainless Steel Braided Construction: Provides durability and resistance to wear, ensuring long-term reliability.
- PTFE Lined Hose: Minimizes fluid turbulence and maintains consistent brake pressure.
- 90-Degree Caliper Fitting: Facilitates clean routing and reduces stress on the hose in tight spaces.
- Weld-On Bracket Tabs: Ensure secure mounting, reducing vibration and maintaining alignment.
- DOT Approval: Meets stringent safety standards for street-legal use, offering peace of mind for daily drivers and track enthusiasts alike.
Installation and Compatibility
This flexline kit is designed for straightforward installation, particularly when paired with Wilwood disc brake kits. The included weld-on bracket tabs allow for custom mounting, making it adaptable to various chassis configurations. The -3 AN to 3/8-24 IF chassis fitting and 1/8-27 NPT 90-degree caliper fitting ensure compatibility with most Wilwood calipers and many aftermarket brake systems. Always confirm thread sizes and hose length requirements for your specific application to ensure a perfect fit.
Why This Kit Stands Out
Unlike other brake hose options, the Wilwood 220-17288 combines a compact 12-inch length with versatile fittings and robust construction, making it ideal for tight spaces and high-performance setups. Its universal design caters to a broad range of vehicles, from vintage restorations to modern custom builds, while the included weld-on tabs simplify installation.
