Add sustained heat capacity for towing, larger tires, and hard braking

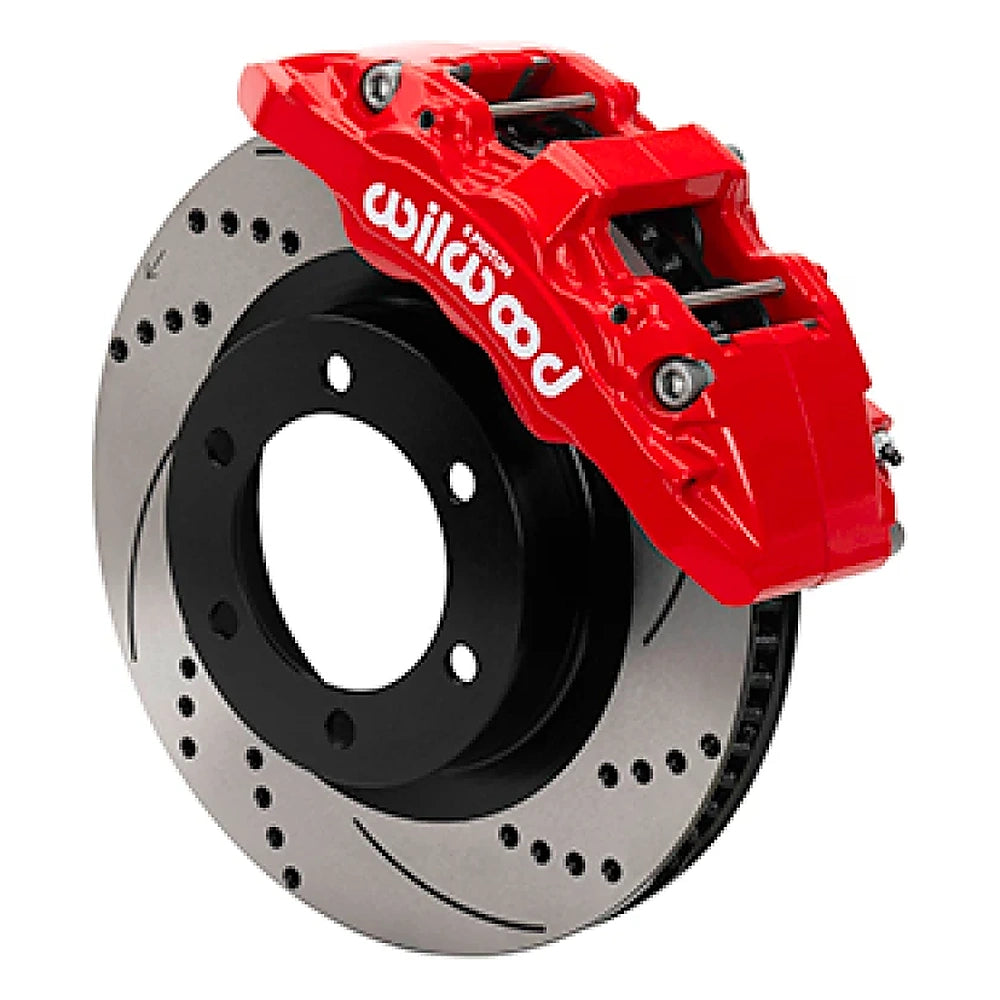

Wilwood 140-17528-DR pairs six-piston AERO6-DM calipers with large one-piece SRP rotors for the front axle. The direct-mount system is engineered to work with the listed Toyota applications, the original master-cylinder output, and ABS function while adding thermal capacity for heavy use.
Key Features
- Wilwood 140-17528-DR: Six-piston AERO6-DM direct-mount calipers finished in red powder coat
- 13.56 x 1.30-inch SRP drilled and slotted iron rotors
- Forty-eight directional cooling vanes support sustained heat management
- BP-22 brake pads provide a street-performance friction package
- Stainless steel front flexline kit is included
- Compatible with OE master-cylinder output and ABS on the listed applications
- Lug-mount caliper design uses the factory disc spindle
Fitment
Use Wilwood 140-17528-DR only for the applications below. Confirm every listed qualifier and exclusion.
| Years | Make | Model | Details |
|---|---|---|---|
| 2022-2024 | Toyota | Tundra | 2WD or 4WD; front axle; factory disc spindle; 17-inch minimum wheel subject to Wilwood clearance template; Excludes: Wheel combinations that do not pass the Wilwood clearance diagram |
| 2022-2024 | Toyota | Land Cruiser 300 | front axle; factory disc spindle; 17-inch minimum wheel subject to Wilwood clearance template; Excludes: Wheel combinations that do not pass the Wilwood clearance diagram |
Specifications
| Detail | Value |
|---|---|
| Brand | Wilwood |
| Manufacturer Part Number | 140-17528-DR |
| Product Type | Big Brake Kits |
| Position | Front axle |
| Caliper | AERO6-DM, six piston, red powder coat |
| Piston Material | Stainless steel |
| Rotor | SRP drilled and slotted iron rotor with black electro coat |
| Rotor Size | 13.56 x 1.30 inches |
| Rotor Vane Count | 48 directional vanes |
| Pad Compound | Wilwood BP-22 |
| Minimum Wheel Diameter | 17 inches; verify the current wheel-clearance template |
| UPC | 889545113617 |
| Front Line Kit | 220-17529 |
What's Included
- Left and right red six-piston calipers for Wilwood 140-17528-DR
- Left and right SRP drilled and slotted rotors
- BP-22 brake pads
- Caliper mounting hardware
- Stainless steel front flexline kit
- Not included: Wheels and tires
- Not included: Brake fluid
- Not included: Tools and service consumables
About Wilwood
Wilwood engineers performance braking systems in Camarillo, California, with application-specific calipers, rotors, hydraulics, and installation hardware supported by technical drawings and service components.
Related Parts
- Use Wilwood replacement pads, rotor assemblies, seal components, and line hardware only after confirming they are listed for this exact AERO6-DM kit.
FAQ
What is the 140-17528-DR?It is a front big-brake kit with six-piston red calipers and drilled and slotted rotors built for increasing front-brake capacity on the listed Toyota trucks and SUVs.
What does this part fit?Wilwood lists 2022-2024 Toyota Tundra 2WD and 4WD models and the 2022-2024 Toyota Land Cruiser 300. Wheel clearance must pass the current Wilwood template.
What is included?The kit includes two calipers, two rotors, pads, mounting hardware, and the specified stainless steel front line kit.
What is it made from?The kit combines aluminum calipers, stainless pistons, and dynamically balanced iron rotors.
Is professional installation recommended?Installation should be performed by a technician experienced with hydraulic disc-brake systems, followed by proper bleeding and pad bedding.
Does it require additional parts?Review the package contents and installation notes before beginning because vehicle condition and surrounding components can require service items not included in the package.
What warranty applies?Use Wilwood's current limited warranty terms and exclusions.
What should be checked before use?Confirm the application, mating interfaces, clearances, fastener security, and safe operation before returning the vehicle or system to service.
Installation Instructions
- Confirm the vehicle application and test the exact wheel with Wilwood's current clearance diagram before disassembly.
- Have an experienced brake technician support the vehicle, remove the original front brake components, and trim the dust shield where required by the instructions.
- Install the calipers, rotors, mounting hardware, pads, and supplied flexlines in the positions shown in Wilwood's assembly instructions.
- Bleed the hydraulic system with compatible fresh brake fluid, torque all fasteners to specification, and check hose routing through full steering and suspension travel.
- Bed the pads and rotors using Wilwood's current procedure, then verify pedal feel, leak-free operation, wheel clearance, and safe braking before road use.
California Proposition 65 Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. Wilwood identifies this warning as applicable to the brake pads.
