SKU: 260-14960-BK

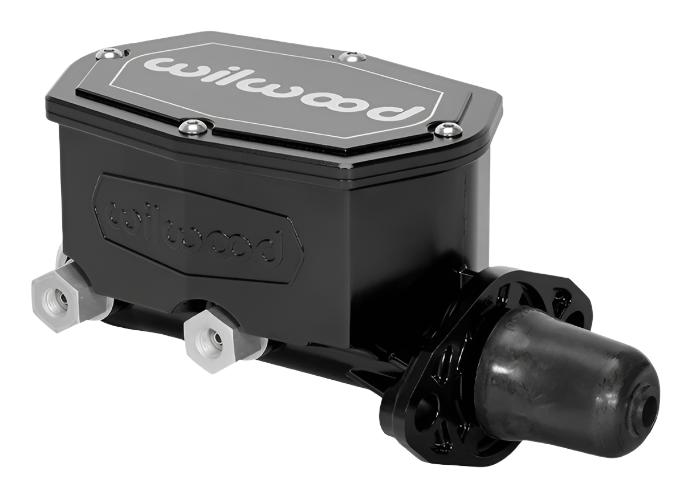

Wildwood Compact Tandem Master Cylinder
Wilwood’s Compact Tandem Master Cylinder is available in 2 bore sizes 1.00” and 1-1/8” and 2 finishes; ball burnished and black e-coat. The 1” bore can be used in manual and power assisted applications and does not come with a pushrod. The 1-1/8” bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see retrofit kits PN 260-14248 for L/H outlets, or 260-15667 for R/H outlets.
|
Additional Dimensions |
|
|
Overall Length(in) |
7.16" |
|
Flange to End Length (in) |
6.55" |
|
Inlet Size (in) |
|
|
Inlet Fit (in) |
|
|
Outlet Size 1 (in) |
1/2-20 |
|
Outlet Fit 1 (in) |
3/8-24 IF or 1/2-20 IF |
|
Outlet Size 2 (in) |
1/2-20 |
|
Outlet Fit 2 (in) |
3/8-24 IF or 9/16-18 IF |
|
Master Cylinder Dimensions |
|
|
Bore Size |
1-1/8" |
|
Area (in²) |
0.970 |
|
Stroke |
1.10 |
|
Volume (cu in) |
|
|
Master Cylinder Description |
|
|
Type |
Tandem Outlet |
|
Outlets |
2 |
|
Material |
Aluminum |
|
Finish |
Black E-coat |
|
Reservoir |
|
|
Res Type |
Integral |
|
Res Size (oz) |
7.8 / 4.7 |
|
Res Size(cu in) |
14.0 / 8.5 |
|
Rate |
|
|
UPC Number |
|
|
UPC |
889545085518 |
