SKU: 220-17289 / UPC: 889545110937

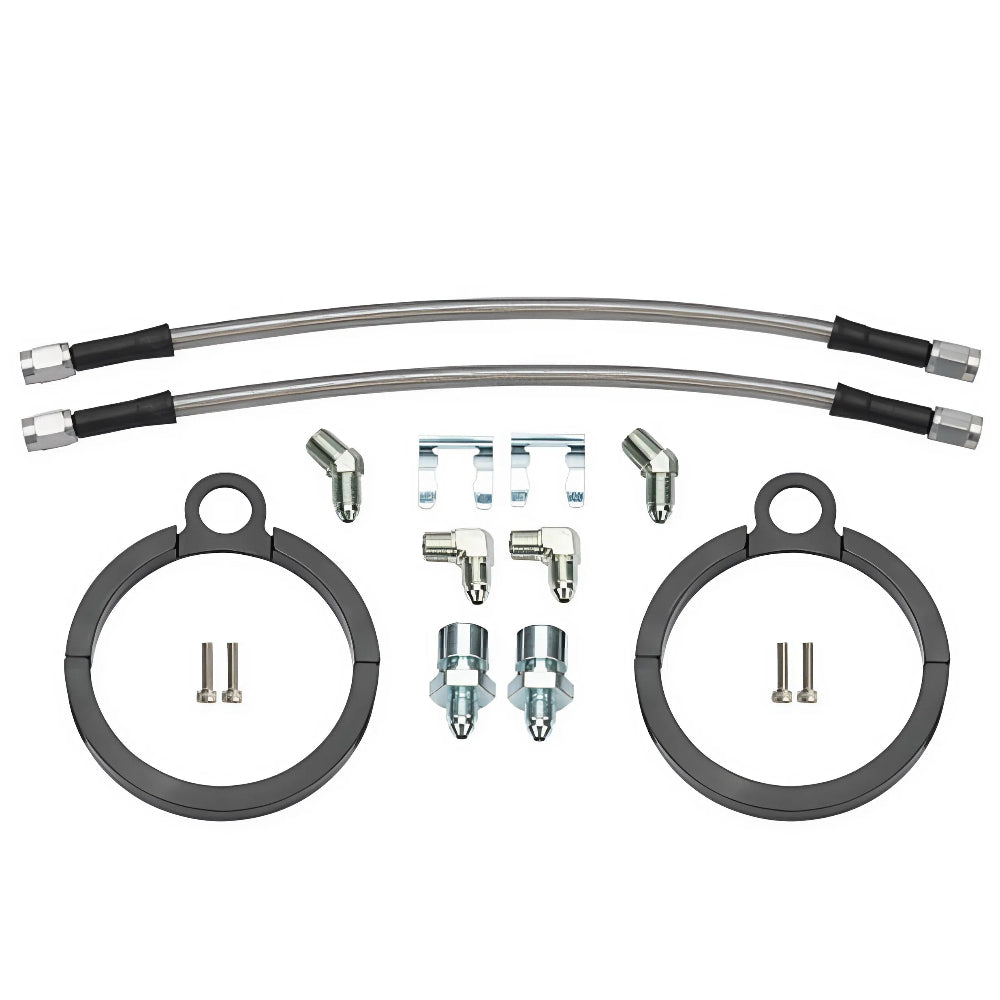

Wilwood Flexline Brake Hose Kit - 12-Inch, -3AN, 3/8-24 IF to 1/8-27 NPT 90-Degree
The Wilwood Flexline Brake Hose Kit, a high-performance solution designed for precision braking and reliable fitment across a range of vehicles. Crafted with stainless steel braided construction, this DOT-approved kit delivers consistent brake pedal feel and durability, making it the ideal choice for enthusiasts and professionals seeking quality and performance for their braking system upgrades. Engineered to replace OE rubber hoses, this kit ensures enhanced brake response and longevity, tailored for specific Wilwood disc brake applications.
Why Choose the Wilwood?
This kit stands out for its meticulous design and robust materials, providing a firm, responsive brake pedal feel that meets the demands of high-performance driving. The stainless steel braiding resists expansion under pressure, ensuring precise brake modulation, while the included fittings simplify installation for a seamless upgrade. Whether you're upgrading a classic Ford, Chevy, or Dodge, this kit is built to perform reliably in demanding conditions, offering peace of mind and consistent braking performance.
What’s Included in the Purchase?
- Two -3AN x 12-inch Stainless Steel Braided Flexlines: Durable, high-quality hoses designed to withstand high-pressure braking systems.
- Caliper Fittings: 1/8-27 NPT 90-degree fittings for secure connection to Wilwood calipers.
- Chassis Fittings: -3AN to 3/8-24 IF (Inverted Flare) fittings for compatibility with 3/16-inch chassis hardlines.
- Weld-On Bracket Tabs: Two tabs for secure mounting, preventing vibration and ensuring a stable connection between hardlines and flexlines.
- Hardware: All necessary fittings and components for a complete installation.
Specifications
- Hose Length: 12 inches
- Hose Size: -3AN
- Inlet Fitting: -3AN Female, Straight
- Outlet Fitting: -3AN Female, 90-degree with 1/8-27 NPT caliper thread
- Chassis Fitting: -3AN to 3/8-24 IF (Inverted Flare)
- Material: Stainless steel braided with PTFE lining
- Compliance: DOT-approved for street and track use
- Weight: Approximately 0.5 lbs.
- Shipping Dimensions: Approximately 5.38" L x 2.49" W x 1.41" H.
Vehicle Fitment
The Wilwood Flexline Kit (SKU: 220-17289) is designed for universal applications with Wilwood disc brake kits, particularly suited for vehicles requiring a 12-inch flexline with -3AN fittings and 1/8-27 NPT 90-degree caliper connections. While specific vehicle fitment is not explicitly listed for this SKU on Wilwood’s official site, similar kits (e.g., SKU 220-11237) are noted for compatibility with vehicles like:
- Ford F100 (1967-1972): Confirmed fitment for Wilwood disc brake conversions
- Other Vehicles: Compatible with various makes and models using Wilwood disc brake kits, such as select Chevy, Dodge, and GM vehicles with matching fitting requirements. For precise fitment, verify your vehicle’s brake caliper and chassis hardline specifications.
Note: Always confirm fitment with your specific Wilwood disc brake kit and vehicle setup, as this kit is application-specific and designed to work with Wilwood calipers requiring 1/8-27 NPT 90-degree fittings.
Installation Instructions
For detailed installation guidance, refer to Wilwood’s official resources or contact their customer service for application-specific instructions. While no direct installation guide for SKU 220-17289 is available on Wilwood’s website, general brake line installation instructions can be found in Wilwood’s technical resources.
Manufacturer Details
Wilwood Engineering, founded in 1977, is a trusted name in high-performance disc brake systems. Their stainless steel braided flexline kits, including SKU 220-17289, are manufactured to stringent quality standards, ensuring reliability for automotive, motorsport, and specialty vehicle applications. These kits are designed to integrate seamlessly with Wilwood disc brake systems, providing a direct replacement for OE rubber hoses with improved performance characteristics.
Why This Kit Stands Out
The Wilwood Flexline Kit (SKU: 220-17289) combines precision engineering, durable materials, and application-specific design to deliver reliable braking performance. Its compact 12-inch length and 90-degree caliper fitting make it a versatile choice for custom brake setups, while the included weld-on tabs ensure a secure installation. Backed by Wilwood’s reputation for quality, this kit is a dependable solution for upgrading your vehicle’s braking system.
