Size Chart
×
SKU: 170-13539

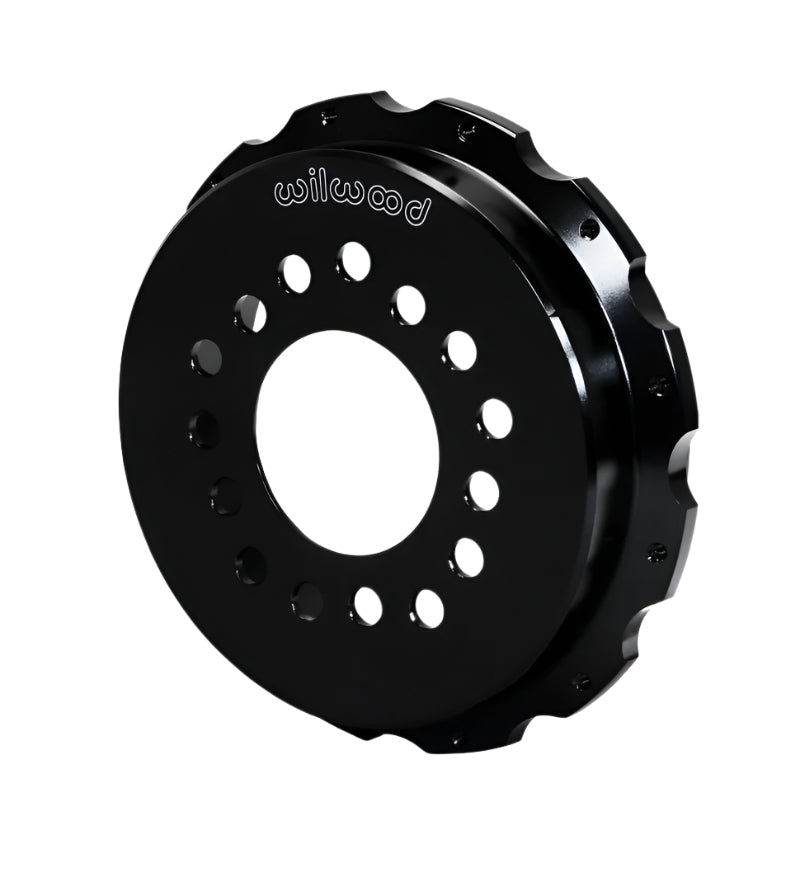

These premium grade aluminum hats are used with Wilwood's internal shoe parking brake kits. Each hat is a precision machined, threaded hole design for use in conjunction with through-hole mount rotors. After machining, the hats are electro-coated for corrosion resistance.
|
Hat Dimensions |
|
|
Mount Hole Type |
Threaded |
|
Rotor Bolt Circle (in) |
12 x 8.75 |
|
Hat Offset (in) |
1.540 |
|
Center Reg. (in) |
3.06 |
|
Hat Type |
|
|
Material |
Aluminum |
|
Mount Style |
Fixed Mount |
|
Finish |
Black E-Coat |
|
Weight (lbs) |
3.900 |
|
Bolt Circle Dimensions |
|
|
Hat Bolt Circle 1 |
5 x 4.50 |
|
Hat Bolt Circle 2 |
5 x 4.75 |
|
Hat Bolt Circle 3 |
5 x 5.00 |
|
UPC Number |
|
|
UPC |
889545042214 |
|
Application Info |
|
|
Application Note |
BB Parking Brake Kits |
|
Hat Bolt Kit Part # |
230-8008 |
|
Application Note |
|
|
Application Note |
|
Parking Brake Hat - Standard - Product Description
These premium grade aluminum hats are used with Wilwood's internal shoe parking brake kits. Each hat is a precision machined, threaded hole design for use in conjunction with through-hole mount rotors. After machining, the hats are electro-coated for corrosion resistance.
Rotor Hat Dimensions

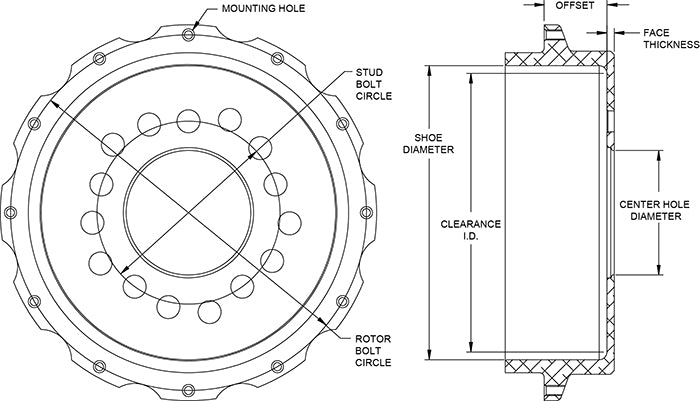

Parking Brake Hat - Standard Hat Drawing
|
Additional Hat Dimensions |
|
|
Rotor Mount Hole Size (in) |
1/4-20 |
|
Shoe I.D. (in) |
7.23 |
|
Clearance I.D. (in) |
6.85 |
|
Face Thickness (in) |
0.18 |
|
Hat Stud Diamenter - BC 1 (in) |
0.520 |
|
Hat Stud Diamenter - BC 2 (in) |
0.520 |
|
Hat Stud Diamenter - BC 3 (in) |
0.520 |
Additional Notes
3.06 " diameter register with counterbore for register ring.
