SKU: 140-17697 | UPC: 889545117165

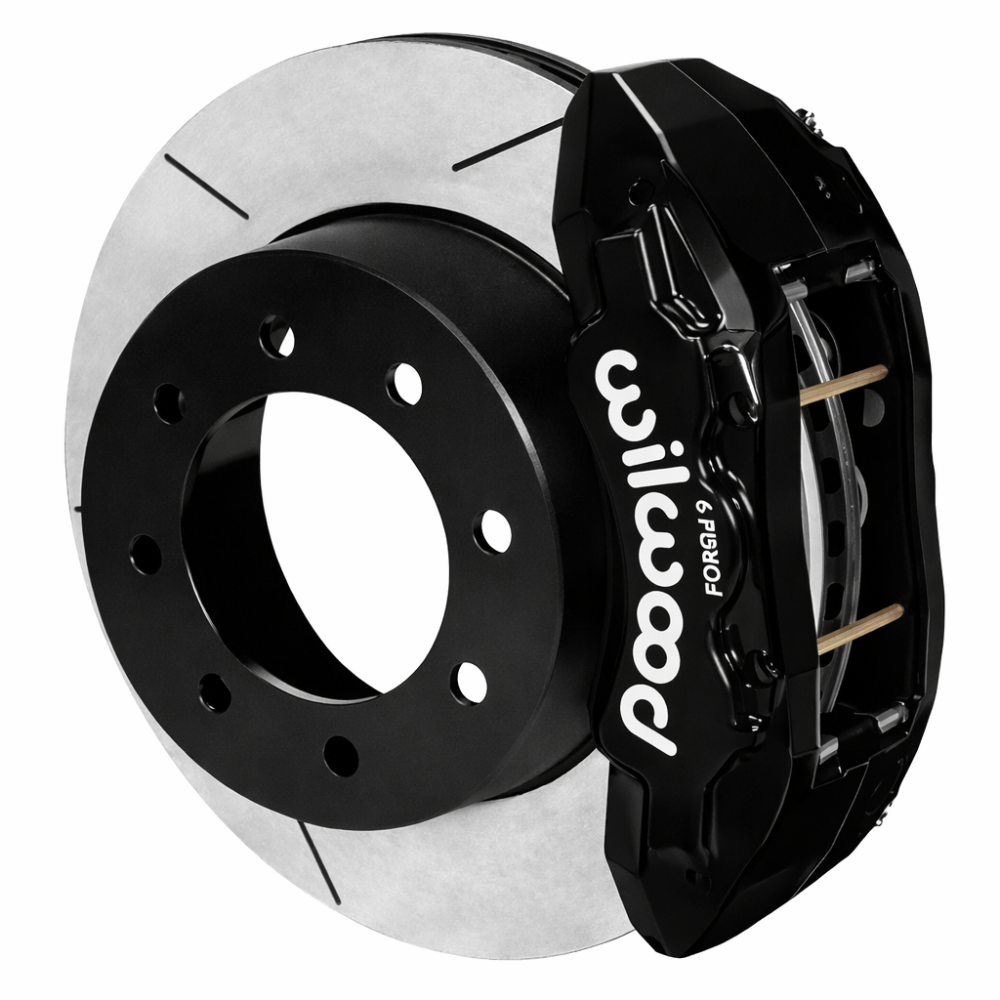

Wilwood TX6-DM Rear Big Brake Kit 15.50" GTB Grooved Black for 2023+ Ford F-250/F-350 4WD
The Wilwood 140-17697 TX6-DM Rear Big Brake Kit is a complete high-performance braking solution engineered specifically for the 2023+ Ford F-250 and F-350 Super Duty 4WD trucks. This kit features Wilwood’s powerful TX6-DM 6-piston calipers in black, massive 15.50" GTB grooved rotors, high-friction pads, braided stainless steel lines, and all necessary mounting hardware. Designed for heavy-duty towing, off-road use, and high-performance street driving, the TX6-DM kit delivers dramatically improved stopping power, better heat management, and consistent brake feel even under the most demanding conditions.
Key Features
- TX6-DM 6-Piston Calipers: Differential bore design for even pad pressure and outstanding modulation
- 15.50" GTB Grooved Rotors: Large diameter with grooved surface for superior bite and heat dissipation
- Black Powder Coat Finish: Aggressive styling with excellent corrosion resistance
- Braided Stainless Steel Lines: Included for improved pedal feel and durability
- Complete Bolt-On Kit: Everything needed for a professional installation
- Wilwood Engineering: Proven performance on the toughest trucks and towing applications
Specifications
| Specification | Detail |
|---|---|
| Part Number | 140-17697 |
| Position | Rear (Full Kit – Both Sides) |
| Caliper | TX6-DM 6-Piston (Black) |
| Rotor Size | 15.50" GTB Grooved |
| Compatibility | 2023+ Ford F-250/F-350 Super Duty 4WD |
| Included | Calipers, Rotors, Pads, Braided Lines, Brackets & Hardware |
| Installation | Bolt-On Direct Replacement |
| Country of Origin | United States |
| Warranty | Limited Lifetime (Wilwood) |
| Shipping Weight | Approx. 85 to 95 lbs |
What's Included
- Pair of TX6-DM 6-Piston Black Calipers
- Pair of 15.50" GTB Grooved Rotors
- High-Performance Brake Pads
- Braided Stainless Steel Brake Lines
- Mounting Brackets & All Necessary Hardware
- Installation Instructions
Product Notes
- Designed specifically for 2023+ Ford F-250 and F-350 4WD Super Duty trucks
- Ideal for heavy towing, off-road, and performance upgrades
- Requires 17" or larger wheels for proper clearance
- Professional installation recommended for safety-critical brake work
Installation Notes
- Estimated time: 4 to 6 hours, advanced difficulty
- Bolt-on installation requires removal of factory rear brakes
- Full brake system bleed required after installation
- Professional shop recommended with proper torque specifications
This Part Fits
| Year | Make | Model | Notes |
|---|---|---|---|
| 2023+ | Ford | F-250 Super Duty 4WD | All Trims |
| 2023+ | Ford | F-350 Super Duty 4WD | All Trims |
Why Choose Wilwood TX6-DM Rear Big Brake Kit?
- Massive 15.50" rotors and 6-piston calipers provide exceptional stopping power for heavy trucks
- Includes braided lines and all hardware for a complete, professional upgrade
- Black finish delivers an aggressive, high-end appearance
Frequently Asked Questions
-
Q: Will this kit fit my 2024 Ford F-350 4WD?
A: Yes, the Wilwood 140-17697 is a direct fit for all 2023+ F-250 and F-350 Super Duty 4WD models. -
Q: Does it include braided brake lines?
A: Yes, stainless steel braided lines are included for improved pedal feel. -
Q: What wheel size is required?
A: 17" or larger wheels are required for proper clearance. -
Q: What is the warranty?
A: Covered by Wilwood Limited Lifetime Warranty.
