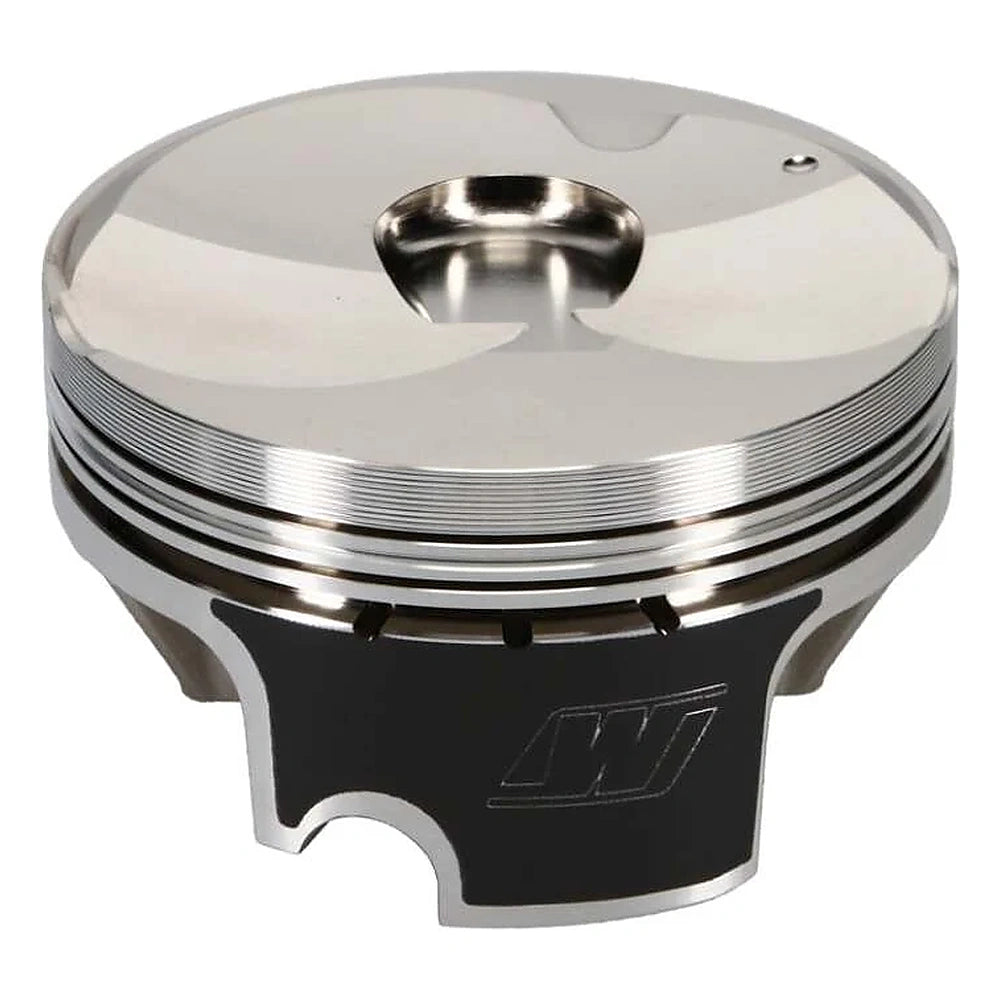

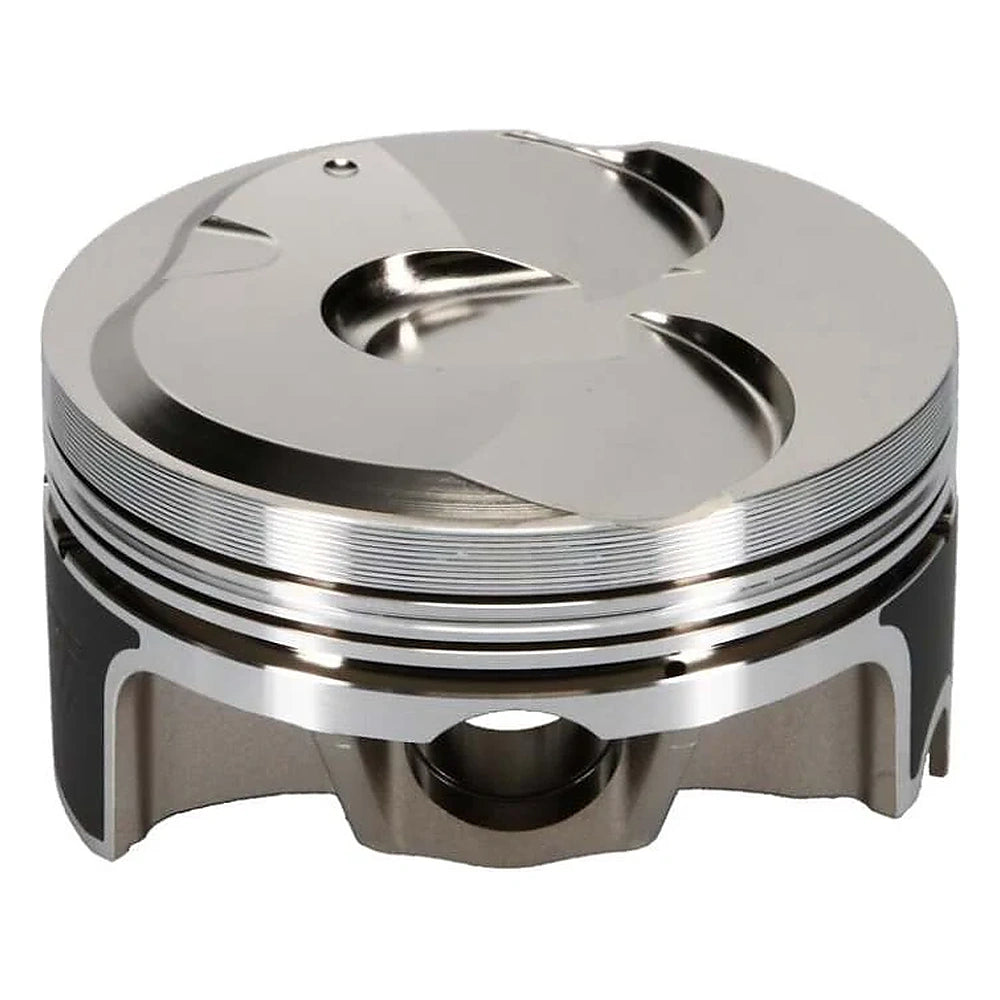

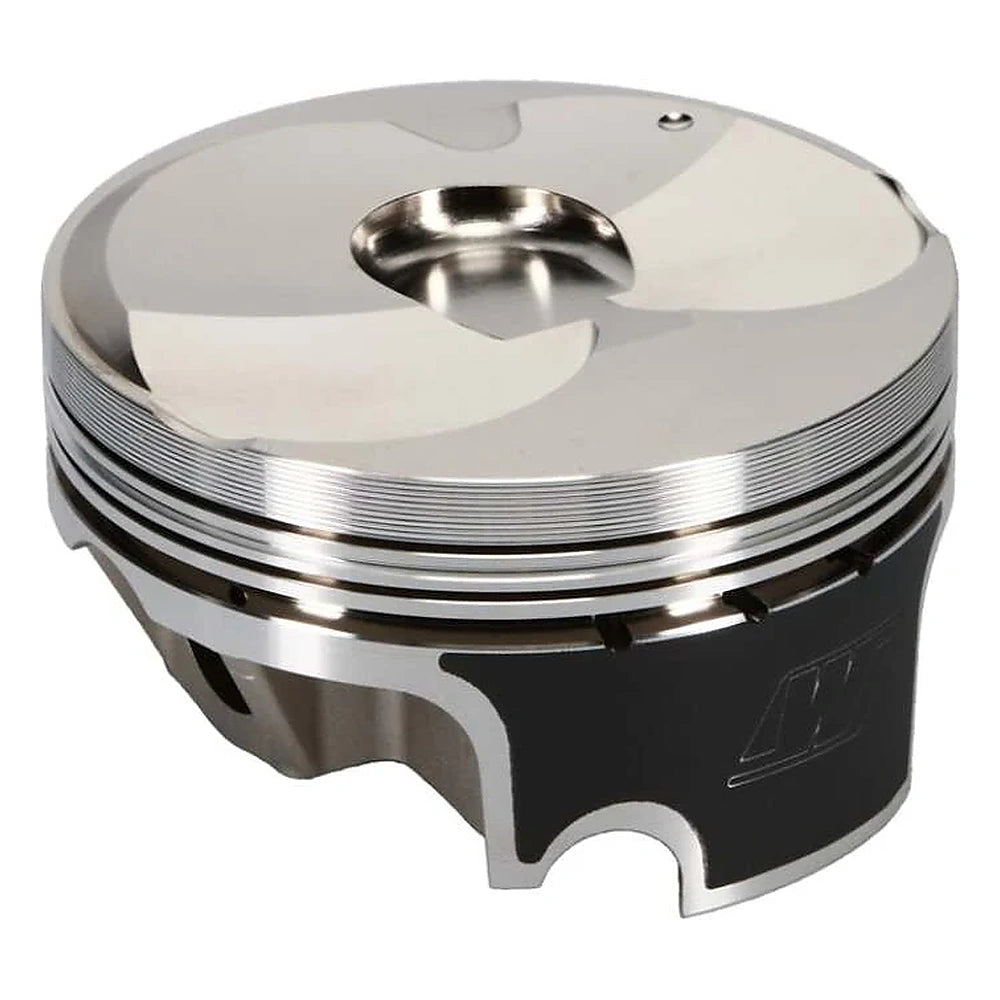

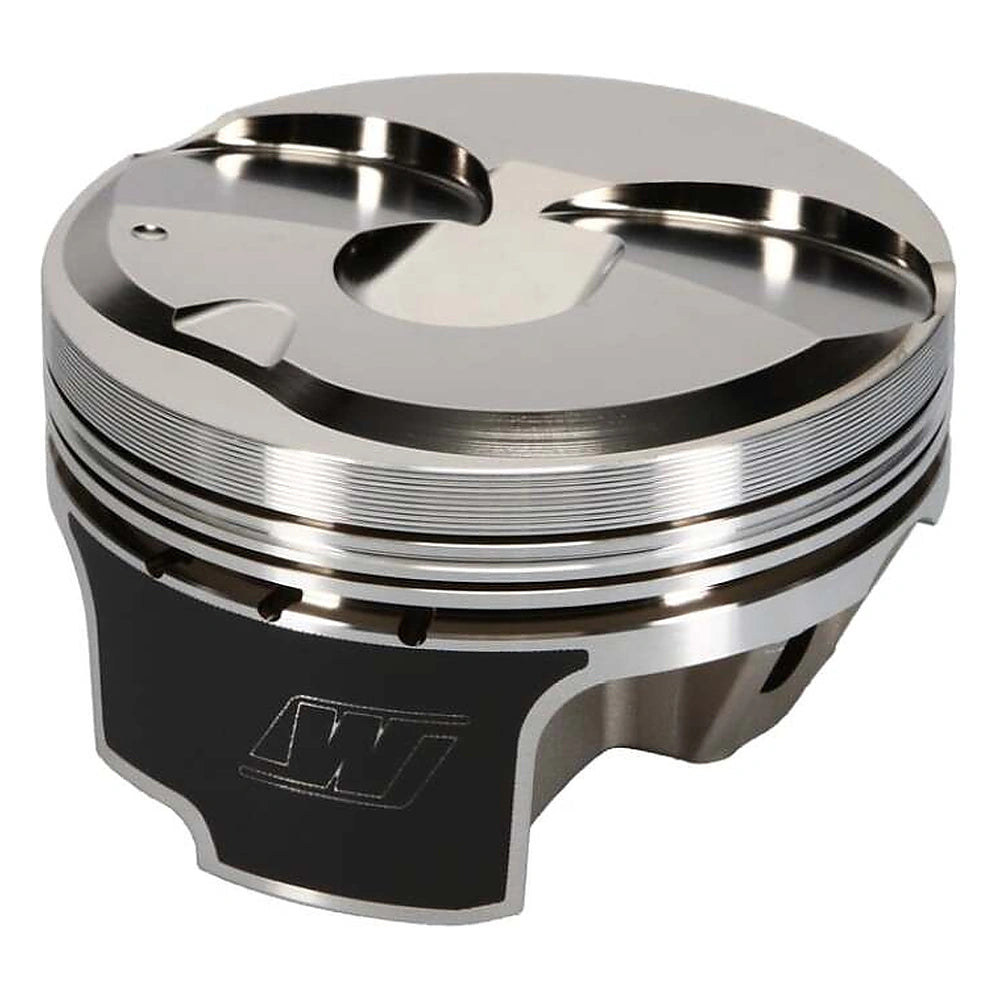

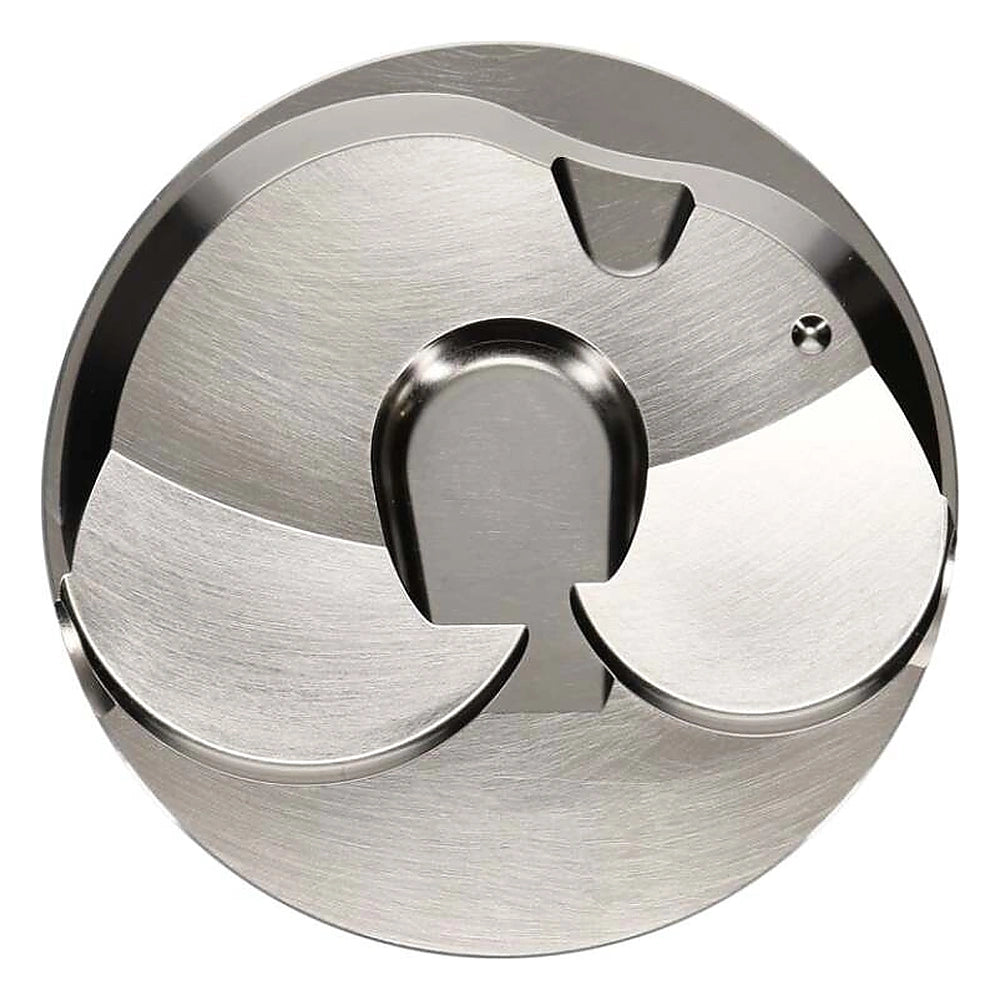

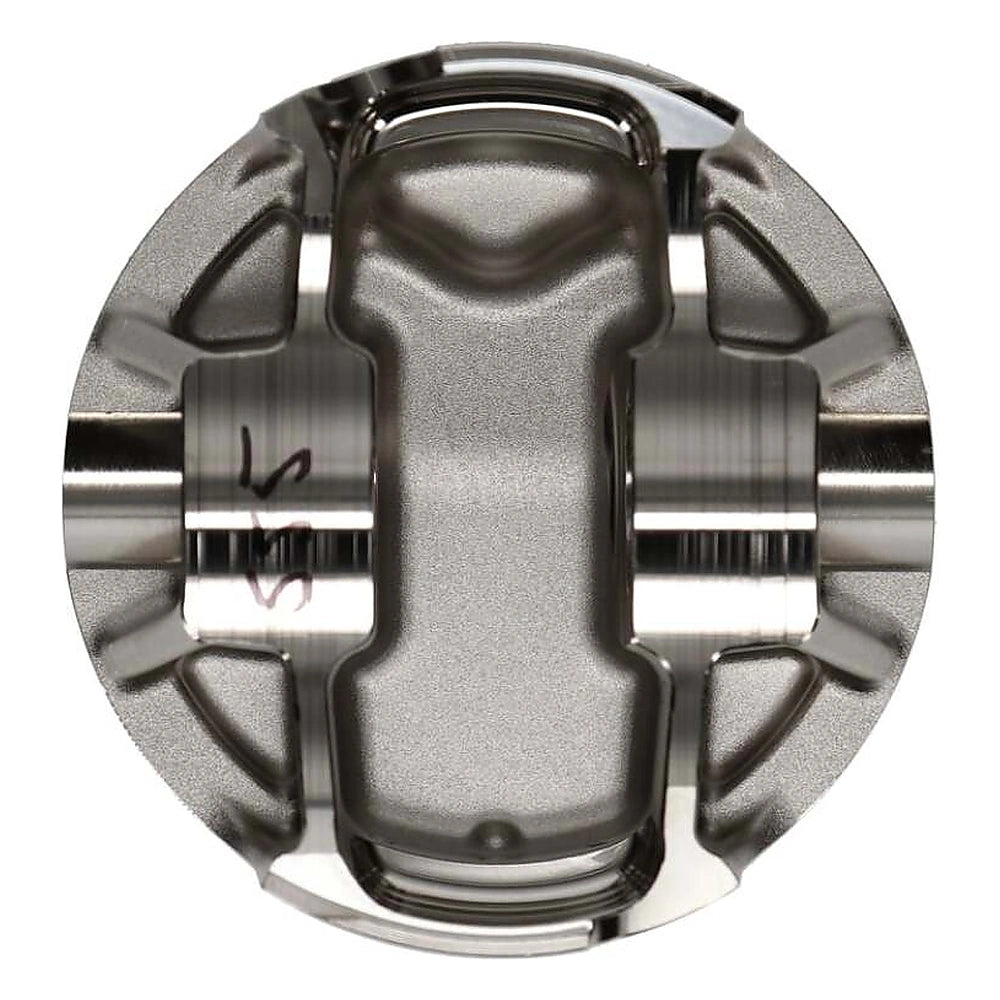

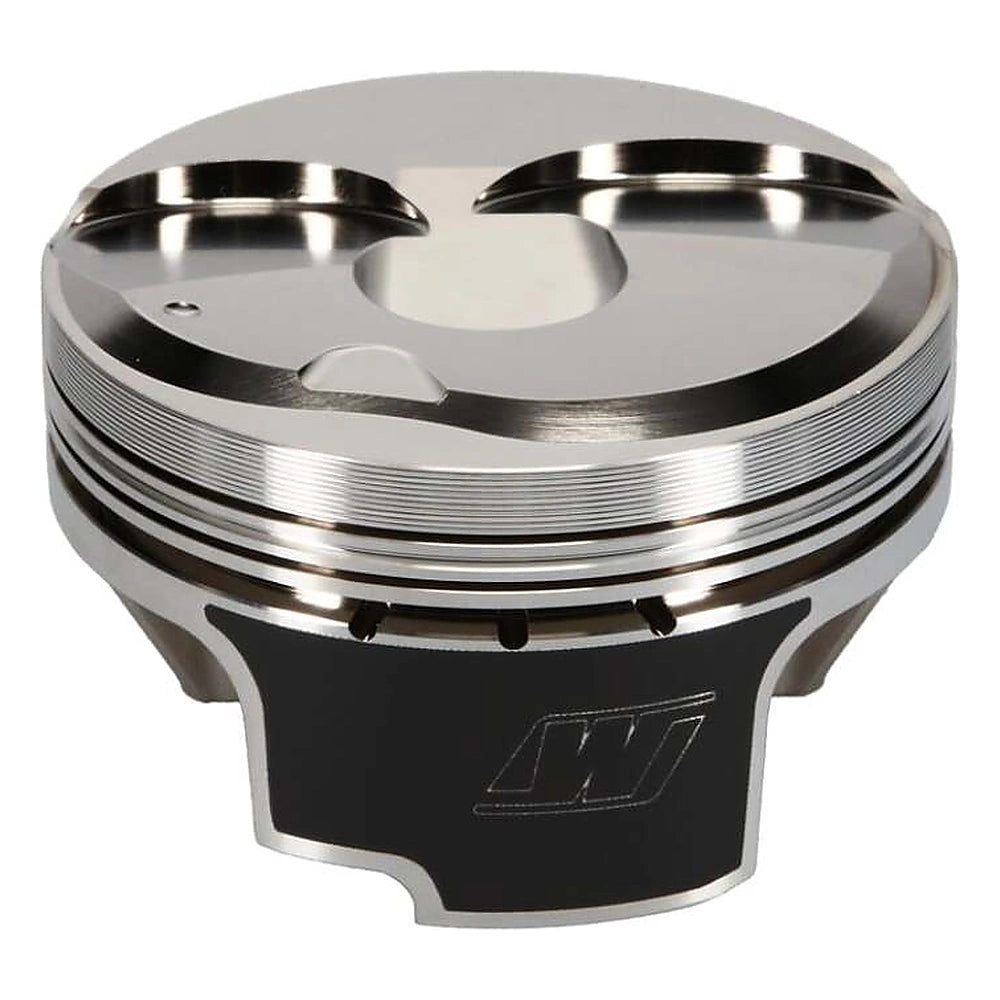

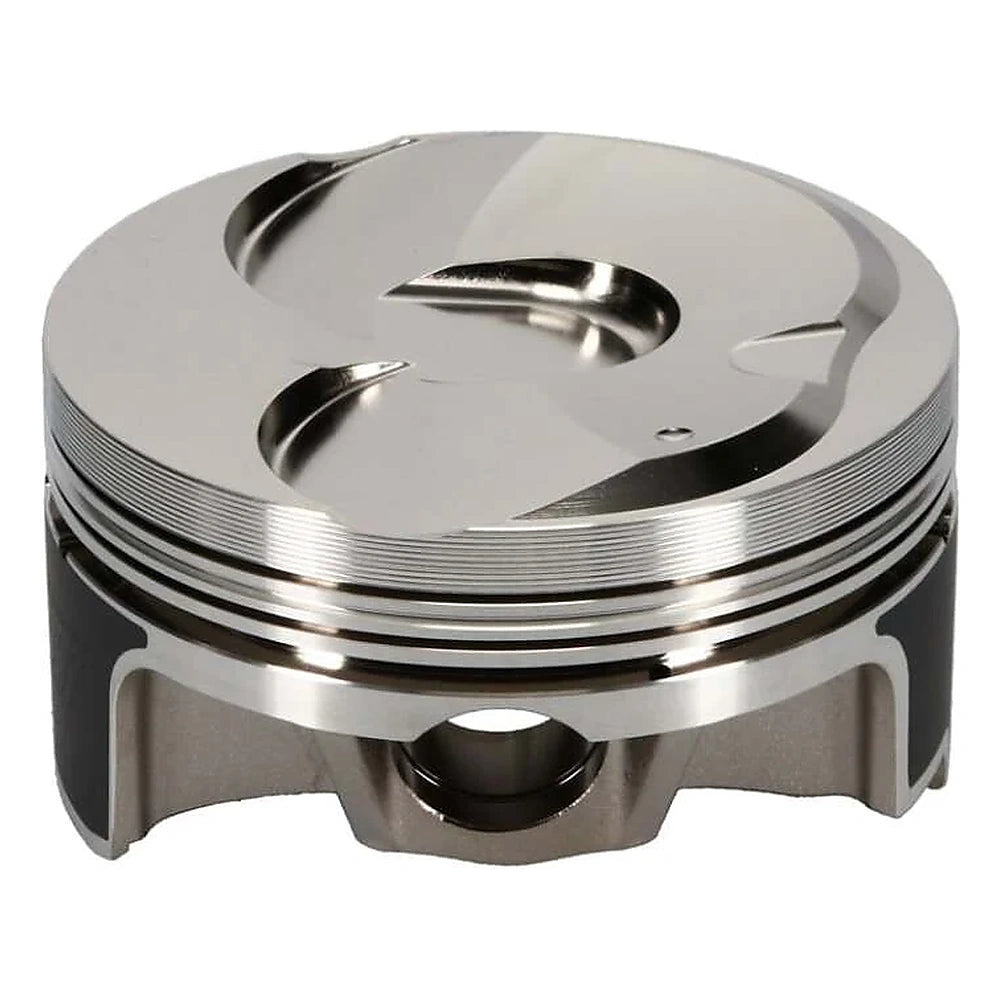

Wiseco K0233X1 is an eight-piston Professional Series package for a dimensionally matched Gen V direct-injected LT 6.2L build. Its 2618 forgings, coated crowns and skirts, pressure-seal features, premium rings, pins, and locks are intended for serious naturally aspirated or performance engine preparation where every machining dimension is verified.
No year-make-model fitment applies. Confirm every dimension, interface, clearance, load, and installation requirement shown below.
| Application Type | Requirements |
|---|---|
| Dimension Based | No year-make-model fitment applies. This set is for a Gen V direct-injected LT 6.2L build using a 4.075-inch bore, 3.622-inch stroke, 6.125-inch rod, 9.240-inch deck, .927-inch pin, 59 cc chamber, zero deck, and .051-inch gasket where the resulting 11.7:1 compression ratio is appropriate. Confirm every block, crankshaft, rod, cylinder-head, gasket, valve-clearance, and machining dimension with the engine builder. |
| Detail | Value |
|---|---|
| Brand | Wiseco |
| Manufacturer Part Number | K0233X1 |
| Product Type | Piston Sets - Forged - 8cyl |
| Series | Professional Series |
| Engine Architecture | Gen V direct-injected LT 6.2L |
| Quantity | Set of eight pistons |
| Piston Material | 2618 forged aluminum |
| Bore | 4.075 inches / 103.51 mm |
| Stroke | 3.622 inches / 92 mm |
| Rod Length | 6.125 inches / 155.58 mm |
| Compression Height | 1.304 inches / 33.12 mm |
| Crown Volume | -2 cc |
| Compression Ratio Reference | 11.7:1 at zero deck with 59 cc chamber and .051-inch gasket |
| Piston Weight | 558 grams |
| Pin | S718, .927 x 2.250 inches with .200-inch wall |
| Pin Material | 9310 steel |
| Ring Set | 4072GFX, eight sets |
| Ring Thickness | 1.2 mm, 1.2 mm, and 3.0 mm |
| Pin Locks | CS24 Spirolox |
| UPC | 193564070548 |
Wiseco engineers forged pistons and matched internal-engine components for powersports and automotive applications. Its automotive Professional Series combines application-specific geometry with high-strength forgings, controlled machining, skirt and crown treatments, ring-seal features, and matched pins and rings for demanding engine builds.
It is an eight-piston Wiseco Professional Series forged package for a dimensionally matched Gen V direct-injected LT 6.2L engine build.
How many pistons are included?The package contains eight pistons for a V8 build.
What bore and stroke are required?Wiseco specifies a 4.075-inch bore and 3.622-inch stroke for this configuration.
What connecting-rod length is specified?The catalog geometry uses a 6.125-inch connecting rod.
What compression ratio does the set produce?The catalog reference is 11.7:1 at zero deck with a 59 cc chamber and .051-inch gasket; the actual result must be calculated from the finished engine dimensions.
Are rings and wrist pins included?Yes. Premium GFX rings, S718 wrist pins, and CS24 Spirolox are included.
Does this piston set have broad vehicle fitment?No. Compatibility is determined by the exact Gen V LT engine architecture and every verified bore, stroke, rod, deck, chamber, gasket, pin, and clearance dimension.
Who should measure and assemble the engine?A qualified performance engine builder should inspect, machine, measure, calculate clearances, and assemble the short block using current Wiseco and engine-manufacturer procedures.
