XClutch 98-03 Subaru Legacy 2.5L/00-09 Subaru Outback 2.5L Stage 1 Sprung Organic Clutch Kit

Stage 1 Performance Clutch Replacement for 1998-2003 Subaru Legacy 2.5L and 2000-2009 Subaru Outback 2.5L

The XClutch XKSU23003-1A is a Stage 1 single-plate sprung organic clutch kit designed for 1998 through 2003 Subaru Legacy 2.5L and 2000 through 2009 Subaru Outback 2.5L models with manual transmissions. Stage 1 in the XClutch system targets street vehicles with light performance modifications where maintaining factory pedal feel and clutch engagement behavior is important but the stock clutch's torque capacity is no longer sufficient for the power level or driving demands of the vehicle.

The XKSU23003-1A uses an upgraded heavy-duty pressure plate that delivers a 23 percent increase in clamping force over the OEM unit, raising the torque capacity of the clutch to 340 lb-ft at the crankshaft. The friction disc is a 225mm organic material disc with a sprung hub. A sprung hub uses torsional dampening springs around the disc spline hub to absorb drivetrain shock and vibration during engagement and release, which is critical for street driving smoothness. The flywheel is not included in this kit; the existing flywheel should be in sound condition and resurfaced before installation. The kit is designed around XClutch's in-house R and D and testing program, which evaluates clutch performance on vehicle dynamometers before release.

Key Features

• 23 percent increase in pressure plate clamping force over OEM; rated to 340 lb-ft crankshaft torque capacity
• 225mm organic friction disc with sprung hub for factory-like engagement feel and reduced drivetrain shock on the street
• Diaphragm-style pressure plate with recessed friction surface configuration compatible with the Subaru Legacy and Outback application
• Complete installation kit: clutch disc, pressure plate, release bearing, pilot bushing, alignment tool, and spline grease all included
• Flywheel not included; existing flywheel must be in serviceable condition and resurfaced before installation
• Recommended for street use with light performance modifications; not designed for high-boost or high-horsepower forced induction builds
• 12-month/12,000-mile limited manufacturer warranty
• Fits 1998-2003 Subaru Legacy 2.5L and 2000-2009 Subaru Outback 2.5L manual transmission variants

This Part Fits

Product Specifications

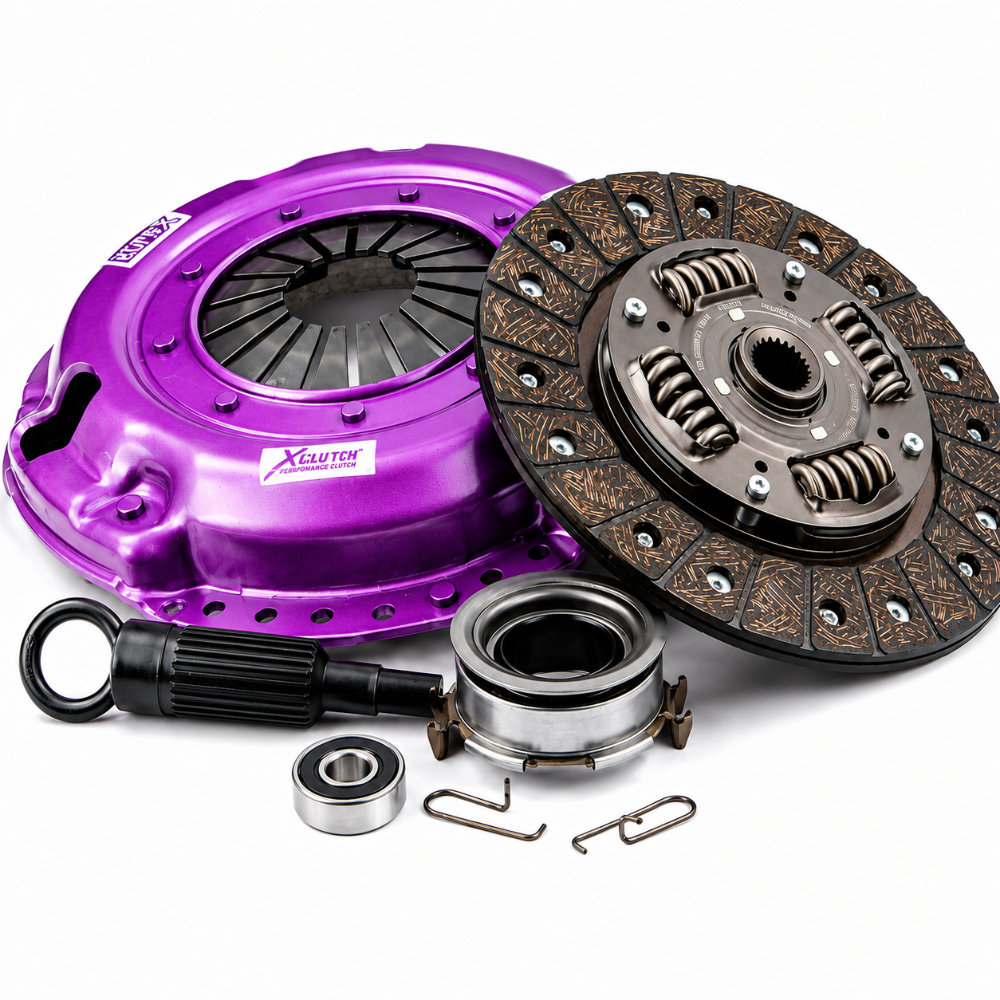

What Is Included

• 1x XClutch XKSU23003-1A organic sprung clutch disc, 225mm
• 1x upgraded heavy-duty pressure plate (23% increased clamping force)
• 1x release bearing (throwout bearing)
• 1x pilot bushing
• 1x clutch alignment tool
• Spline grease packet

Frequently Asked Questions

What is the torque capacity of the XClutch XKSU23003-1A for a modified Legacy 2.5L?

The XKSU23003-1A is rated at 340 lb-ft at the crankshaft. The naturally aspirated 2.5L EJ25 in the Legacy and Outback produces well under that figure in stock form, so this kit provides a substantial safety margin for bolt-on modifications like cold air intakes, exhaust systems, and ECU tunes on naturally aspirated engines. For turbocharged Legacy GT applications or high-powered forced induction builds, a Stage 2 or higher XClutch kit with a ceramic or multi-disc configuration should be considered instead.

Does the XKSU23003-1A fit the Legacy GT or only the base Legacy 2.5L?

The XKSU23003-1A application list covers the 1998-2003 Legacy 2.5L platform including multiple trim levels. The Legacy GT designation for this generation refers to a turbocharged variant (EJ20T/EJ205), which uses a different transmission and clutch interface than the naturally aspirated 2.5L. Confirm your specific engine and transmission code before ordering. The 2.5L naturally aspirated EJ25-equipped Legacy models are the correct fitment for this kit.

Is the flywheel included with the XKSU23003-1A?

No. The XKSU23003-1A is a clutch-only kit including the disc, pressure plate, release bearing, pilot bushing, alignment tool, and spline grease. The factory flywheel must be retained and resurfaced or replaced separately. XClutch sells compatible replacement flywheels; consult their catalog for the correct flywheel part number for the Legacy or Outback 2.5L application if a replacement is needed.

Will the sprung organic disc in the XKSU23003-1A feel different than the OEM clutch on the street?

Stage 1 sprung organic kits are specifically tuned to maintain near-factory pedal feel and engagement behavior. The sprung hub dampens drivetrain shock during engagement, which is the primary source of chatter and harshness on aggressively driven clutch changes. Most Legacy and Outback owners report that the XKSU23003-1A feels very close to OEM in daily driving while providing the additional clamping force needed for higher-demand use.

Does this clutch kit require flywheel resurfacing, or can the existing flywheel be reused as-is?

Flywheel resurfacing is strongly recommended whenever a new clutch disc is installed. Even if the flywheel appears smooth, glazing or micro-scoring from the old disc will cause uneven break-in of the new organic friction material, resulting in reduced clutch life and possible chatter. Most machine shops can resurface the Subaru flywheel for a reasonable cost. If the flywheel has heat cracks, deep scoring, or measures below the minimum thickness specification, it must be replaced rather than resurfaced.

How long does the break-in period last for the XKSU23003-1A organic disc?

XClutch recommends avoiding aggressive clutch use during the first 500 miles after installation. During this period, the organic friction material transfers a thin layer of material onto the flywheel and pressure plate contact faces, which creates the optimal mating surface for long-term performance. Avoid holding the vehicle on a hill using clutch slip, launching at high RPM, or performing hard burnouts during break-in. After 500 miles, full clutch performance is available.

What transmission does the Subaru Legacy 2.5L use that this XKSU23003-1A fits?

The 1998-2003 Subaru Legacy 2.5L with a manual gearbox uses a 5-speed transmission in that generation. The clutch interface specifications for these vehicles are a 225mm disc diameter, 24-spline input shaft at 1.000 inch diameter, which are the exact parameters the XKSU23003-1A is built to. Confirm you have a manual transmission variant before ordering, as Subaru also offered this generation in an automatic that does not use a clutch.

What warranty does XClutch provide on the XKSU23003-1A?

XClutch provides a 12-month/12,000-mile limited warranty on the XKSU23003-1A covering defects in materials and workmanship. Warranty coverage is voided by abuse, improper installation, use of the clutch kit outside its rated torque capacity, or failure to resurface the flywheel before installation. Under the Magnuson-Moss Warranty Act, installing an aftermarket clutch kit cannot by itself void the manufacturer warranty on unrelated vehicle systems. Contact XClutch or an authorized dealer for specific warranty claim procedures.

Can this kit be used in the 2000-2009 Outback 3.0 H6 as well, or only the 2.5L?

No. The XKSU23003-1A fits only the 2.5L EJ25 engine variants of the Outback. The 3.0-liter H6 engine used in some Outback trims was offered exclusively with an automatic transmission in the US market and does not use a clutch kit. If your Outback has a manual transmission, it is almost certainly the 2.5L four-cylinder, which is the correct application for this kit.

Installation Instructions

• Safely raise and support the vehicle on jack stands. Place a transmission jack under the gearbox before unbolting the transmission to prevent it from falling when the mount is removed.
• Disconnect the driveshaft, shift linkage, clutch hydraulic line or cable, electrical connectors, and all transmission mounting hardware. Lower and remove the transmission from the vehicle.
• Mark the orientation of the pressure plate to the flywheel before removal (to maintain balance if reusing the flywheel). Remove the pressure plate bolts evenly in a crossing pattern to release spring tension gradually, then remove the pressure plate and worn clutch disc.
• Remove the release bearing and pilot bushing from the transmission input shaft and flywheel housing. Press the new pilot bushing included in the XKSU23003-1A kit into the flywheel center bore using a suitable driver.
• Inspect the flywheel face for heat cracks, scoring, or hot spots. Resurface the flywheel before installation to ensure the new organic disc seats evenly. Do not skip this step; a grooved or glazed flywheel surface will shorten clutch life significantly.
• Place the new sprung organic disc against the flywheel face with the spring hub side facing away from the flywheel (toward the transmission). Insert the alignment tool through the disc hub and into the pilot bushing to center the disc perfectly before tightening the pressure plate.
• Position the new XKSU23003-1A pressure plate over the disc and align its mounting holes with the flywheel bolt pattern. Thread in the pressure plate bolts finger-tight, then tighten in a crossing pattern in multiple passes to the factory torque specification (typically 12 to 14 ft-lb for Subaru applications). Remove the alignment tool.
• Apply a thin film of the included spline grease to the transmission input shaft splines. Do not apply grease to the clutch disc friction surfaces or the flywheel face.
• Install the new release bearing onto the transmission input shaft retainer. Reinstall the transmission, reconnecting all hardware, linkage, hydraulics, and driveshaft. Torque all fasteners to factory specifications.
• Bleed the clutch hydraulic system if applicable. Start the vehicle and perform a clutch engagement test before driving. Avoid aggressive clutch use during the first 500 miles to allow the new organic disc to bed in against the flywheel and pressure plate surfaces.
