XK Glow 07-18 Jeep Wrangler JK 7in Headlight XKmax RGBW LED 2pc XKchrome Bluetooth App Cntl Kit

The Headlight Upgrade Every JK Owner Has Been Waiting For

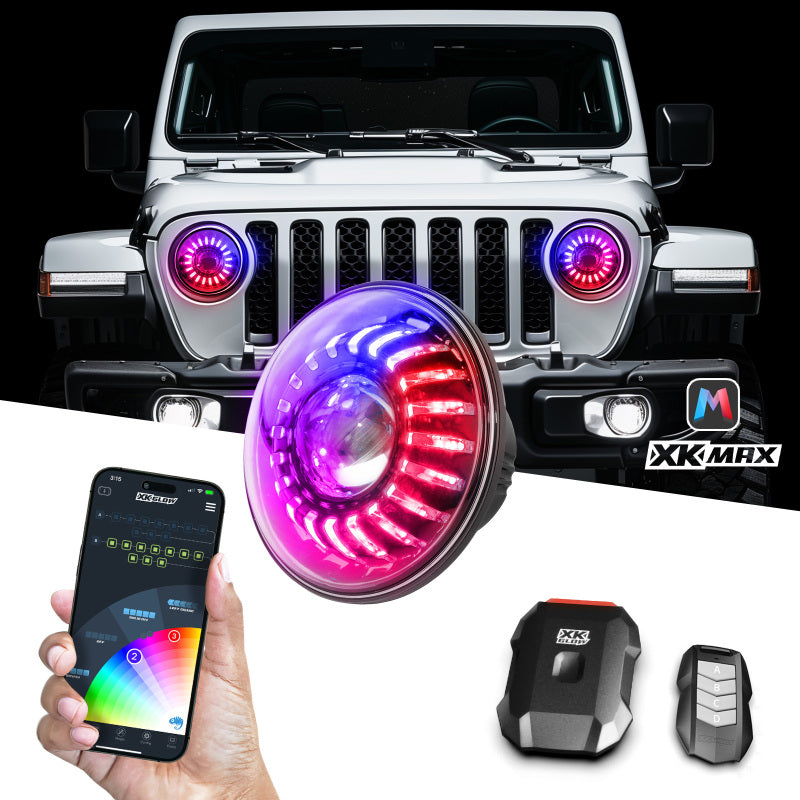

The XKGlow XKGMX-7IN-JP-KIT replaces the factory sealed-beam headlights on 2007 through 2018 Jeep Wrangler JK and JKU models with a full-LED system that is DOT-compliant, 90 percent brighter than previous-generation lights, and loaded with RGBW chasing halo effects. Each headlight in the XKGMX-7IN-JP-KIT runs 33W on low beam and 39W on high beam with a 3D RGBW halo optic surrounding the main lens. The halo cycles through 16 million colors and 28-plus pre-built chasing themes controlled by the XKmax Smartphone App over Bluetooth 4.0 Low Energy. Installation on JK models is a direct plug-and-play swap with no drilling or cutting required, and IP67 waterproofing means these lights hold up on trail and in weather. XKGlow backs this kit with a 3-year manufacturer warranty.

Key Features

• Direct-fit plug-and-play replacement for 2007-2018 Jeep Wrangler JK and JKU factory headlights
• DOT-compliant high and low beams, legal for on-road use
• 90 percent brighter than previous-generation LED headlight models
• 3D RGBW chasing halo optic with 16 million colors and flowing chasing effects
• 33W low beam / 39W high beam power consumption per headlight
• 28-plus pre-built chasing themes and a DIY color builder via XKmax App
• Sequential turn signal and brake light sync via optional sensor wires
• 4-button RF key fob for hands-free quick access
• Music sync and vehicle speed sync modes
• Up to 10 lighting zones controlled from a single controller
• Bluetooth 4.0 Low Energy app control with firmware update capability
• IP67 waterproof rating
• 3-year manufacturer warranty

Fitment

Specifications

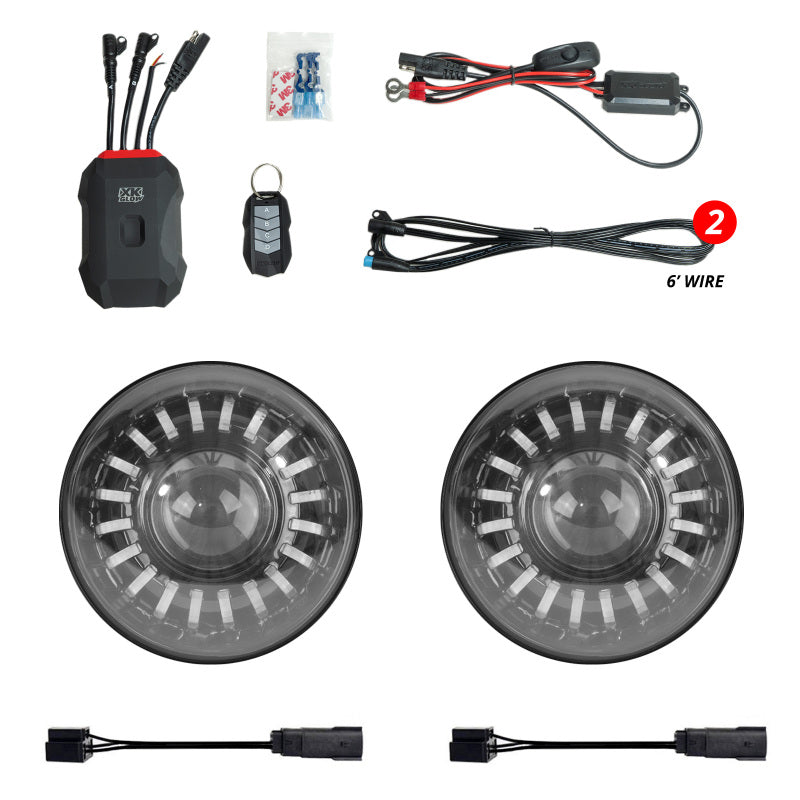

What's Included

• 2x 7-inch XKmax RGBW LED headlight assemblies
• 1x Bluetooth 4.0 LE wireless controller
• 1x 4-button RF key fob remote
• Plug-and-play wiring harness (JK direct-fit)
• Sensor wires for turn signal and brake sync
• Mounting hardware
• Quick-start installation guide

Frequently Asked Questions

Yes. The XKGMX-7IN-JP-KIT is a direct-fit replacement for the 7-inch round headlight opening on all 2007 through 2018 Jeep Wrangler JK and JKU models including Sport, Sahara, Rubicon, and X trim levels. No drilling, cutting, or adapter rings are required for JK installations.

Yes. The high and low beams in the MX-7IN-JP-KIT are DOT-compliant, meaning they meet Federal Motor Vehicle Safety Standards for on-road use in the United States. The RGBW halo lighting is for off-road or parked display use only and should not be run in a color mode while driving on public roads.

XKGlow rates these headlights at 90 percent brighter than their previous-generation LED models. Combined with a focused LED projector design on the low beam and a full LED reflector on the high beam, nighttime visibility on trail and road is significantly improved over the stock sealed-beam halogen units that came on most JK models.

Download the XKmax App from the Apple App Store or Google Play and pair the included Bluetooth 4.0 LE controller. From the app you can select any of the 16 million RGBW colors, scroll through 28-plus pre-built chasing themes, adjust brightness and speed, and save custom scenes. The 4-button RF key fob gives you quick on-off and preset switching without needing your phone.

Yes. The kit includes three sensor wires that connect to your vehicle's turn signal and brake signal wires. Once wired, the halo will flash sequentially in sync with your turn signal when you activate it and brighten when you press the brake pedal. This function is separate from the color and chasing effects and can be enabled or disabled from the app.

XKGlow estimates two to three hours for a complete installation on a Jeep Wrangler JK. The headlight assembly swaps directly into the stock bucket with no modifications. The additional time covers routing the controller wiring harness, connecting the optional sensor wires for turn and brake sync, and pairing the controller to the XKmax App.

Basic hand tools including a Phillips and flat screwdriver and a 10mm socket are sufficient to remove the factory headlight assemblies on the JK. The new assemblies bolt into the same mounting ring. Routing the sensor wires requires a trim pry tool to remove the A-pillar cover if you want a fully hidden wire run.

IP67 means the headlight housings are sealed against dust and can withstand temporary submersion in up to one meter of water for up to 30 minutes. In practice this means they handle rain, trail spray, puddles, and shallow water crossings without issue. The IP67 rating also covers the main lens and halo housing, not just the connector.

Yes. The Bluetooth controller in this kit supports over-the-air firmware updates through the XKmax App. This means XKGlow can push new themes, bug fixes, and feature additions to your controller without any physical hardware changes. Keeping the app updated ensures you always have access to the latest firmware.

Installation Overview

1. Disconnect the vehicle battery negative terminal before beginning electrical work.
2. Remove the factory headlight bezel trim and retaining ring on each side using a Phillips screwdriver and 10mm socket.
3. Unplug the factory headlight connector and remove the sealed-beam assembly.
4. Plug the XKmax headlight harness into the factory connector on each side, then connect the headlight assembly to the harness.
5. Set the headlight into the mounting bucket, reinstall the retaining ring and bezel trim.
6. Route the controller wiring harness to a sheltered mounting location, keeping wires away from heat and moving components.
7. If installing turn signal and brake sync, locate the signal wires at the headlight socket and connect the sensor wires per the included guide.
8. Connect the controller power lead to a fused 12V ignition-switched source and the ground to chassis ground.
9. Reconnect the battery, start the vehicle, and confirm low beam and high beam function.
10. Download the XKmax App, pair the controller via Bluetooth 4.0 LE, verify both halos respond, and perform a headlight aim adjustment if needed.
