XKGlow XKmax RGBW Addressable Cube Light Kit - Flood Beam

Wide Off-Road Coverage With RGBW Chasing Style

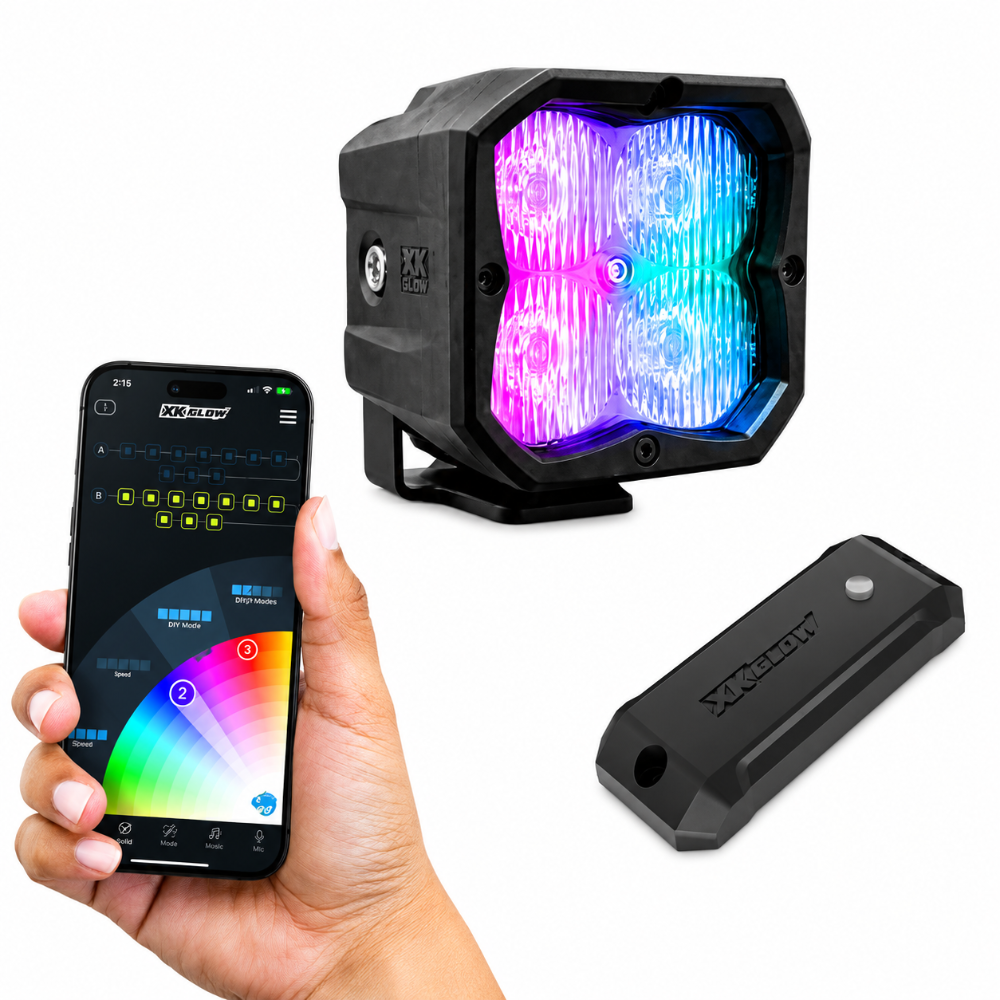

The XKGlow XKGMX-CUBE-FL-KIT delivers the XKmax RGBW Addressable Cube Light Kit in a flood beam configuration built for off-road use. Each kit includes two cube lights with 20-watt high-output LED chips, drawing 30W max per cube, paired with a 7.2W RGBW chasing backlight delivering 16 million color combinations. The XKGMX-CUBE-FL-KIT flood beam throws wide, even light coverage across the trail for close-range off-road visibility, controlled through the XKmax smartphone app with 28+ pre-built chasing themes, music sync, speed sync, and a full DIY pattern builder. For builds that need maximum spread light output on the trail, the XKGMX-CUBE-FL-KIT is the cube kit for the job.

Key Features

• Flood beam pattern throws wide, even light coverage ideal for close-range off-road trail use

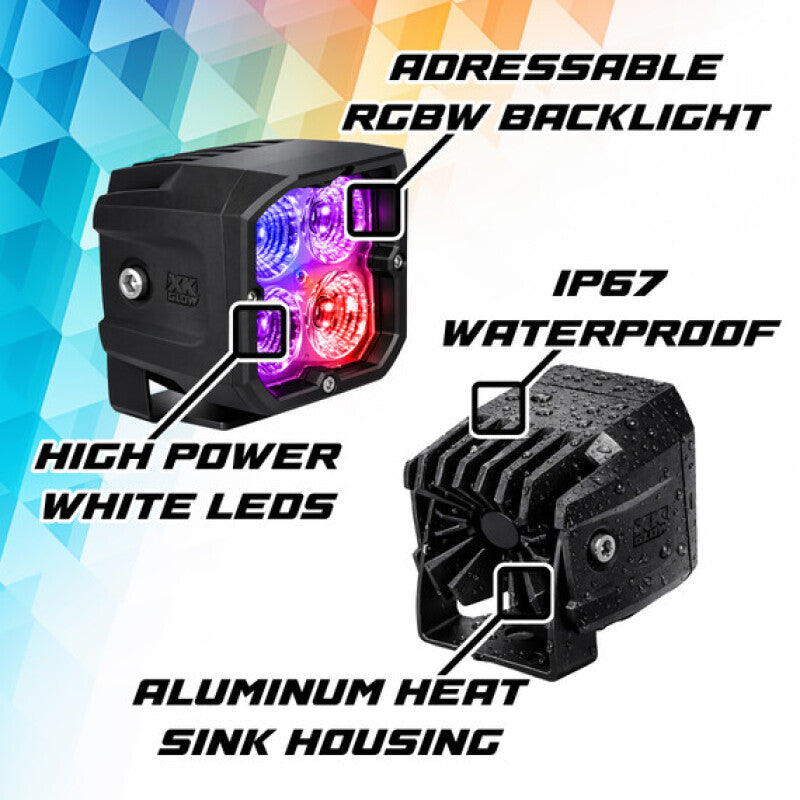

• 20-watt high-output LED chips per cube deliver intense, dependable light output

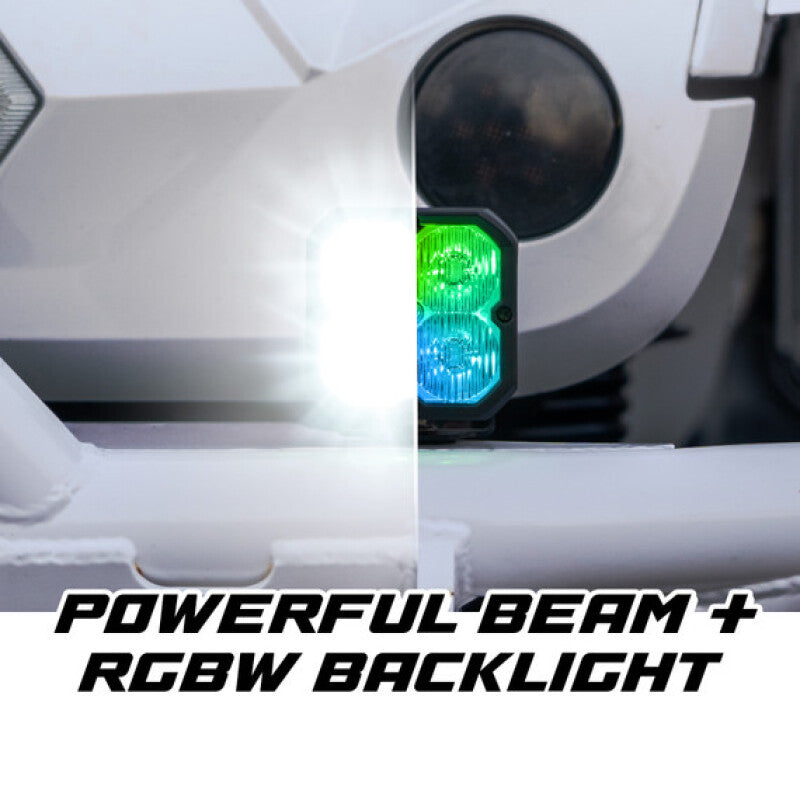

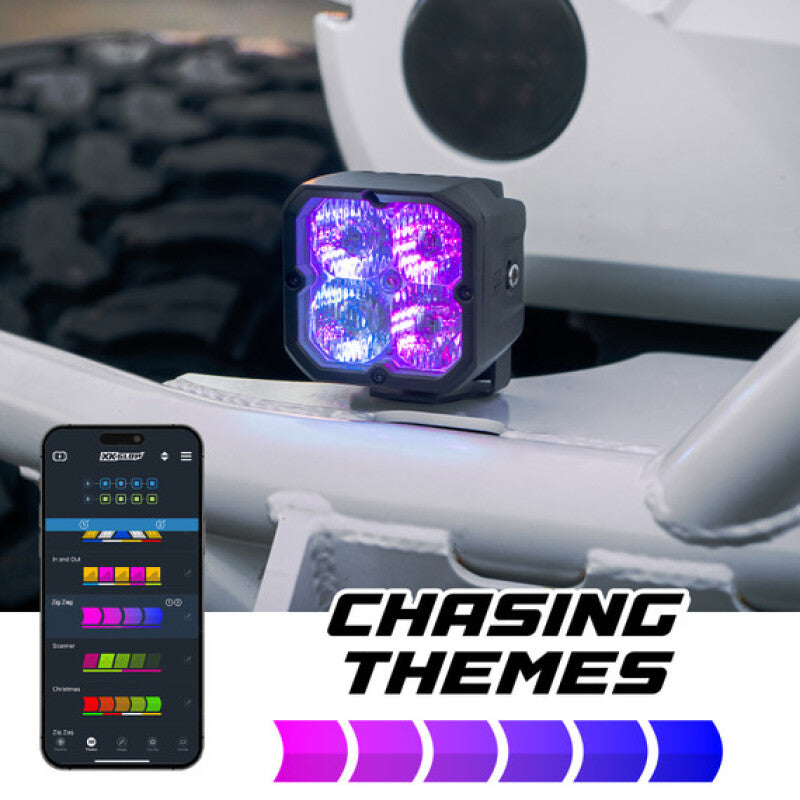

• RGBW chasing backlight with 16 million colors and 28+ pre-built chasing themes
• XKmax Bluetooth smartphone app control with music sync, speed sync, and acceleration sync
• DIY pattern builder for fully custom chasing animations, brightness, speed, and color
• Upgradeable controller supports 2-channel or 4-channel expansion for additional XKmax lights
• Firmware update capability via app keeps your lights current with latest XKmax features
• Multiple mounting options including fog light and flush-mount face plates (sold separately)
• 3-year warranty backed by XKGlow

Specifications

What's Included

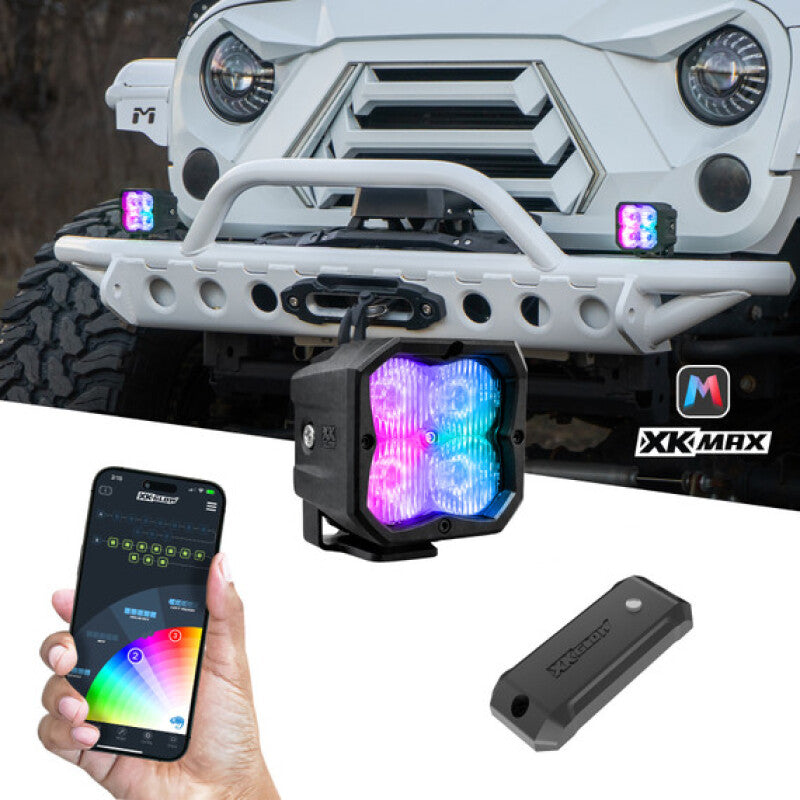

• 2x XKGlow XKmax RGBW addressable cube lights (flood beam)
• 1x XKmax Bluetooth controller
• Wiring harness and mounting hardware

Frequently Asked Questions

The flood beam variant is designed for off-road use and is not SAE or DOT compliant for on-road driving. For street-legal cube lights, choose the XKGMX-CUBE-D-KIT driving beam or XKGMX-CUBE-FO-KIT fog beam variants, which are DOT-compliant.

The XKGMX-CUBE-FL-KIT flood beam spreads light wide and low for broad coverage of the area immediately in front of and around your vehicle on the trail. The spot beam concentrates light into a tighter, longer-distance beam for illuminating objects further down the trail. Many builds use both for complete trail coverage.

The XKmax app connects via Bluetooth 4.0 Low Energy and gives you full control over color, brightness, speed, and chasing patterns. You can choose from 28+ pre-built themes or build your own in the DIY builder. The app also supports music sync, vehicle speed sync, and acceleration sync.

Yes. The included controller is upgradeable to a 2-channel or 4-channel version, allowing you to expand your XKmax lighting ecosystem with additional cube lights, rock lights, or other XKmax-compatible accessories on the same controller and app.

The XKmax cube lights support multiple mounting configurations including standard, fog light bracket mount, and flush-mount face plate options. Additional mounting hardware is available separately through XKGlow for your specific vehicle and build.

The XKmax cube lights are built for rugged off-road use and are designed to handle wet and muddy trail conditions. Check the XKGlow website for the specific IP waterproof rating before any submersion-level use.

The XKGMX-CUBE-FL-KIT is a universal kit that fits any 12V vehicle. It is especially popular on Jeeps, trucks, UTVs, rock crawlers, and overlanding rigs. Mounting bracket compatibility varies by vehicle.

XKGlow rates installation at approximately 1 to 2 hours for a standard mount. Flush-mount or custom bracket installations may take longer depending on the vehicle and build.

Installation Notes

1. Select a mounting location with adequate airflow clearance and away from direct heat sources.
2. Mount the cube lights using the included hardware or optional bracket accessories for your vehicle.
3. Route the wiring harness from each cube to the controller, keeping wires away from moving parts and heat.
4. Connect the controller to a switched 12V power source and ground using the included leads.
5. Download the XKmax app on your iOS or Android device and pair via Bluetooth.
6. Follow the in-app setup to calibrate and test all lights before finalizing installation.
