XK Glow XKmax 2 x 30in FIber Optic Light Strip Kit

Luxury Ambient Glow for Your Dash in a Single Kit

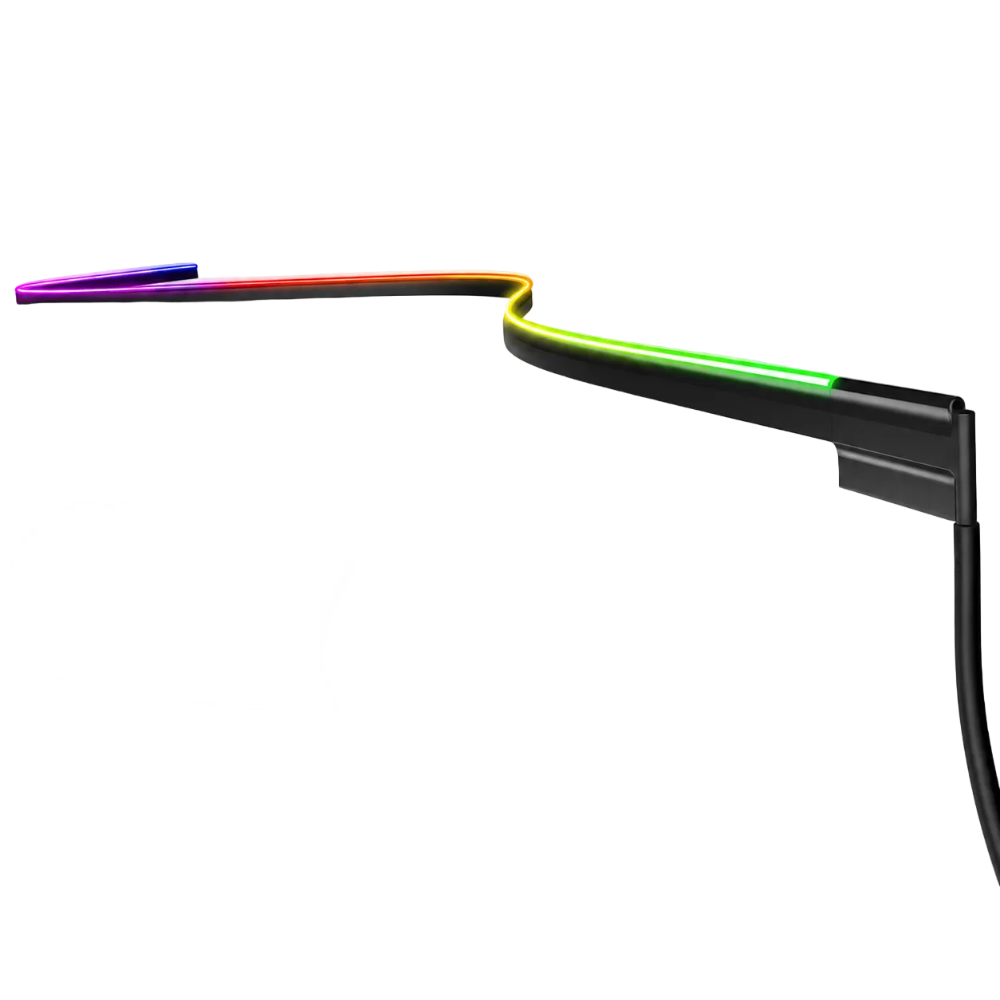

The XKGlow XKGMX-FO-STA XKmax Fiber Optic Light Strip Kit transforms your vehicle's dashboard and interior with a seamless, high-density fiber optic glow that looks factory-fitted. The kit includes two 30-inch addressable RGB fiber optic strips and a 2-channel Bluetooth controller, covering the full dashboard span with a smooth, continuous light effect at 144 LEDs per meter. Each strip draws just 6.8W, making this one of the most efficient interior lighting upgrades available. The XKmax App on iOS and Android gives you control over 16 million colors, 28-plus chasing themes, music sync, speed sync, and a DIY builder for custom effects. XKGMX-FO-STA is compatible with virtually any car, truck, or SUV with a 12V electrical system.

Key Features

• Two 30-inch fiber optic LED strips deliver smooth, continuous ambient lighting
• Ultra-high density at 144 LEDs per meter for a seamless, gap-free glow effect
• Addressable RGB technology with 16 million colors and flowing chasing effects
• 28-plus pre-built chasing themes plus a DIY color builder via XKmax App
• Music sync and vehicle speed sync modes for real-time reactive lighting
• Ultra-slim trimmable design fits tight dash seams and door panel channels
• 2-channel Bluetooth 4.0 LE controller, 5A per channel max load
• 11-14V DC input, compatible with standard 12V vehicle systems
• Adhesive tape and install tool included for clean, tool-free mounting
• 3-year manufacturer warranty

Specifications

What's Included

• 2x 30-inch addressable RGB fiber optic LED strips
• 1x 2-channel Bluetooth 4.0 LE controller
• Wiring harness and connectors
• Adhesive tape for strip mounting
• Install tool for routing strips into tight panel gaps
• Quick-start installation guide

Frequently Asked Questions

Fiber optic strips use light-emitting fibers that glow along their entire length rather than producing point-source light at individual LED emitters. This creates a smooth, uniform ambient glow without visible hot spots or diodes. The effect looks more like an OEM ambient lighting system than a typical aftermarket LED strip installation.

The two 30-inch strips are sized for dashboard seams, A-pillar channels, and door panel grooves. Common placements include along the top edge of the instrument panel, inside the door panel trim channel along the top of the door, or behind the center console edge. The ultra-slim profile and trimmable design let you fit them into most interior gaps without modification.

Yes. The strips are designed to be trimmed to length at designated cut points. If your dashboard run is shorter than 30 inches, cut the strip to fit and the remaining section still functions normally. Do not cut between designated cut points or the strip may not operate correctly.

No. The music sync feature uses your phone's built-in microphone through the XKmax App. No additional microphone or sensor wiring is required. The app listens to ambient sound and pulses the strip lighting to match the beat and rhythm of whatever audio is playing.

Speed sync connects the lighting effect speed to your vehicle's accelerator input through the sensor wire included in the kit. As you accelerate, the chasing effects on the strips speed up; as you slow down, they slow as well. This creates a dynamic, motion-reactive interior lighting experience tied to your driving inputs.

The XKGMX-FO-STA works with any 12V vehicle including cars, trucks, SUVs, and vans. There are no vehicle-specific mounting brackets or connectors. As long as your vehicle has a standard 12V electrical system and interior panel grooves where strips can be routed, this kit will install cleanly.

Yes. XKGlow offers add-on kits in 43-inch strip lengths for door panels, center consoles, and seat backs. The 2-channel controller supports up to 16 lighting zones, so you can expand the system significantly without needing a second controller. Each add-on strips connects directly to the same controller.

Connect the controller's positive power lead to a switched 12V source that turns on with the ignition or accessory position, and connect the ground lead to a chassis ground point. Using a switched source ensures the strips turn off automatically when the vehicle is off, preventing battery drain.

XKGlow's 3-year warranty covers defects in materials and workmanship. It does not cover damage from reversed polarity wiring, physical damage, water intrusion beyond the strip's protection rating, or use outside the specified 11-14V input range. Contact XKGlow support with your proof of purchase to initiate a claim.

Installation Overview

1. Plan your strip routing along the dashboard seam or door panel channel and measure the available length before trimming.
2. Clean the mounting surface with isopropyl alcohol and allow to dry fully before applying adhesive.
3. Use the included install tool to press the strip into any narrow gaps or seams for a clean, flush fit.
4. Peel the adhesive tape backing and press the strip firmly along the planned route, starting from one end.
5. Route the connector leads discreetly behind trim panels toward the controller location.
6. Connect the strip leads to the controller's channel inputs, matching polarity.
7. Connect the controller power lead to a switched 12V fused source and the ground lead to chassis ground.
8. If using speed sync, connect the sensor wire to a signal source as described in the included guide.
9. Download the XKmax App, pair the controller via Bluetooth 4.0 LE, and confirm both strips respond.
10. Tuck all excess wiring behind trim and secure with zip ties to prevent rattling.
