Yukon Gear 11.5in Chrysler Rear Axle Bearing and Seal Kit

Yukon Gear AK C11.5 Rear Axle Bearing and Seal Kit for 2003-2013 Dodge Ram 2500 and 3500

The AK C11.5 is a Yukon Gear axle bearing and seal kit purpose-built for the Chrysler 11.5-inch full-floating rear axle used in 2003-2013 Dodge and Ram 2500 and 3500 trucks. AK C11.5 replaces inner and outer bearings along with the axle seal on one side of the hub assembly, restoring smooth wheel rotation and preventing differential fluid leaks. Designed for diesel and gas-powered heavy-duty trucks, AK C11.5 uses premium components engineered for high-load towing and off-road applications. Two kits are required for a complete axle service.

Features and Benefits

• Inner and Outer Bearings with Races - precision-matched pairs for correct load distribution in the 11.5in hub
• High-Quality Axle Seal - prevents differential fluid from contaminating wheel bearing assembly
• Application-Specific Design - AK C11.5 is engineered for the Chrysler AAM 11.5in full-floating rear axle
• Services One Side - order two kits for a full axle service on both sides
• Proven Components - Yukon designs each AK kit for exact fit and long service life
• Heavy-Duty Rating - built for Ram 2500 and 3500 towing and work truck demands
• 1-Year Warranty - covered against manufacturer defects

Vehicle Fitment

Specifications

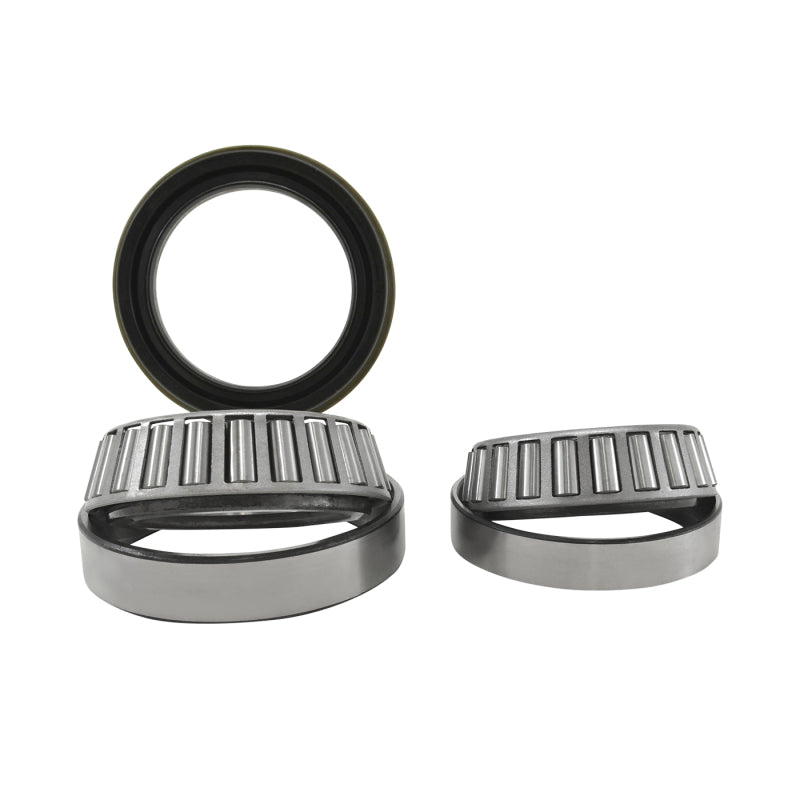

What Is Included

• Inner axle bearing
• Inner bearing race
• Outer axle bearing
• Outer bearing race
• Axle seal

Frequently Asked Questions

What differential does AK C11.5 fit?
AK C11.5 fits the Chrysler 11.5-inch AAM full-floating rear axle found in 2003-2013 Dodge and Ram 2500 and 3500 trucks.

Does AK C11.5 include a pinion seal?
No. AK C11.5 covers the axle end bearing and seal only. The pinion seal is a separate component.

How many AK C11.5 kits do I need for a full service?
Two kits are required since AK C11.5 services one side of the axle. Order two for a complete left and right service.

Does AK C11.5 fit the 2003-2013 Ram 2500 with a diesel engine?
Yes. AK C11.5 fits both diesel and gas-powered Ram 2500 and 3500 trucks equipped with the Chrysler 11.5in rear axle.

Will AK C11.5 work with 14-bolt rear axles?
Yes. The Chrysler 11.5in is a 14-bolt full-floating rear axle, and AK C11.5 is designed specifically for this application.

What tools are required to install AK C11.5?
Installation requires a bearing press or driver set to remove and install the inner and outer bearings and races properly.

Does the Magnuson-Moss Warranty Act apply to AK C11.5?
Yes. Yukon Gear provides a 1-year written warranty against manufacturer defects under the Magnuson-Moss Warranty Act, which does not void coverage on other vehicle systems.

Does AK C11.5 carry a California Proposition 65 warning?
Yes. This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Installation Instructions

1. Raise and support the vehicle safely, then remove the wheel and tire assembly.
2. Remove the axle shaft retaining bolts and slide the full-floating axle shaft out of the hub.
3. Using a bearing puller, remove the old outer bearing from the spindle.
4. Press or drive out the inner bearing and axle seal from the hub assembly.
5. Clean all bearing surfaces and inspect the hub bore for damage or corrosion.
6. Press the new inner bearing and race from AK C11.5 into the hub to the proper depth.
7. Drive the new axle seal from AK C11.5 into the hub using a seal driver until flush.
8. Press the new outer bearing and race from AK C11.5 onto the spindle to the correct depth.
9. Reinstall the axle shaft and torque the retaining bolts to the manufacturer specification.
10. Reinstall the wheel and tire, lower the vehicle, and check differential fluid level.
