Yukon Gear 1541H Alloy 5 Lug Rear Axle For 71-81 GM 12T 2Wd

Yukon Gear 1541H Alloy 5 Lug Rear Axle for 1971 to 1981 GM 12 Bolt 2WD Applications

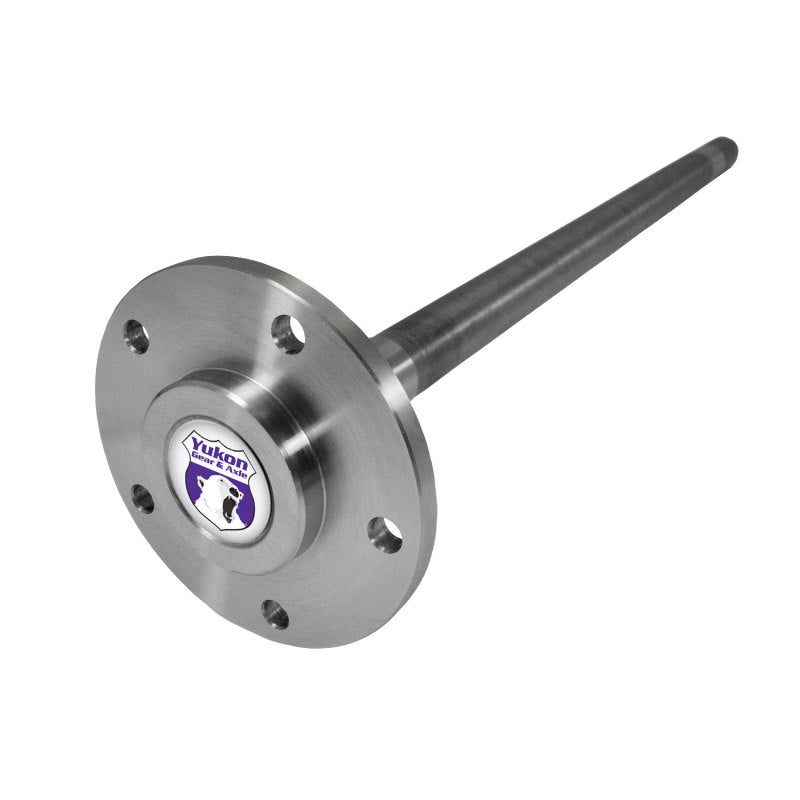

The YA G14071751 is a 1541H microalloy steel rear axle shaft designed for the GM 12-bolt 2WD rear differential used in 1971 through 1981 GM trucks and SUVs. Featuring a 5-lug flange pattern, YA G14071751 replaces worn or broken factory shafts in these classic GM work trucks with a shaft that delivers improved strength and fatigue life compared to standard 1040 carbon steel replacements. The GM 12-bolt is one of the most respected and sought-after rear axles in American truck and performance car history, and keeping it in top condition with a quality replacement shaft like YA G14071751 ensures reliable service for decades to come.

Features and Benefits

• Fits 1971-1981 GM 12-bolt 2WD rear differential with 5-lug flange
• 1541H microalloy steel for improved strength over standard 1040 carbon steel
• 5-lug flange pattern for correct wheel fitment
• Precision-machined splines for smooth differential side gear engagement
• Correct bearing journal dimensions for OE-style bearing fit
• Ideal for restoration and reliable daily driving on classic GM trucks
• Covers C10, C15, C20, K10, and related GM 1-ton and 3/4-ton platforms
• Backed by Yukon Gear manufacturer limited warranty

Vehicle Fitment

Specifications

What Is Included

• One 1541H alloy 5-lug rear axle shaft (YA G14071751)
• Sold individually

Frequently Asked Questions

Does installing this axle shaft affect my factory warranty?
Under the Magnuson-Moss Warranty Act, the manufacturer must prove the aftermarket part caused the specific failure before denying your warranty claim. Installing a higher-quality replacement shaft does not automatically void your coverage.

Is the GM 12-bolt considered a strong rear axle?
Yes. The GM 12-bolt is widely regarded as one of the strongest production rear axles ever used in American trucks and passenger cars. The 12-bolt ring gear pattern distributes load more evenly than the 10-bolt, giving it excellent torque capacity.

What is the spline count on the GM 12-bolt?
The most common GM 12-bolt truck axle configuration uses 30 spline axle shafts, though some applications differ. Always count your existing shaft's splines before ordering to confirm compatibility.

Does YA G14071751 work for both left and right sides?
Confirm left-right fitment for your specific GM 12-bolt application before ordering. Many classic GM trucks used the same shaft on both sides, but some applications differ in length.

What fluid does the GM 12-bolt rear differential require?
Use 80W-90 GL-5 gear oil for open differentials. If a positraction limited-slip unit is installed, add the appropriate GM friction modifier.

What are common causes of GM 12-bolt axle shaft failure?
Spline wear from aging, high-torque launches, and corrosion fatigue are the most common failure modes on 40-to-50-year-old trucks. Replacing with a fresh 1541H shaft restores full integrity.

Can I upgrade to 4340 chromoly for this application?
Yukon Gear offers 4340 chromoly shafts for select GM 12-bolt applications. For stock and mild performance use, the 1541H in YA G14071751 is an excellent and cost-effective choice.

How do I identify a GM 12-bolt versus a 10-bolt?
Count the bolts on the differential cover. The 12-bolt has 12 cover bolts and a larger, rounder cover. The 10-bolt has 10 cover bolts and an asymmetrical cover shape.

What warranty covers YA G14071751?
Yukon Gear provides a manufacturer limited warranty against defects in materials and workmanship from the date of purchase.

Installation Instructions

1. Raise and support the vehicle. Remove the wheel and tire on the affected side.
2. Remove the differential cover and drain the gear oil.
3. Remove the pinion shaft lock bolt and slide out the pinion shaft.
4. Push the axle shaft inward to expose and remove the C-clip.
5. Slide the old shaft out of the axle tube.
6. Inspect the axle bearing and seal. Replace if needed.
7. Apply gear oil to the splines and slide in YA G14071751. Install the C-clip and pull to seat.
8. Reinstall the pinion shaft and lock bolt to specification.
9. Install the cover with new sealant and fill with gear oil.
10. Reinstall the wheel and tire. Road-test and inspect for leaks.
