Yukon Gear 1541H Alloy Axle For Dana 44 JK Non-Rubicon Rear. 30 Spline / 32in Long

Yukon Gear 1541H Alloy Axle for Dana 44 JK Non-Rubicon Rear with 30 Splines at 32 Inches

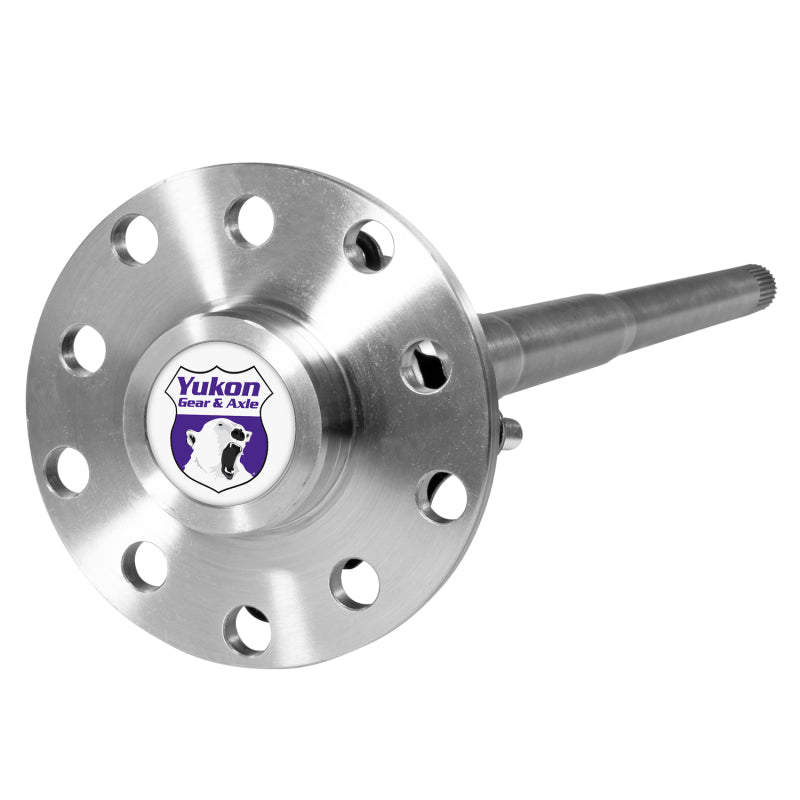

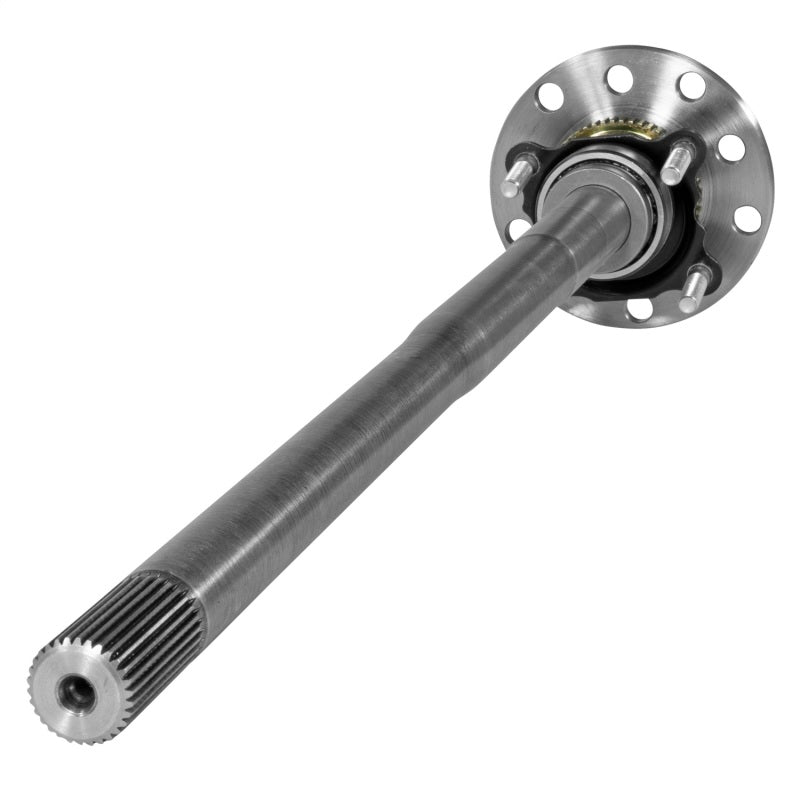

The YA D44JKNON is a 1541H microalloy steel rear axle shaft replacement for the Dana 44 JK non-Rubicon rear differential used in 2007 through 2017 Jeep Wrangler JK Sahara, Sport, and X trims. With 30 splines and a 32 inch shaft length, YA D44JKNON provides an OE-compatible upgrade over the standard alloy shaft for JK owners who need improved reliability without stepping up to the 4340 chromoly kit. The 1541H alloy delivers meaningfully better torsional strength and fatigue resistance compared to standard 1040 steel replacements, making it a practical upgrade for Wranglers that see regular off-road use, have received larger tires, or have had lockers installed. YA D44JKNON fits the C-clip axle shaft retention design of the non-Rubicon JK Dana 44 rear housing.

Features and Benefits

• Direct fit for Dana 44 JK non-Rubicon rear differential, 30 spline, 32 inch length
• 1541H microalloy steel improves strength over standard 1040 alloy replacements
• Compatible with OE-style open, limited-slip, and aftermarket locker differentials
• Precision-machined splines for proper engagement with the Dana 44 side gear
• C-clip retention style matching the JK non-Rubicon OE design
• Cost-effective upgrade path before stepping up to full 4340 chromoly
• Covers JK Sahara, Sport, Sport S, and X trims with the non-Rubicon rear axle
• Backed by Yukon Gear manufacturer limited warranty

Vehicle Fitment

Specifications

What Is Included

• One 1541H alloy rear axle shaft (YA D44JKNON)
• Sold individually; order two for a complete left-right replacement

Frequently Asked Questions

Does installing YA D44JKNON affect my Jeep warranty?
Under the Magnuson-Moss Warranty Act, a dealer must prove the aftermarket part caused the specific failure before denying your warranty claim. Installing a stronger axle shaft does not automatically void your coverage.

What is the difference between YA D44JKNON and YA WD44JKNON-K?
YA D44JKNON is a single 1541H alloy shaft while YA WD44JKNON-K is a kit using premium 4340 chromoly steel. The 4340 chromoly kit offers higher strength and is the preferred upgrade for heavily built Wranglers, lockers, or 37-inch-plus tires.

Will this shaft fit both left and right sides?
YA D44JKNON is sold as a single shaft. Verify left-right fitment with your application. For most JK non-Rubicon rear axle applications, both sides use the same shaft length and spline count.

Is YA D44JKNON compatible with a locker?
Yes. While 4340 chromoly is preferred for lockers, the 1541H alloy in YA D44JKNON provides a solid upgrade for moderate off-road use and OEM-level lockers.

What year did the JK Wrangler change from the non-Rubicon rear Dana 44?
The 2007 through 2017 JK non-Rubicon trims used the 30 spline Dana 44 rear. The JL Wrangler introduced in 2018 uses a different rear axle configuration and requires different part numbers.

What fluid does the JK Dana 44 rear axle require?
Jeep recommends 75W-90 full synthetic gear oil meeting GL-5 specification for the JK Dana 44 rear differential.

How long does axle shaft replacement take?
With the differential cover off and the right tools, a C-clip axle shaft replacement typically takes one to two hours per side including fluid change time.

What warranty does YA D44JKNON carry?
Yukon Gear provides a manufacturer limited warranty covering material and workmanship defects from the date of purchase.

Installation Instructions

1. Raise and support the vehicle. Remove the wheel and tire on the side being serviced.
2. Remove the brake caliper and rotor to allow access to the axle tube end.
3. Remove the differential cover and drain the differential oil.
4. Remove the pinion shaft lock bolt and slide out the pinion shaft.
5. Push the axle shaft inward to expose the C-clip. Remove the C-clip and slide out the old shaft.
6. Inspect the axle bearing and seal. Replace if worn.
7. Apply a thin coat of gear oil to the spline end of YA D44JKNON.
8. Slide the new shaft in and engage the splines. Install the C-clip. Pull the shaft outward to seat the clip.
9. Reinstall the pinion shaft and lock bolt to factory torque spec.
10. Install the differential cover with new RTV sealant. Fill with correct gear oil.
11. Reinstall the rotor, caliper, wheel, and tire. Torque to specification. Road-test and check for leaks.
