Yukon Gear AK GM14T Axle Bearing and Seal Kit for GM 10.5in 14-Bolt Full-Float Axle
The AK GM14T from Yukon Gear is a precision axle bearing and seal kit designed for the GM 10.5in 14-bolt full-floating rear axle. Used in heavy-duty Chevrolet and GMC 3/4-ton and 1-ton trucks, vans, and SUVs from 1973 through 2012, this axle is the backbone of serious towing and hauling applications. The AK GM14T delivers everything needed to service one side of the full-float axle assembly, using premium Timken bearings and quality seals to restore proper function and prevent oil contamination.
Features and Benefits
- Complete axle bearing and seal kit for the GM 10.5in 14-bolt full-floating rear axle
- Services one side of the axle assembly (order two kits for a complete axle service)
- Includes inner bearing, inner race, outer bearing, outer race, and axle seal
- Timken bearings provide industry-leading durability under heavy load
- Precision seal prevents differential fluid contamination of the wheel hub
- Direct OEM replacement dimensions for straightforward installation
- Yukon Gear limited warranty included
Fitment
| Year | Make | Model | Notes |
|---|---|---|---|
| 1973-2012 | Chevrolet | C/K 2500, C/K 3500, Silverado 2500HD, Silverado 3500HD | GM 10.5in 14-Bolt Full-Float |
| 1973-2012 | GMC | C/K 2500, C/K 3500, Sierra 2500HD, Sierra 3500HD | GM 10.5in 14-Bolt Full-Float |
| 1992-2013 | Chevrolet | Suburban 2500 | GM 10.5in 14-Bolt Full-Float |
| 1992-2013 | GMC | Yukon XL 2500 | GM 10.5in 14-Bolt Full-Float |
| 2002-2006 | Chevrolet | Avalanche 2500 | GM 10.5in 14-Bolt Full-Float |
| 1992-2002 | Chevrolet | Express 2500, Express 3500 | GM 10.5in 14-Bolt Full-Float |
| 1992-2002 | GMC | Savana 2500, Savana 3500 | GM 10.5in 14-Bolt Full-Float |
Specifications
| Spec | Detail |
|---|---|
| Part Number | AK GM14T |
| UPC | 883584100362 |
| Differential | GM 10.5in 14-Bolt Full-Float |
| Kit Type | Axle Bearing and Seal Kit (one side) |
| Included Components | Inner bearing, inner race, outer bearing, outer race, axle seal |
| Warranty | Yukon Gear limited warranty |

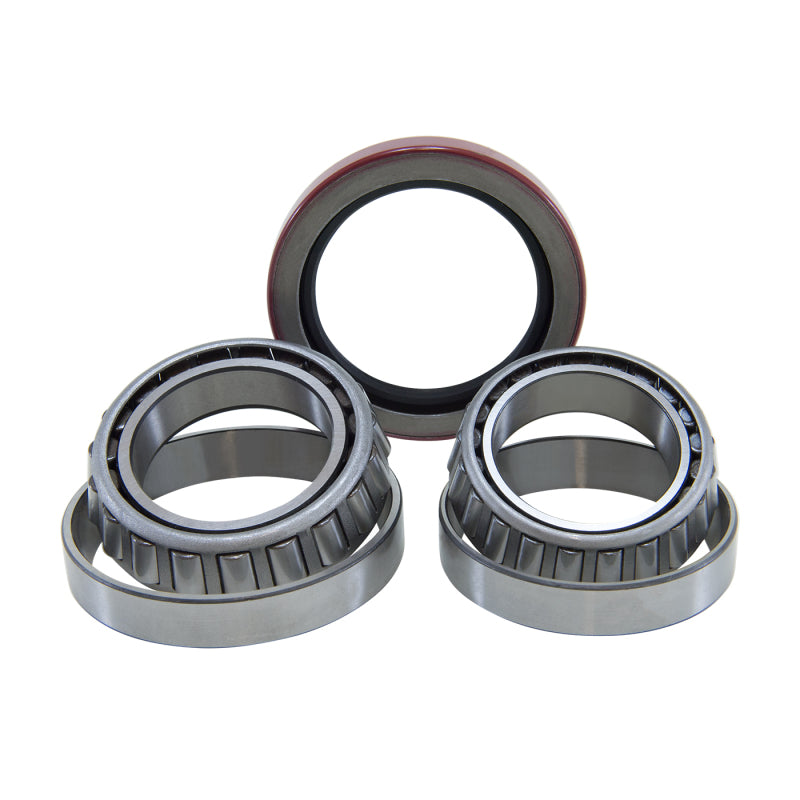

What's Included
- 1 x Inner axle bearing (Timken)
- 1 x Inner bearing race
- 1 x Outer axle bearing (Timken)
- 1 x Outer bearing race
- 1 x Axle seal
Frequently Asked Questions
What differential does AK GM14T fit?
The AK GM14T is designed for the GM 10.5in 14-bolt full-floating rear axle found in heavy-duty Chevrolet and GMC 3/4-ton and 1-ton trucks, vans, and SUVs from approximately 1973 through 2012.
How many kits do I need for a complete axle service?
The AK GM14T services one side of the full-floating axle. Order two kits to service both sides completely.
Does AK GM14T include a pinion seal?
No. The AK GM14T is an axle bearing and seal kit specific to the full-float axle tube ends. It does not include pinion-related components.
What is a full-floating axle?
In a full-floating axle design like the GM 14-bolt, the axle shaft itself does not carry vehicle weight. All load is borne by the hub and bearings. The axle shaft only transmits torque, making bearing replacement straightforward without the axle shaft needing to support the vehicle during service.
Is AK GM14T compatible with aftermarket axle shafts?
Yes. The AK GM14T bearing and seal dimensions are matched to the standard GM 14-bolt full-float tube OD and are compatible with both OEM and quality aftermarket axle shafts designed for this application.
What bearing brand is used in AK GM14T?
Yukon Gear uses Timken bearings in the AK GM14T to ensure long-term reliability in demanding towing and hauling applications.
Does Yukon Gear's warranty cover AK GM14T?
Yes. The AK GM14T is covered by Yukon Gear's limited warranty against manufacturing defects. Per the Magnuson-Moss Warranty Act, installing aftermarket parts like AK GM14T does not void your vehicle manufacturer's warranty on unrelated components.
Can AK GM14T be installed at home?
Yes, with proper tools including a bearing press, seal driver, and basic hand tools, a mechanically experienced person can install the AK GM14T. Professional installation is recommended if you are not familiar with full-float axle bearing service.
Installation Instructions
- Safely raise and support the vehicle; remove the wheel and tire assembly.
- Remove the axle shaft retaining bolts and pull the axle shaft free from the hub.
- Remove the outer nut, lock washer, and inner nut to release the hub assembly.
- Slide the hub off the axle tube and remove the outer bearing.
- Drive out the axle seal and remove the inner bearing and race from the axle tube.
- Clean all mating surfaces and inspect the axle tube for wear or damage.
- Press in the new inner bearing race and install the new inner bearing from AK GM14T.
- Drive the new axle seal into position using a proper seal driver.
- Reinstall the hub, install the new outer bearing, and adjust bearing preload per factory specifications.
- Reinstall the axle shaft, torque retaining bolts to specification, and reinstall the wheel.
