Yukon Gear Axle Bearing & Seal Kit For AMC Model 20 Rear / 1-Piece Axle Design

Yukon Gear AK M20-1PIECE Axle Bearing and Seal Kit for AMC Model 20 Rear Differential (1-Piece Axle)

The AK M20-1PIECE from Yukon Gear is a precision axle bearing and seal kit designed for the AMC Model 20 rear differential using the 1-piece axle shaft design. The Model 20 differential was used extensively in Jeep CJ, Wagoneer, and J-series truck applications from the mid-1970s through the late 1980s. The AK M20-1PIECE covers one side of the axle and includes the axle bearing along with both inner and outer seals needed to return the axle to proper operating condition.

Features and Benefits

• Precision axle bearing matched to the AMC Model 20 1-piece axle shaft bore dimensions
• Inner and outer axle seals included to prevent differential fluid leaks
• Designed specifically for the 1-piece axle variant of the Model 20 rear differential
• Covers Jeep CJ-5, CJ-7, CJ-8 Scrambler, Wagoneer, and J-series (J10, J20) truck applications
• Manufactured to Yukon Gear tolerances for reliable fit and long service life
• Recommended for use during ring and pinion swaps, locker installs, or routine maintenance

Fitment

Specifications

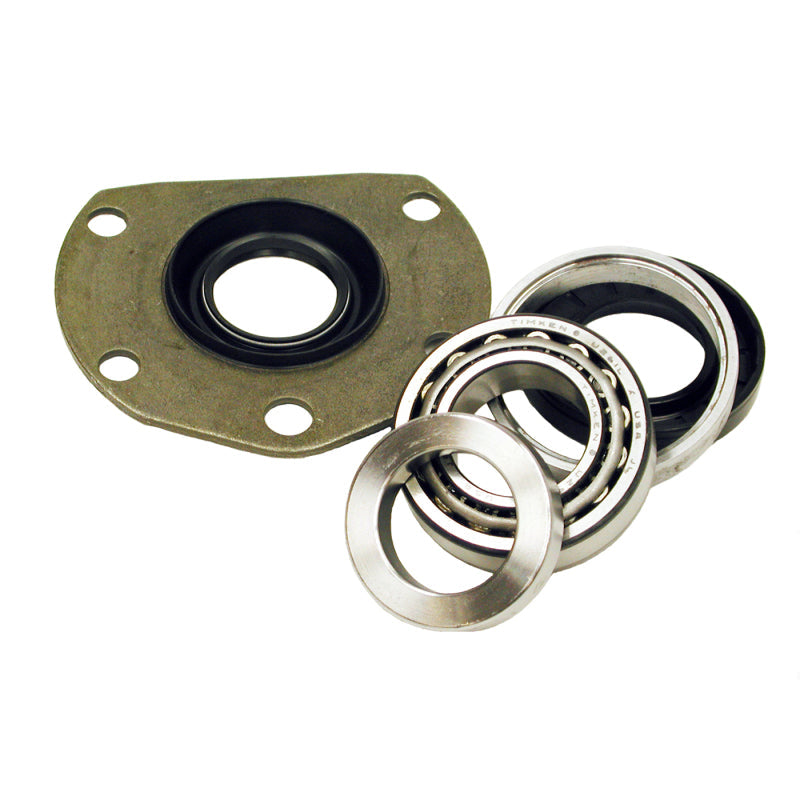

What's Included

• Axle bearing (1) for AMC Model 20 1-piece axle
• Inner axle seal (1)
• Outer axle seal (1)

Frequently Asked Questions

• What differential does AK M20-1PIECE fit? The AK M20-1PIECE fits the AMC Model 20 rear differential with the 1-piece axle shaft design, used in Jeep CJ, Wagoneer, and J-series trucks from approximately 1976 to 1988.
• Does AK M20-1PIECE include a pinion seal? No. The AK M20-1PIECE is an axle bearing and seal kit for the axle tube end. It does not include pinion components or a pinion seal.
• Does this kit cover one axle side or both? The AK M20-1PIECE covers one side of the axle. Two kits are required for a complete axle service on both sides.
• What is the difference between a 1-piece and 2-piece AMC Model 20 axle? The 1-piece axle is a full-length shaft running from the differential through the axle tube to the wheel flange in one continuous piece. The 2-piece design uses an inner half-shaft and outer stub axle. The AK M20-1PIECE is designed specifically for the 1-piece variant. Verify your axle style before ordering.
• Does AK M20-1PIECE fit the Jeep CJ-5? Yes. The AK M20-1PIECE fits Jeep CJ-5 models equipped with the AMC Model 20 rear differential and 1-piece axle shafts, covering model years 1976 through 1981 for CJ-5.
• Does AK M20-1PIECE fit the Jeep CJ-7? Yes. The AK M20-1PIECE fits Jeep CJ-7 models from 1976 through 1985 equipped with the AMC Model 20 1-piece axle rear differential.
• Is this kit covered under the Magnuson-Moss Warranty Act? Yes. As a consumer product sold in the United States, the AK M20-1PIECE is subject to the provisions of the Magnuson-Moss Warranty Act. Yukon Gear provides a limited warranty against defects in materials and workmanship. Installation of aftermarket differential components does not void your vehicle manufacturer's warranty on unrelated systems under federal law.
• Can AK M20-1PIECE be used during a gear ratio change? Yes. It is recommended to inspect and replace axle bearings and seals when performing a ring and pinion swap or locker installation in the AMC Model 20 differential. The AK M20-1PIECE is well suited for this use.

Installation Instructions

1. Safely raise and support the vehicle. Remove the wheel and brake assembly from the side being serviced.
2. Remove the axle shaft retaining plate bolts and slide the 1-piece axle shaft out of the axle tube.
3. Use a slide hammer with axle bearing puller attachment to remove the axle bearing from the axle tube.
4. Remove the old inner and outer axle seals from the axle tube bore.
5. Clean the axle tube bore thoroughly. Inspect for wear or damage.
6. Drive the new inner seal from the AK M20-1PIECE into position in the axle tube using a seal driver.
7. Press or drive the new axle bearing from the AK M20-1PIECE into the axle tube bore until fully seated.
8. Install the new outer seal from the AK M20-1PIECE into the axle tube bore.
9. Lightly coat the axle shaft bearing surface with clean differential fluid. Slide the 1-piece axle shaft back into the tube, taking care not to damage the new seals.
10. Reinstall the axle shaft retaining plate bolts. Torque to manufacturer specification. Reinstall brake assembly and wheel. Lower vehicle and verify differential fluid level.
