Yukon Gear Dana 44 Carrier installation Kit Replacement

Yukon Gear CK D44 Carrier Install Kit for Dana 44 Differential

The CK D44 from Yukon Gear is a complete carrier installation kit engineered for the Dana 44 differential found across a wide range of Ford, Jeep, and GM applications. Whether performing a gear ratio upgrade, replacing a worn carrier, or installing a new locker or limited-slip unit, the CK D44 provides the carrier bearings, races, and shim kit required to complete the job correctly. This kit covers standard Dana 44 axles used in applications spanning several decades of truck, SUV, and off-road vehicle production.

Features and Benefits

• Timken carrier bearings and matched races for precise carrier positioning and load capacity
• Complete shim kit for accurate backlash adjustment during carrier installation
• Engineered for the standard Dana 44 differential used in Ford, Jeep, and GM vehicles
• Suitable for gear swaps, carrier replacements, and locker or posi installations
• Manufactured to Yukon Gear quality standards for reliable performance

Fitment

Specifications

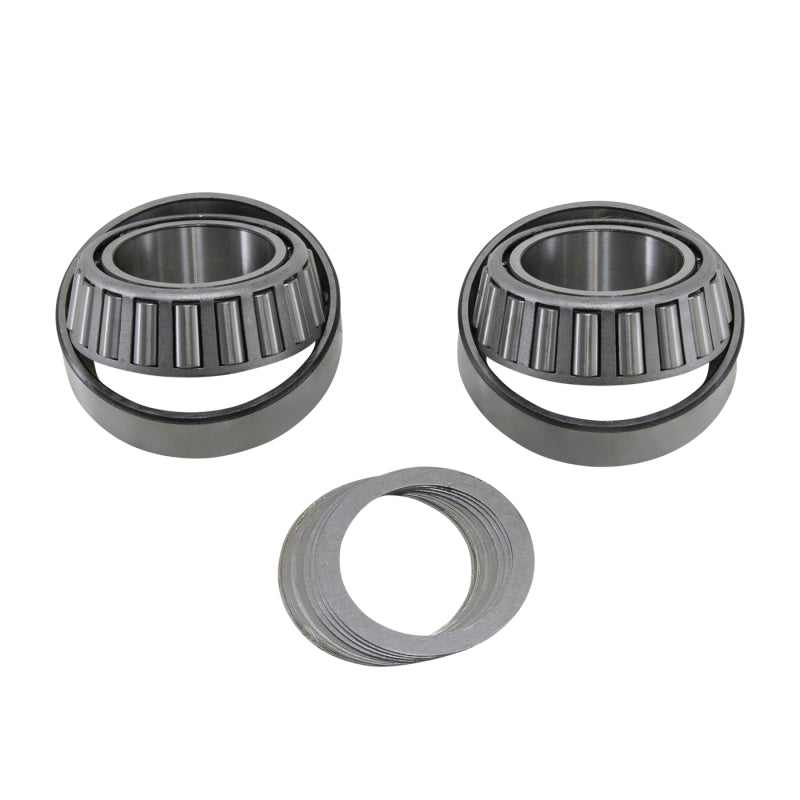

What's Included

• Timken carrier bearings (2)
• Carrier bearing races (2)
• Shim kit for backlash adjustment

Frequently Asked Questions

• What differential does CK D44 fit? The CK D44 fits the standard Dana 44 differential used in a wide range of Ford, Jeep, and GM trucks and SUVs across multiple decades.
• Does CK D44 include a pinion seal? No. The CK D44 is a carrier installation kit and does not include pinion components or a pinion seal. For a complete pinion and carrier kit for the Dana 44, see Yukon's pinion install kits.
• Does CK D44 work for both front and rear Dana 44 applications? The CK D44 is designed for the standard Dana 44 differential housing used in both front and rear applications where the carrier bearing journal dimensions match. Verify your application specifications before ordering.
• Can CK D44 be used when installing a locker or posi unit? Yes. The CK D44 is well suited for use when installing a new locker, limited-slip, or positraction unit in a Dana 44 differential, as carrier bearings and shims are typically replaced during this service.
• Does CK D44 include a shim kit? Yes. The CK D44 includes a complete shim kit for setting backlash during carrier installation.
• What bearings are used in CK D44? The CK D44 uses Timken carrier bearings for high load capacity and reliable long-term performance.
• Is this kit covered under the Magnuson-Moss Warranty Act? Yes. As a consumer product sold in the United States, the CK D44 is subject to the provisions of the Magnuson-Moss Warranty Act. Yukon Gear provides a limited warranty against defects in materials and workmanship. Installation of aftermarket differential components does not void your vehicle manufacturer's warranty on unrelated systems under federal law.
• Does CK D44 fit the Jeep Wrangler JK Dana 44? The CK D44 is designed for the standard Dana 44. The JK uses a modified Dana 44 with different specifications. For the JK, see Yukon kits specific to that application.

Installation Instructions

1. Safely raise and support the vehicle. Drain differential fluid from the Dana 44 housing.
2. Remove the differential cover. Remove carrier bearing caps, marking them for reassembly in their original positions.
3. Remove the differential carrier from the housing.
4. Press off original carrier bearings using a bearing puller. Install new Timken carrier bearings from the CK D44 using a press.
5. Install new carrier bearing races from the CK D44 into the housing bores, fully seated.
6. Install the carrier into the housing. Use the shim kit from the CK D44 to adjust backlash to manufacturer specification.
7. Verify gear contact pattern with marking compound. Adjust shims as needed to achieve correct pattern.
8. Reinstall bearing caps in original positions and torque to specification.
9. Reinstall differential cover with new gasket or RTV. Fill with correct differential fluid to the proper level. Lower vehicle.
