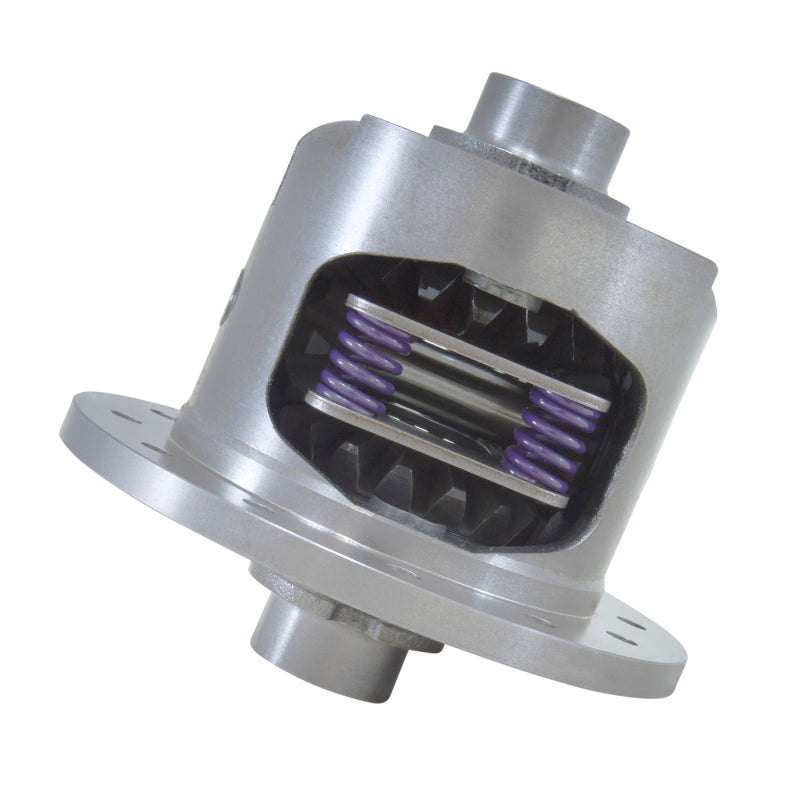

Yukon Gear Dura Grip Positraction For GM 12 Bolt Car w/ 30 Spline Axles / 3.73+

Yukon Gear DuraGrip Positraction for GM 12 Bolt Car with 30 Spline Axles and 3.73 and Up Ratios

Classic GM muscle car and truck owners running 3.73 and numerically higher gear ratios will find the YDGGM12T-4-30-1 Yukon Gear DuraGrip to be the definitive upgrade for the GM 12-bolt rear axle. Part number YDGGM12T-4-30-1 is engineered specifically for 12-bolt housings equipped with 30-spline axle shafts and higher gear ratios, which require the wider carrier spread found in this unit. The YDGGM12T-4-30-1 uses a forged 4320 chromoly spider gear set inside a high-strength nodular iron case to deliver smooth, progressive torque transfer to both rear wheels without requiring the wheel speed difference needed to activate a locker. Whether you are building a street cruiser, a weekend drag car, or a vintage off-road truck, this YDGGM12T-4-30-1 DuraGrip keeps both tires working together.

Features and Benefits

• Fits GM 12-bolt truck (12T) rear differential housing with 30-spline axle shafts
• Designed for 3.73 and numerically higher gear ratios only (requires the wide-spread carrier)
• 4-spring, clutch-style positraction for smooth torque transfer under acceleration
• Forged 4320 chromoly steel spider gears cut to provide maximum tooth strength
• High-strength nodular iron case for crack resistance under extreme loads
• Composite clutch packs for reduced chatter and extended life
• Fully rebuildable with available replacement clutch packs
• Assembled in the United States
• Compatible with carrier bearing part numbers included in tech notes
• One-year warranty against manufacturer defects

Vehicle Fitment

Specifications

What Is Included

• One fully assembled DuraGrip positraction carrier
• Composite clutch packs and 4-spring preload assembly pre-installed
• Forged 4320 chromoly spider gears installed

Frequently Asked Questions

Why does YDGGM12T-4-30-1 only fit 3.73 and higher ratios?
The GM 12-bolt uses two different carrier spreads. Lower ratios (2.76 through 3.42) require the narrow-spread carrier, while 3.73 and higher require the wide-spread carrier. The YDGGM12T-4-30-1 is the wide-spread version for 3.73 and up.

Does YDGGM12T-4-30-1 fit the 12-bolt passenger car axle?
No. The YDGGM12T-4-30-1 is designed for the 12-bolt truck (8.875 inch ring gear). The 12-bolt passenger car uses a smaller 8.2 inch ring gear with a different carrier. See YDGGM8.2-3-28-1 for the car application.

What spline count does this unit require?
The YDGGM12T-4-30-1 is designed for 30-spline axle shafts. If your 12-bolt axle has 28-spline shafts, this unit will not fit.

Is this unit compatible with factory 12-bolt ring gear bolts?
Yes, the unit accepts standard 12-bolt truck ring gear hardware. Ensure bolts are torqued to the correct specification during installation.

Does the Magnuson-Moss Warranty Act protect my classic truck after this installation?
Under the Magnuson-Moss Warranty Act, installing an aftermarket differential such as the YDGGM12T-4-30-1 does not void an existing warranty unless the manufacturer proves the part caused the failure in question.

What gear oil should I use with YDGGM12T-4-30-1?
Yukon Gear recommends high-grade non-synthetic GL-5 gear oil combined with Yukon LSD additive (part number OILADD). Synthetic oil is not recommended and may cause chatter or aggressive engagement.

Can I use this with factory 12-bolt spider gears?
No. The YDGGM12T-4-30-1 is a complete carrier assembly with its own internal spider gears and clutch packs. It replaces the entire open differential carrier.

How do I know which carrier spread my 12-bolt has?
Identify your gear ratio via axle tag or VIN decode. Ratios of 2.76, 3.08, 3.31, and 3.42 use the narrow spread. Ratios of 3.73, 4.10, 4.56, and 4.88 use the wide spread. The YDGGM12T-4-30-1 fits the wide-spread (3.73 and up) application.

Installation Instructions

1. Drain differential fluid and remove the cover, driveshaft, and axle shafts.
2. Mark bearing caps for position, then remove them and extract the original carrier with side bearing shims.
3. Remove the ring gear from the original carrier and transfer it to the new YDGGM12T-4-30-1 unit using correct torque on ring gear bolts.
4. Install side bearings on the new carrier if not already pressed on. Reinstall with the original shims as a starting point.
5. Set backlash to 0.006 to 0.010 inch using a dial indicator. Adjust side shims as needed.
6. Confirm carrier bearing preload and gear contact pattern with marking compound.
7. Reinstall bearing caps to their original side and torque to specification.
8. Clean the cover sealing surface and reinstall the cover. Fill with GL-5 oil and LSD additive.
9. Reinstall axle shafts and driveshaft. Verify all fastener torques.
10. Break in the new unit with 500 miles of normal driving before towing or performance use.
