Yukon Gear & Install Kit Package For Jeep JK (Non-Rubicon) in a 5.13 Ratio

Yukon Gear Install Kit Package for Jeep JK Non-Rubicon, 5.13 Ratio (YGK014)

The YGK014 install kit package from Yukon Gear is a purpose-built re-gear solution for non-Rubicon Jeep Wrangler JK owners who demand maximum low-speed torque multiplication and rock-crawling capability. YGK014 delivers the 5.13 gear ratio to both the Dana 30 front axle and Dana 44 rear axle simultaneously, making it the most aggressive factory-replacement ratio available for the non-Rubicon JK platform. This ratio is the go-to choice for JK builds running 37-inch or larger tires, heavily modified rigs, or builds where highway efficiency is secondary to off-road performance. YGK014 includes ring and pinion sets for both axles along with all necessary install hardware for a complete re-gear in a single purchase.

Features and Benefits

• Complete re-gear kit for Dana 30 front and Dana 44 rear axles in one package
• 5.13 gear ratio provides maximum low-speed torque multiplication for 37-inch-plus tire builds
• Includes ring and pinion sets for both axles plus all install hardware (bearings, seals, shim packs, crush sleeves)
• Yukon Gear ring and pinion sets machined to high tolerances for proper mesh pattern and reliable operation
• Eliminates the need to source front and rear kits separately
• Important: If your JK currently has the 3.21 factory ratio, a new front carrier is required and sold separately
• For non-Rubicon JK only (Dana 30 front axle) - not for Rubicon Dana 44 front applications
• Fits 2007-2018 Jeep Wrangler JK and Unlimited JK non-Rubicon

Vehicle Fitment

Specifications

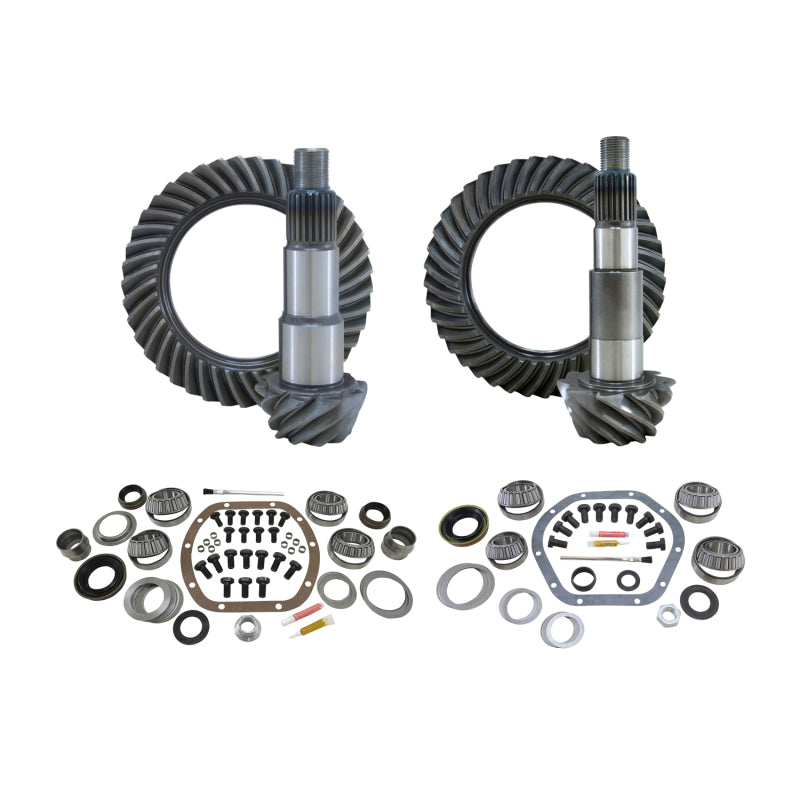

What's Included

• Ring and pinion set for Dana 30 front axle (5.13 ratio)
• Ring and pinion set for Dana 44 rear axle (5.13 ratio)
• Front install kit (pinion bearing set, pinion seal, shim pack, crush sleeve)
• Rear install kit (pinion bearing set, pinion seal, shim pack, crush sleeve)
• Differential gaskets for front and rear

Frequently Asked Questions

What is YGK014?
YGK014 is a complete gear and install kit package for regearing the Dana 30 front and Dana 44 rear axles of a non-Rubicon Jeep Wrangler JK to a 5.13 ratio. The kit includes ring and pinion sets for both axles plus all installation hardware.

Who should choose 5.13 over 4.88 or 4.56?
A 5.13 gear ratio is the best choice for JK owners running 37-inch or larger tires, heavily modified rigs with significant added weight, or builds primarily used for rock crawling and technical off-road use. Compared to 4.88, the 5.13 provides noticeably more low-speed torque but results in higher RPM at highway speeds. If your build will see regular highway use with 35-inch tires, 4.56 or 4.88 may be a better balance.

Does YGK014 fit Rubicon JK models?
No. YGK014 is designed for non-Rubicon JK Wranglers with a Dana 30 front axle. Rubicon models have a Dana 44 front axle and need a different kit. See YGK015 (4.88) or YGK016 (5.13) for Rubicon-specific gear packages.

What happens if I have the 3.21 factory gear ratio?
A JK equipped with the 3.21 factory ratio uses a front open carrier that is not compatible with a 5.13 ring gear. A new front carrier sized for the 5.13 ratio must be purchased separately and installed at the same time as YGK014.

Can I install just the rear and do the front later?
No. Front and rear axles must always run the same gear ratio. Installing a 5.13 rear while leaving a mismatched front ratio will cause severe drivetrain binding and damage to the transfer case when in 4WD. Always re-gear both axles at the same time.

Does installing YGK014 affect my warranty?
Under the Magnuson-Moss Warranty Act, a manufacturer cannot void your vehicle warranty solely because you installed an aftermarket component such as YGK014, unless they can demonstrate the part directly caused the specific claimed failure. Consult your dealership with any warranty questions.

What special tools are needed for installation?
Proper ring and pinion installation requires a bearing press, dial indicator with magnetic base, inch-pound torque wrench, a pinion depth gauge or equivalent setup tool, and gear marking compound. Having the correct tools is essential for setting pinion depth, preload, and backlash accurately.

What warranty applies to YGK014?
Yukon Gear provides a limited warranty on YGK014 against defects in materials and workmanship. Contact Yukon Gear for specific warranty terms and claim information.

Installation Instructions

1. Drain differential fluid from both the front and rear differentials. Remove differential covers and clean housing mating surfaces thoroughly.
2. Disconnect front and rear driveshafts from the differential flanges.
3. Remove carrier assemblies from both differential housings. Inspect and replace carrier bearings if they show wear.
4. If the vehicle originally had the 3.21 factory gear ratio, install a compatible 5.13 front carrier before proceeding with ring gear installation.
5. Press the new 5.13 ring gears onto the carriers for both front and rear. Torque ring gear bolts to specification using thread-locking compound as directed.
6. Press new pinion bearing cups and cones onto the new pinion gear shafts. Always use new pinion bearings and do not reuse old ones.
7. Establish correct pinion depth in each housing using the included shim pack and a dial indicator. This dimension is critical for proper tooth contact geometry.
8. Install the pinion into the housing with the new crush sleeve. Tighten the pinion nut gradually while measuring bearing preload with an inch-pound torque wrench until the target preload is achieved.
9. Install the carrier assemblies and measure ring and pinion backlash with a dial indicator. Adjust side bearing shims until backlash is within the 0.005-0.009 inch specification.
10. Apply gear marking compound to the ring gear teeth and rotate the assembly to check the tooth contact pattern. Adjust pinion depth shims if the contact pattern is not centered on the tooth face.
11. Install the new differential cover gaskets included in the kit and reinstall differential covers. Torque cover bolts evenly to specification.
12. Reconnect the driveshafts, fill both differentials with the correct gear lubricant, and perform a test drive. Inspect for leaks and re-check fluid levels after the first drive cycle.
