Yukon Gear Master Overhaul Kit For 11+ Ford 9.75in Diff

Complete Differential Rebuild: Yukon YK F9.75-D for 2011-and-Up Ford 9.75in Differentials

The YK F9.75-D is Yukon Gear and Axle's master overhaul kit specifically engineered for 2011-and-newer Ford 9.75-inch differentials. This comprehensive YK F9.75-D rebuild kit uses Timken bearings and races throughout and includes all seals, shims, hardware, and installation aids needed to correctly rebuild the rear differential found on F-150, Transit, and Expedition vehicles. With the YK F9.75-D, you get the most complete, application-specific kit on the market for the 2011+ Ford 9.75 gear design, which uses a 2-inch pinion bearing journal and 31-spline pinion shaft.

Features and Benefits

• Specifically designed for 2011-and-newer Ford 9.75in differential gear design with 2-inch pinion bearing journal

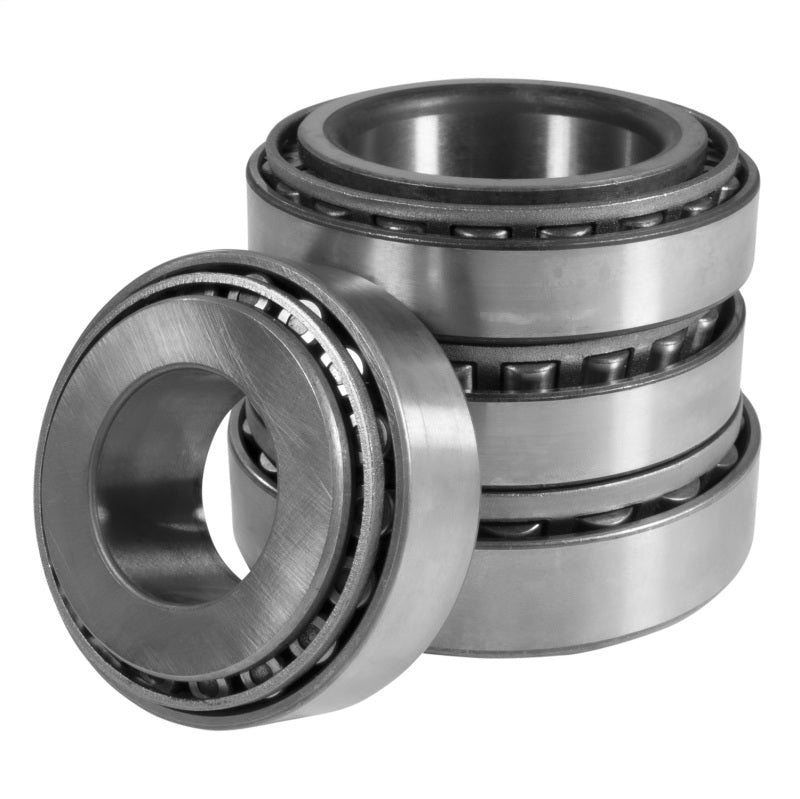

• Timken carrier and pinion bearings with matching races for maximum durability
• Complete pinion depth and carrier shim set for precision setup
• OEM-grade pinion seal stops fluid leaks at the pinion flange
• Pinion nut and crush sleeve included for correct bearing preload
• Thread locker and gear marking compound with brush for professional-quality installation
• Differential cover gasket included for a clean, leak-free reassembly
• 1-year limited manufacturer warranty

Vehicle Fitment

Specifications

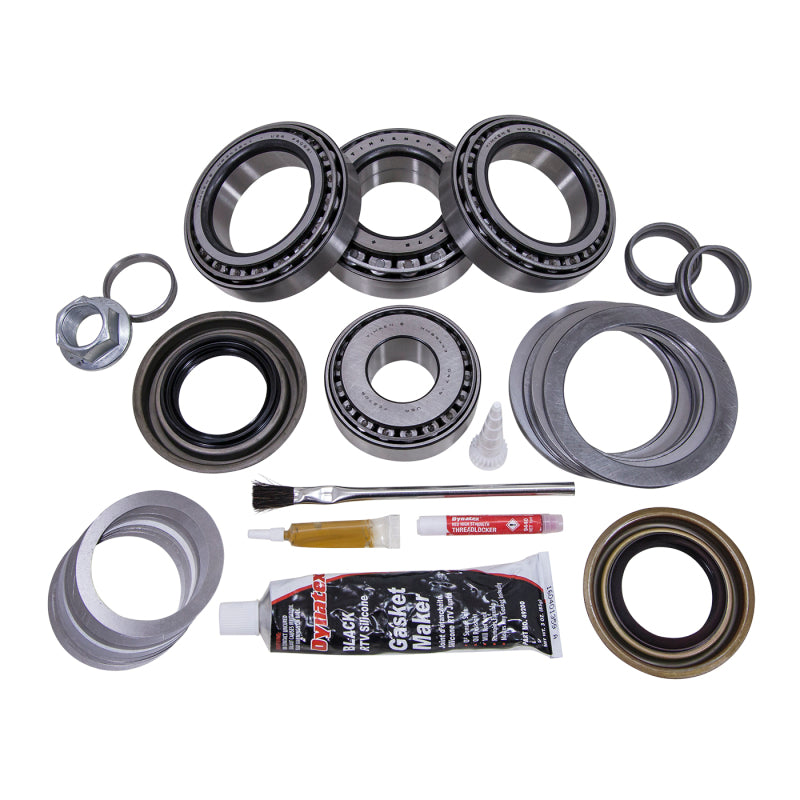

What Is Included

• Timken carrier bearings and races (pair)
• Timken pinion bearings and races (front and rear)
• Pinion seal
• Complete shim kit (carrier and pinion depth shims)
• Pinion nut
• Crush sleeve
• Ring gear bolts
• Thread locker
• Gear marking compound with brush
• Differential cover gasket

Frequently Asked Questions

Will the YK F9.75-D work on a 2010 or earlier F-150?
No. The YK F9.75-D is designed for the 2011-and-newer Ford 9.75in gear design which uses a different pinion bearing journal size. For 2008-2010 housings being converted to 2011+ gears, use the YK F9.75-CNV-K instead.

Does the YK F9.75-D cover the Magnuson-Moss Warranty Act?
Yes. Yukon Gear and Axle offers a 1-year limited warranty in accordance with the Magnuson-Moss Warranty Act. This does not void your vehicle's factory warranty when the product is properly installed and used as intended.

What break-in steps are required after rebuilding with this kit?
For the first 500 miles, vary your speed and avoid sustained highway driving or heavy towing. Change the differential gear oil after the 500-mile break-in period to remove initial wear debris.

What tools are needed to install the YK F9.75-D?
Required tools include a bearing press, pinion depth gauge, dial indicator, torque wrench, bearing puller, seal driver set, and a micrometer. The gear marking compound supplied in the YK F9.75-D is essential for verifying gear contact pattern.

Does this fit Ford Transit vans?
Yes. The YK F9.75-D fits 2015-2017 Ford Transit-150, Transit-250, and Transit-350 models equipped with the 9.75-inch rear differential.

Can I reuse old shims from the original setup?
If you are replacing a worn bearing, the original shim stack may be used as a starting point. However, always verify correct pinion depth, backlash, and preload with a dial indicator and marking compound before final assembly.

Is this kit compatible with aftermarket ring and pinion gear sets?
Yes. The YK F9.75-D is compatible with both OEM and aftermarket ring and pinion sets designed for the 2011+ Ford 9.75-inch differential.

How long does a professional installation typically take?
A differential overhaul with the YK F9.75-D typically requires 4 to 6 hours for an experienced drivetrain technician. First-time builders should budget additional time for careful measurement and pattern verification.

Installation Instructions

1. Drain differential fluid and remove the cover. Clean all mating surfaces.
2. Note carrier bearing cap orientation and mark before removal. Remove carrier assembly.
3. Press off old carrier bearings. Install new Timken carrier bearings with a press.
4. Remove pinion yoke, nut, and crush sleeve. Drive out pinion and press off pinion bearings.
5. Press new Timken pinion bearing races into the housing. Press new bearings onto the pinion shaft.
6. Select correct pinion depth shims using a depth gauge and install pinion assembly.
7. Install new crush sleeve. Install pinion yoke and torque pinion nut to achieve specified rolling preload.
8. Adjust carrier side shims for correct backlash (0.006-0.010 in. typical) and preload. Torque bearing caps.
9. Apply thread locker to ring gear bolts. Torque ring gear bolts to specification in a cross pattern.
10. Verify gear contact pattern with marking compound. Adjust as needed until pattern is correct.
11. Drive in new pinion seal with a seal driver. Install differential cover with included gasket.
12. Fill to specification with correct gear oil. Test for leaks after initial drive.
