Yukon Gear Master Overhaul Kit For 2014+ GM 9.5in 12 Bolt Differential

Complete Differential Rebuild: Yukon YK GM9.5-12B for 2014-and-Up GM 9.5in 12-Bolt Differentials

The YK GM9.5-12B is Yukon Gear and Axle's master overhaul kit engineered specifically for the 2014-and-newer GM 9.5-inch 12-bolt rear differential. This comprehensive YK GM9.5-12B complete rebuild kit uses Timken bearings and races throughout and includes all seals, shims, ring gear bolts, crush sleeve, and hardware needed to correctly rebuild the rear differential found on Silverado 1500, Sierra 1500, Tahoe, Suburban, Yukon, and Escalade trucks and SUVs. If your vehicle uses the 9.76-inch variant (typically with the 6.2L engine), confirm the axle code from the casting before ordering.

Features and Benefits

• Designed for the 2014-and-newer GM 9.5in 12-bolt rear differential (12-bolt cover)
• Timken carrier and pinion bearings with matching races for long-lasting performance
• Complete carrier and pinion depth shim set for precise setup
• OEM-spec pinion seal prevents differential fluid leaks
• Ring gear bolts, pinion nut, and crush sleeve all included
• Thread locker, gear marking compound with brush, and gasket included
• Note: The 9.76-inch variant was primarily used with the 6.2L engine. Confirm axle model by checking the casting number on the passenger side housing webbing near the pinion
• 1-year limited manufacturer warranty

Vehicle Fitment

Specifications

What Is Included

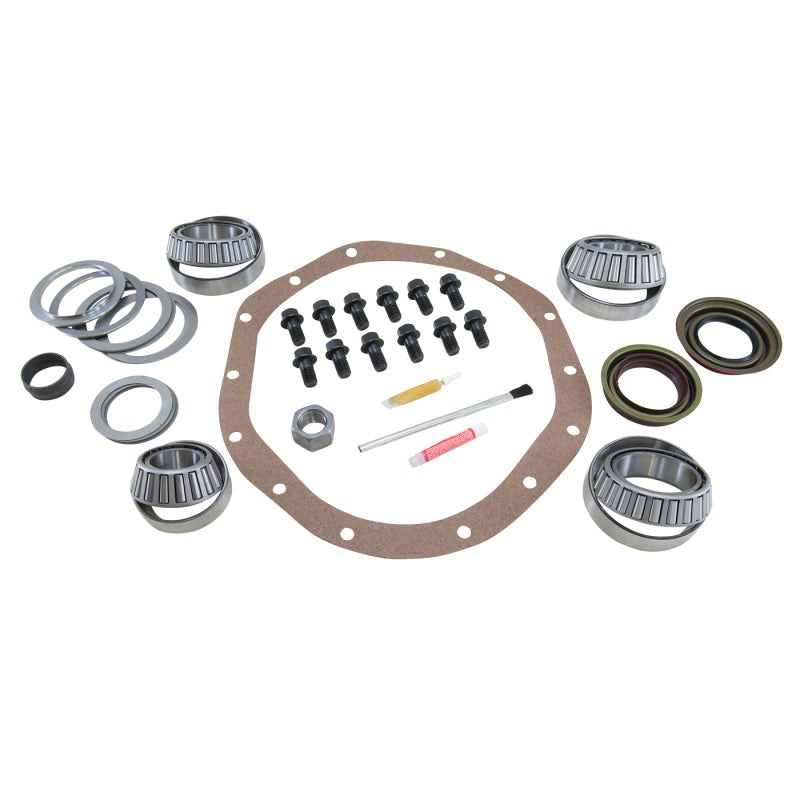

• Timken carrier bearings and races (pair)
• Timken pinion bearings and races (front and rear)
• Pinion seal
• Complete shim kit (carrier and pinion depth shims)
• Ring gear bolts
• Pinion nut
• Crush sleeve
• Thread locker
• Gear marking compound with brush
• Differential cover gasket

Frequently Asked Questions

How do I verify whether my GM has the 9.5in or 9.76in differential?
The model number is cast into the top passenger side housing webbing near the pinion. The 9.76-inch variant was primarily used with the 6.2L engine. Check this casting before ordering the YK GM9.5-12B.

Does this kit comply with the Magnuson-Moss Warranty Act?
Yes. Yukon Gear and Axle's 1-year limited warranty is offered in accordance with the Magnuson-Moss Warranty Act. Using the YK GM9.5-12B does not void your vehicle's factory drivetrain warranty when installed properly.

What break-in procedure is recommended after installation?
Avoid sustained highway speeds and heavy towing for the first 500 miles after installation. Change the differential fluid after this break-in period to remove initial wear particles from the gears and bearings.

What tools are required to install the YK GM9.5-12B?
You will need a bearing press, pinion depth gauge, dial indicator, torque wrench, bearing puller, seal driver, and micrometer. The gear marking compound included in the YK GM9.5-12B is required to verify the gear contact pattern during setup.

Does this kit fit both the 8-bolt and 12-bolt versions of the GM 9.5in differential?
No. The YK GM9.5-12B is for the 2014-and-newer 12-bolt rear cover design. The earlier 8-bolt design uses a different kit.

Can I use this kit without replacing the ring and pinion gears?
Yes. This kit provides all necessary parts for a full bearing, seal, and hardware refresh without requiring new gears if your existing ring and pinion are in serviceable condition.

What gear oil should I use with the GM 9.5in differential?
GM recommends 75W-90 synthetic gear oil for most 9.5in applications. If equipped with a limited-slip differential, add the appropriate friction modifier. Check your vehicle's service manual for the correct specification.

Is this kit compatible with aftermarket ring and pinion sets?
Yes. The YK GM9.5-12B is designed for use with OEM and Yukon or other compatible aftermarket ring and pinion sets for the 2014+ GM 9.5in 12-bolt differential.

Installation Instructions

1. Drain differential fluid and remove the 12-bolt differential cover. Clean all sealing surfaces thoroughly.
2. Mark and remove carrier bearing caps. Remove carrier assembly from differential housing.
3. Press off original carrier bearings. Install new Timken carrier bearings using a press.
4. Remove pinion yoke, pinion nut, and old crush sleeve. Drive out pinion shaft and press off pinion bearings.
5. Press new Timken pinion bearing races into housing bores. Press new pinion bearings onto pinion shaft.
6. Determine correct pinion depth shim using a depth gauge tool. Install shims and pinion assembly.
7. Install new crush sleeve. Reinstall pinion yoke and torque pinion nut while checking rolling preload.
8. Install carrier with correct side shims for specified backlash and bearing preload. Reinstall marked caps to torque spec.
9. Apply thread locker to all ring gear bolts. Torque in a cross pattern to specification.
10. Check gear contact pattern using marking compound. Adjust shims until pattern is centered on the ring gear face.
11. Install new pinion seal using a seal driver. Apply gasket material and reinstall differential cover.
12. Fill with correct gear oil to full mark and inspect for leaks.
