Yukon Gear Master Overhaul Kit For Chrysler 9.25in Front Diff For 2003+ Dodge Truck

Complete Rebuild Kit for Chrysler 9.25in Front Differential (YK C9.25-F)

The YK C9.25-F Yukon Gear Master Overhaul Kit delivers everything you need for a professional-quality complete rebuild kit of the Chrysler 9.25in front differential found in 2003 and newer Dodge and Ram trucks. Engineered with Timken bearings and races, YK C9.25-F provides the reliability and precision required for demanding 4WD applications. Every component is hand-selected for exact fitment to the AAM 9.25in front axle, so your rebuild starts and finishes without a trip back to the parts counter.

Features and Benefits

• Timken bearings and races for extended service life and precise preload
• Complete shim kit engineered for the Chrysler 9.25in front application
• Axle seals and pinion seal included to prevent fluid loss after rebuild
• Ring gear bolts, pinion nut, and crush sleeve eliminate the need for additional hardware
• Oil baffles and slingers maintain proper lubrication throughout the differential
• Thread locker and marking compound with brush support accurate gear setup
• Silicone sealant included for cover gasket replacement
• More tailor-made kits than any other manufacturer ensures exact fitment
• Fits the reverse-rotation 9.25in ring gear, 33-spline axle front differential used on 2003+ trucks
• 1-year manufacturer warranty on all included components

Vehicle Fitment

Specifications

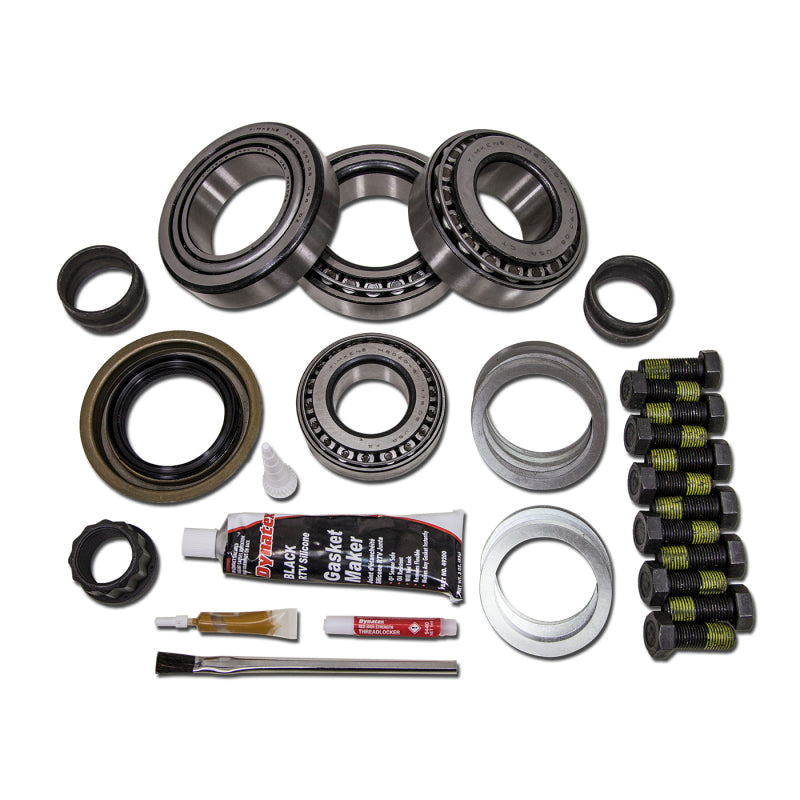

What's Included

• Timken carrier bearings and races
• Timken pinion bearings and races
• Pinion seal
• Axle seals (pair)
• Complete shim kit
• Ring gear bolts
• Pinion nut
• Crush sleeve
• Oil baffles and slingers
• Thread locking compound
• Marking compound with brush
• Silicone sealant

Frequently Asked Questions

What differential does the YK C9.25-F fit?
The YK C9.25-F fits the Chrysler (AAM) 9.25in reverse-rotation front differential used in 2003 and newer Dodge Ram 1500, 2500, and 3500 4WD trucks.

Does this kit include bearings and seals?
Yes. The YK C9.25-F includes Timken carrier bearings and races, Timken pinion bearings and races, a pinion seal, and axle seals. Nothing is left out of a complete rebuild.

Will the YK C9.25-F void my factory warranty?
Under the Magnuson-Moss Warranty Act, a manufacturer cannot void your vehicle warranty solely because you used aftermarket parts unless they can prove the part caused the damage. Using YK C9.25-F for a differential rebuild does not automatically void your powertrain warranty.

Is there a break-in procedure after installing this kit?
Yes. For the first 500 miles after installation, vary vehicle speed and avoid extended high-speed cruising or heavy towing. Check for fluid leaks at 100 miles. This allows bearing and gear surfaces to seat properly and extends differential life.

What tools are needed to install this kit?
You will need a bearing press or slide hammer for carrier and pinion bearing installation, a dial indicator for backlash measurement, an inch-pound torque wrench for pinion preload, a foot-pound torque wrench for ring gear bolts and bearing caps, snap ring pliers, and a seal driver set.

Is this the correct kit for both the front and rear Chrysler 9.25in differential?
No. The front and rear Chrysler 9.25in differentials are not interchangeable. The YK C9.25-F is specifically engineered for the reverse-rotation 9.25in front differential with 33-spline axles and 14 cover bolts. The rear 9.25in uses 31-spline axles and 12 cover bolts and requires a different kit.

Does this kit fit the 2003-2006 and 2007+ versions of the 9.25in front differential?
Yes. The YK C9.25-F is designed to cover both generations of the AAM Chrysler 9.25in front differential used in Dodge Ram and Ram trucks from 2003 through 2018.

What type of gear oil should I use after rebuilding with YK C9.25-F?
Use a GL-5 rated gear oil at the viscosity specified in your factory service manual (typically 75W-90 full synthetic). No friction modifier is required for the front differential. Change the fluid again at 500 miles after rebuild to remove any break-in debris.

What is the warranty on this kit?
The YK C9.25-F carries a 1-year manufacturer warranty against defects in materials and workmanship.

Installation Instructions

1. Raise and safely support the vehicle. Drain differential fluid into a clean pan and inspect for metal particles.
2. Remove front axle shafts, then remove the differential carrier assembly from the housing.
3. Press out old carrier bearings using a bearing separator and press or slide hammer.
4. Remove the pinion nut and yoke, then drive out the old pinion using a brass drift.
5. Press out the old pinion bearings and bearing cups from the housing.
6. Clean all mating surfaces, housing bores, and the carrier thoroughly.
7. Press new Timken pinion bearing cups from the YK C9.25-F kit into the housing bores until fully seated.
8. Install the new crush sleeve on the pinion stem, then seat the front pinion bearing and install the new pinion seal.
9. Set pinion depth using the shim kit included with YK C9.25-F and the marking compound and brush to verify gear contact pattern.
10. Press new Timken carrier bearings onto the carrier, then set carrier bearing preload using the adjuster shims.
11. Torque ring gear bolts to factory specification (approximately 103 ft-lbs) using the new ring gear bolts included.
12. Set backlash to 0.005-0.007 inches and verify gear contact pattern with marking compound.
13. Torque bearing cap bolts to specification. Apply thread locker to fasteners where specified.
14. Install new axle seals using a seal driver, reinstall axle shafts, and torque all fasteners to spec.
15. Apply silicone sealant to the differential cover, install cover with new bolts, and fill with proper gear oil.
16. Perform the 500-mile break-in procedure and inspect for leaks.
