Yukon Gear Master Overhaul Kit for Dana 30 Short Pinion Front Differential

Yukon YK D30-TJ Dana 30 Short Pinion Front Differential Complete Rebuild Kit

The YK D30-TJ from Yukon Gear and Axle is the purpose-built master overhaul kit for the Dana 30 short-pinion front differential used in 1997-2006 Jeep Wrangler TJ, 1996-2001 Jeep Cherokee XJ, and 1996-2004 Jeep Grand Cherokee WJ models. When your TJ or XJ front axle develops bearing noise or fluid leaks, the YK D30-TJ delivers every component required for a thorough complete rebuild kit. Timken bearings, a full shim set, all seals, and complete hardware are included. The YK D30-TJ is the complete solution for rebuilding the Dana 30 short-pinion front differential.

Features and Benefits

• Designed specifically for the Dana 30 short-pinion front differential in Jeep Wrangler TJ, Cherokee XJ, and Grand Cherokee WJ
• Timken carrier bearings and races for reliable strength and long service life
• Timken pinion bearings and races for accurate pinion depth and quiet operation
• Complete pinion depth shim set for correct gear mesh and contact pattern
• Complete carrier shim set for proper backlash and bearing preload
• Pinion seal and axle seals to prevent fluid leaks
• Ring gear bolts, pinion nut, and crush sleeve for a complete hardware refresh
• Gear marking compound with brush and thread-locking compound included
• Differential cover gasket included
• Compatible with OEM and aftermarket ring and pinion gear sets
• All components quality-verified to Yukon Gear standards

Vehicle Fitment

Specifications

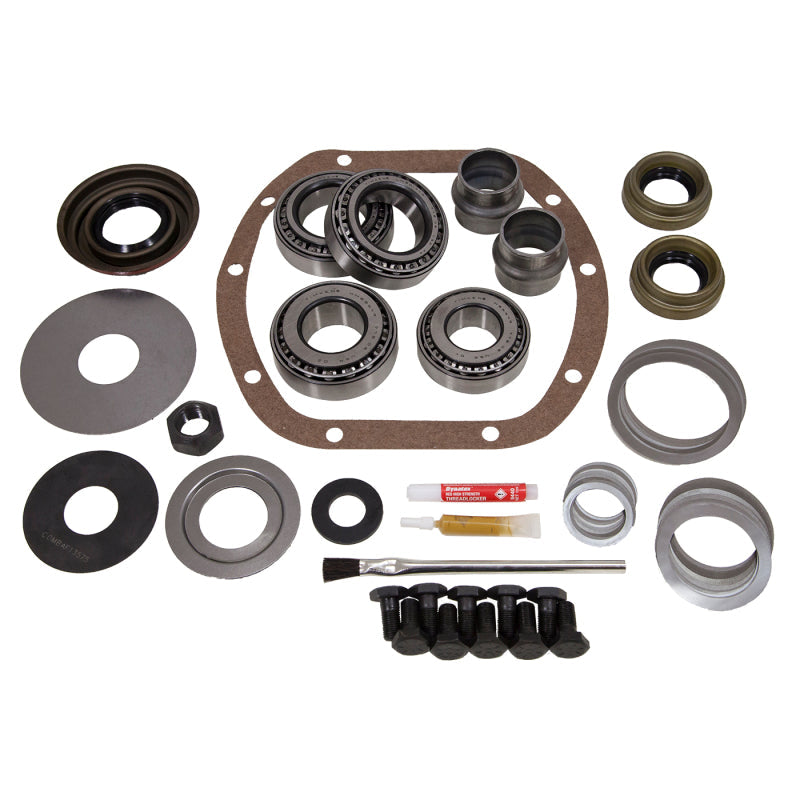

What Is Included

• Timken front carrier bearing and race
• Timken rear carrier bearing and race
• Timken inner pinion bearing and race
• Timken outer pinion bearing and race
• Pinion seal
• Axle seals (pair)
• Complete pinion depth shim set
• Complete carrier shim set
• Ring gear bolt set
• Pinion nut
• Crush sleeve
• Thread-locking compound
• Gear marking compound with brush
• Differential cover gasket

Frequently Asked Questions

What is the Dana 30 short-pinion and how does it differ from the long-pinion version?
The Dana 30 short-pinion (TJ) front differential was used in 1997-2006 Wrangler TJ and 1996-2001 Cherokee XJ models. The short-pinion design has a different pinion depth and bearing setup than the older long-pinion Dana 30. The YK D30-TJ is engineered specifically for the short-pinion version.

Does the YK D30-TJ include Timken bearings?
Yes. The YK D30-TJ includes Timken carrier bearings with races and Timken pinion bearings with races for trusted precision and durability.

Can I use this kit when installing aftermarket gears?
Yes. The complete shim set in the YK D30-TJ supports correct setup for both OEM and aftermarket ring and pinion gear ratios.

Is a differential cover gasket included?
Yes. A differential cover gasket is included in the YK D30-TJ kit for a complete rebuild.

Does this kit fit the Jeep Cherokee XJ?
Yes. The YK D30-TJ covers 1996-2001 Jeep Cherokee XJ models with the Dana 30 short-pinion front axle. Confirm your axle type before ordering.

Will installing the YK D30-TJ void my vehicle warranty under the Magnuson-Moss Warranty Act?
Under the Magnuson-Moss Warranty Act, a vehicle manufacturer cannot void your warranty solely because an aftermarket part was installed. The warranty is voided only if the manufacturer proves the part caused the specific failure. Consult your warranty documents and a qualified professional.

What warranty does Yukon Gear provide?
Yukon Gear and Axle offers a limited warranty on the YK D30-TJ covering defects in materials and workmanship. Contact Yukon Gear for full terms.

Is professional installation recommended?
Yes. Setting pinion depth, backlash, and bearing preload requires precision tooling and expertise. A qualified drivetrain technician is strongly recommended.

Installation Instructions

1. Raise and support the vehicle on jack stands. Drain differential fluid from the front housing.
2. Disconnect the front driveshaft from the differential flange.
3. Remove the differential cover and clean all mating surfaces.
4. Mark bearing caps for correct reinstallation orientation.
5. Remove carrier bearing caps and extract the carrier assembly.
6. Press old carrier bearings off the carrier and discard with races.
7. Remove the pinion nut and yoke, then drive out the pinion shaft.
8. Press out old pinion bearings and remove the pinion seal from the housing.
9. Clean all bearing bores and housing surfaces.
10. Press new Timken pinion bearing races into the housing.
11. Determine correct pinion shim and install new inner pinion bearing and shim on the pinion shaft.
12. Install new crush sleeve and outer pinion bearing. Install new pinion seal. Thread on pinion nut and torque to specification while monitoring rotating torque.
13. Press new Timken carrier bearings onto the carrier. Install carrier with correct shims to achieve specified backlash.
14. Verify gear contact pattern with marking compound. Adjust shims as needed.
15. Torque bearing caps to spec. Install new gasket and cover, fill with correct gear oil, reinstall driveshaft, and lower the vehicle.
