Yukon Gear Master Overhaul Kit YK D44

Yukon YK D44 Dana 44 Standard Rotation Front Differential Complete Rebuild Kit

The YK D44 from Yukon Gear and Axle is a comprehensive master overhaul kit designed for the Dana 44 standard rotation front differential with 30-spline axles, covering a wide range of classic American trucks, Jeeps, and off-road vehicles from the 1960s through the early 1990s. When your vintage 4x4's front differential needs new bearings, fresh seals, or a full rebuild, the YK D44 delivers everything you need in one complete rebuild kit. Timken bearings, a full shim set, all seals, and complete hardware are included. From classic Ford Broncos and F-series trucks to Chevrolet K-series trucks and Jeep CJ and Wrangler models, the YK D44 is the right choice for restoring your front differential to like-new operation.

Features and Benefits

• Covers Dana 44 standard rotation front differential with 30-spline axles across a broad range of domestic trucks and Jeeps
• Timken carrier bearings and races for exceptional load handling and service life
• Timken pinion bearings and races for accurate pinion depth and smooth operation
• Complete pinion depth shim set for correct gear mesh and minimal noise
• Complete carrier shim set for proper backlash and bearing preload
• Pinion seal and axle seals to prevent fluid loss
• Ring gear bolts, pinion nut, and crush sleeve for a complete hardware refresh
• Gear marking compound with brush and thread-locking compound included
• Differential cover gasket included
• Compatible with OEM and aftermarket ring and pinion gear sets
• All components quality-verified to Yukon Gear standards

Vehicle Fitment

Specifications

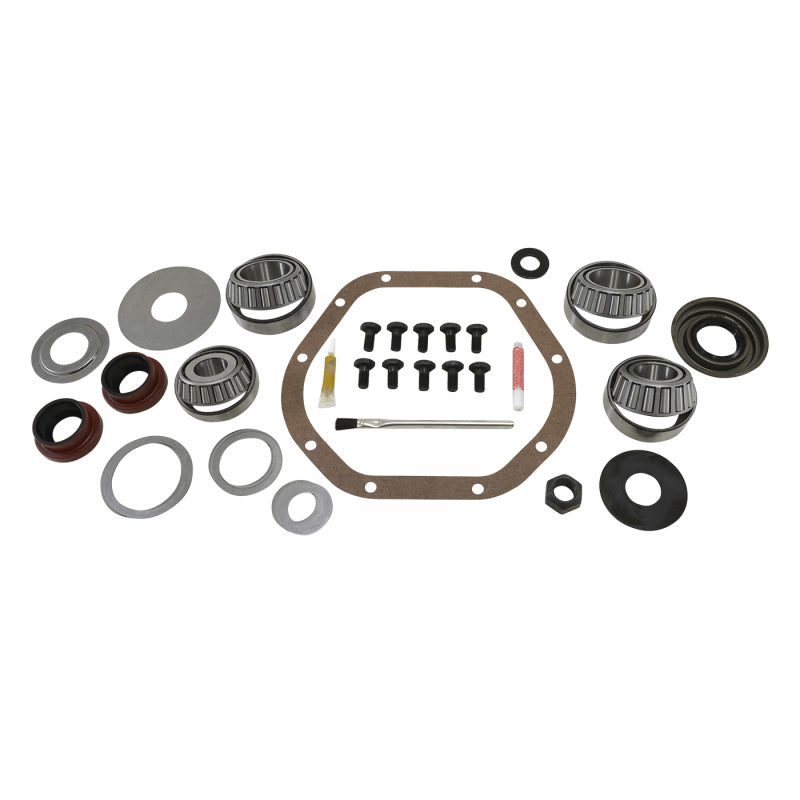

What Is Included

• Timken front carrier bearing and race
• Timken rear carrier bearing and race
• Timken inner pinion bearing and race
• Timken outer pinion bearing and race
• Pinion seal
• Axle seals (pair)
• Complete pinion depth shim set
• Complete carrier shim set
• Ring gear bolt set
• Pinion nut
• Crush sleeve
• Thread-locking compound
• Gear marking compound with brush
• Differential cover gasket

Frequently Asked Questions

What vehicles use the Dana 44 standard rotation front differential?
The Dana 44 front differential was widely used across American trucks and off-road vehicles from the 1960s through the mid-1990s, including Ford Bronco and F-series trucks, Chevrolet and GMC K-series trucks, Dodge W-series trucks, and Jeep CJ, Wrangler, Comanche, Wagoneer, and Grand Wagoneer models. The YK D44 covers a broad range of these applications with 30-spline axles.

How do I know if I have a standard rotation Dana 44?
The Dana 44 standard rotation front axle has the pinion centered below the axle centerline and rotates in the standard direction. Reverse-cut (high-pinion) Dana 44s require a different kit. Confirm your specific axle type before ordering the YK D44.

Does the YK D44 include Timken bearings?
Yes. The YK D44 includes Timken carrier bearings with races and Timken pinion bearings with races for industry-leading durability.

Can I use this kit with aftermarket ring and pinion gears?
Yes. The comprehensive shim set in the YK D44 supports proper setup with both OEM and aftermarket gear ratios.

Is a differential cover gasket included?
Yes. A differential cover gasket is included in the YK D44 kit.

Will installing the YK D44 void my vehicle warranty under the Magnuson-Moss Warranty Act?
Under the Magnuson-Moss Warranty Act, a vehicle manufacturer cannot void your warranty simply because an aftermarket component was used. The warranty is only voided if the manufacturer proves the aftermarket part caused the failure. Consult your warranty documentation and a qualified professional.

What warranty does Yukon Gear offer on the YK D44?
Yukon Gear and Axle provides a limited warranty on this product covering defects in materials and workmanship. Contact Yukon Gear for complete warranty terms.

Is professional installation recommended?
Yes. Accurate pinion depth, backlash, and bearing preload settings are critical for differential longevity and quiet operation. Professional installation by an experienced drivetrain technician is strongly recommended.

Installation Instructions

1. Raise and support the vehicle on jack stands. Drain differential fluid from the front diff housing.
2. Disconnect the front driveshaft and support it out of the way.
3. Remove front axle shafts as required for your specific vehicle configuration.
4. Remove the differential cover and clean all gasket mating surfaces.
5. Mark bearing caps and housing for correct reinstallation.
6. Remove carrier bearing caps and extract the carrier assembly.
7. Press off old carrier bearings and discard with races.
8. Remove pinion nut and yoke, then drive out the pinion shaft from the housing.
9. Press out old pinion bearings and remove the pinion seal.
10. Thoroughly clean all bearing bores and housing surfaces.
11. Press new Timken pinion bearing races into housing using the correct installation drivers.
12. Select the correct pinion shim based on pinion depth measurement. Install new inner pinion bearing and shim on the pinion.
13. Install new crush sleeve and outer pinion bearing. Install new pinion seal. Thread on pinion nut and torque to specification while monitoring rotating torque.
14. Press new Timken carrier bearings onto the carrier. Install carrier with correct shims to achieve specified backlash per gear manufacturer's specifications.
15. Verify gear contact pattern with marking compound. Adjust shims as needed. Torque caps to spec, install new gasket and cover, fill with correct gear oil, reinstall axle shafts and driveshaft, and lower the vehicle.
