Yukon Gear Master Overhaul Kit for GM 8.5in Open Carrier Differential

Yukon Gear YK GM8.5 Master Overhaul Kit for GM 8.5in Open Carrier Differential

The YK GM8.5 is a complete rebuild kit engineered for the General Motors 8.5in rear differential with an open carrier, one of the most common rear axles fitted to Chevrolet and GMC trucks, vans, and SUVs from 1970 through 2000. Whether you are rebuilding a worn axle in a daily driver or restoring a classic GMT400 pickup, the YK GM8.5 includes genuine Timken bearings, precision shims, seals, and all hardware for a professional-grade overhaul. Yukon Gear designed the YK GM8.5 complete rebuild kit specifically for the open-carrier 8.5in, so every component is matched and ready to install.

Features and Benefits

• Premium Timken carrier bearings and pinion bearings for the GM 8.5in open-carrier application
• Precision ground shim sets for accurate pinion depth and carrier preload adjustment
• OEM-quality pinion seal and axle seals to prevent gear oil leaks
• Ring gear bolts, pinion nut, and crush sleeve included for a complete hardware refresh
• Gear marking compound and brush for verifying ring-and-pinion contact pattern during setup
• Thread-locking compound for ring gear bolt installation
• Differential cover gasket included for a clean, leak-free reinstall
• Designed for the open (non-posi) carrier GM 8.5in rear differential
• All components packaged and quality-controlled by Yukon Gear

Fitment

Specifications

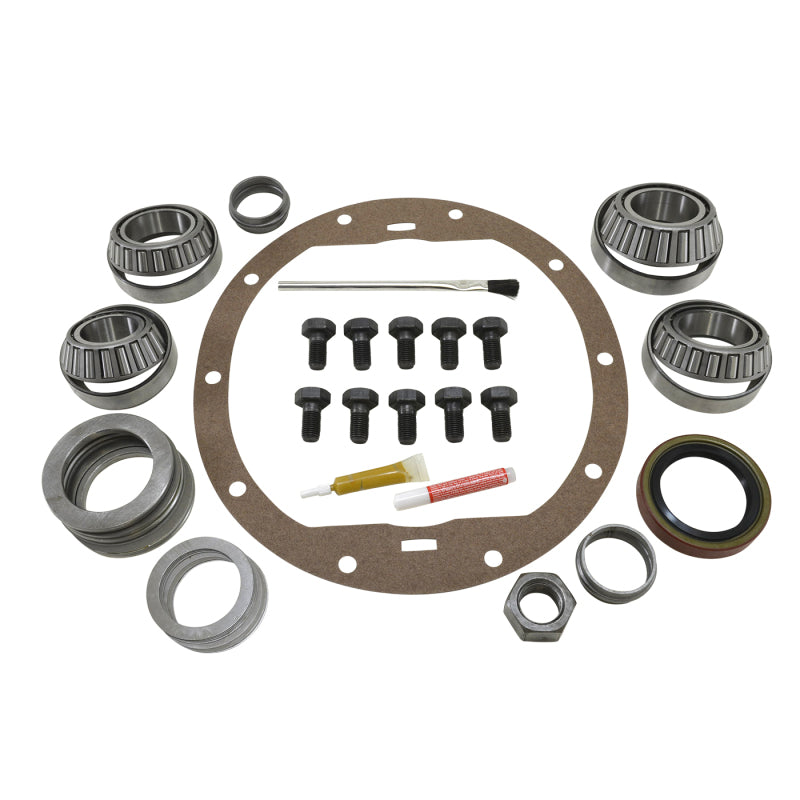

What's Included

• Timken carrier bearings with races (2 sets)
• Timken pinion bearings with races (front and rear)
• Pinion seal
• Axle seals (pair)
• Complete pinion depth shim set
• Complete carrier shim set
• Ring gear bolts
• Pinion nut
• Crush sleeve
• Thread-locking compound
• Gear marking compound with brush
• Differential cover gasket

Frequently Asked Questions

Q: What is the difference between the YK GM8.5 and YK GM8.5-HD?
A: The YK GM8.5 is for GM 8.5in differentials with a standard open carrier. The YK GM8.5-HD is for GM 8.5in differentials equipped with an aftermarket positraction or high-performance limited-slip unit. Confirm your carrier type before ordering.

Q: What trucks and SUVs does this kit fit?
A: The YK GM8.5 complete rebuild kit covers Chevrolet and GMC C/K pickups, Suburban, Blazer, Jimmy, and related GM trucks and SUVs from 1970 to 2000 equipped with the open-carrier 8.5in rear differential.

Q: Does this kit include Timken bearings?
A: Yes. The YK GM8.5 includes genuine Timken carrier bearings and pinion bearings with all races.

Q: Will this kit void my GM warranty?
A: Under the Magnuson-Moss Warranty Act, a manufacturer cannot void your warranty solely because you installed an aftermarket rebuild kit. Warranty denial requires proof that the aftermarket part caused the specific failure.

Q: Is a crush sleeve included?
A: Yes. The YK GM8.5 includes a new crush sleeve, pinion nut, and ring gear bolts for a complete hardware refresh.

Q: Does this kit work if I am adding a positraction unit?
A: If you are installing an aftermarket positraction or limited-slip carrier, use the YK GM8.5-HD instead. The YK GM8.5 is for open-carrier applications.

Q: Is gear marking compound included?
A: Yes. The YK GM8.5 includes gear marking compound and a brush for verifying ring-and-pinion contact pattern during setup.

Q: Is a differential cover gasket included?
A: Yes. A differential cover gasket is included in the YK GM8.5 complete rebuild kit for a clean, leak-free reinstall.

Installation Instructions

1. Drain the differential gear oil and remove the rear axle shafts per your service manual.
2. Remove the differential cover and thoroughly clean both mating surfaces.
3. Remove the carrier assembly and inspect the housing bore for wear or damage.
4. Extract the pinion shaft and note the original shim stack thickness for reference.
5. Press off the old pinion bearings and install the new Timken pinion bearings from the YK GM8.5 kit.
6. Use the included shim set to establish correct pinion depth; verify with a dial indicator.
7. Press new carrier bearings and races onto the carrier assembly.
8. Install the carrier, set backlash to GM specification, and verify contact pattern using the included marking compound.
9. Apply included thread-locking compound to ring gear bolts and torque to specification.
10. Install the new pinion seal and torque the pinion nut to achieve correct pinion bearing preload.
11. Install new axle seals, reinstall axle shafts, and torque all fasteners to specification.
12. Install the cover with the new gasket and fill with the appropriate gear oil type and quantity.
13. Road test the vehicle and inspect for leaks after the initial break-in period.
