Yukon Gear Master Overhaul Kit For Jeep Wrangler JL Dana 30 186mm Front Diff w/o Axle Seals

Yukon Gear Complete Differential Rebuild Kit for the Dana 30 186mm Front

The YK D30JL-FRONT Yukon Gear Master Overhaul Kit contains every component required to perform a complete rebuild of the Dana 30 186mm Front differential found in the Jeep Wrangler JL. Built around industry-leading Timken bearings and precision-engineered seals, this kit delivers the accuracy and durability that professional rebuilders and serious off-road enthusiasts depend on. Yukon Gear engineers have tailored this kit specifically for this application, and it does not include axle seals so it is the correct kit for the standard JL Dana 30 186mm configuration.

Features and Benefits

• Timken Bearings and Races - Both carrier and pinion bearing sets sourced from Timken for precise load-handling and long service life
• Complete Shim Set - Full range of shims for accurate pinion depth and carrier bearing preload setup on the first attempt
• High-Quality Pinion Seal - Engineered to prevent fluid contamination and leaks under extreme load and temperature cycles
• Ring Gear Bolts and Pinion Nut - Grade-correct fasteners included so nothing is left to chance during assembly
• Crush Sleeve - Correct crush sleeve for proper pinion bearing preload in this application
• Thread Locker and Marking Compound - Setup consumables included so the technician can verify gear contact pattern and secure fasteners
• Application-Specific Engineering - Yukon conducts extensive research to ensure all parts match exact tolerances for the Dana 30 186mm Front
• One-Year Limited Warranty - Backed against manufacturer defects for twelve months from the date of purchase

Vehicle Fitment

Product Specifications

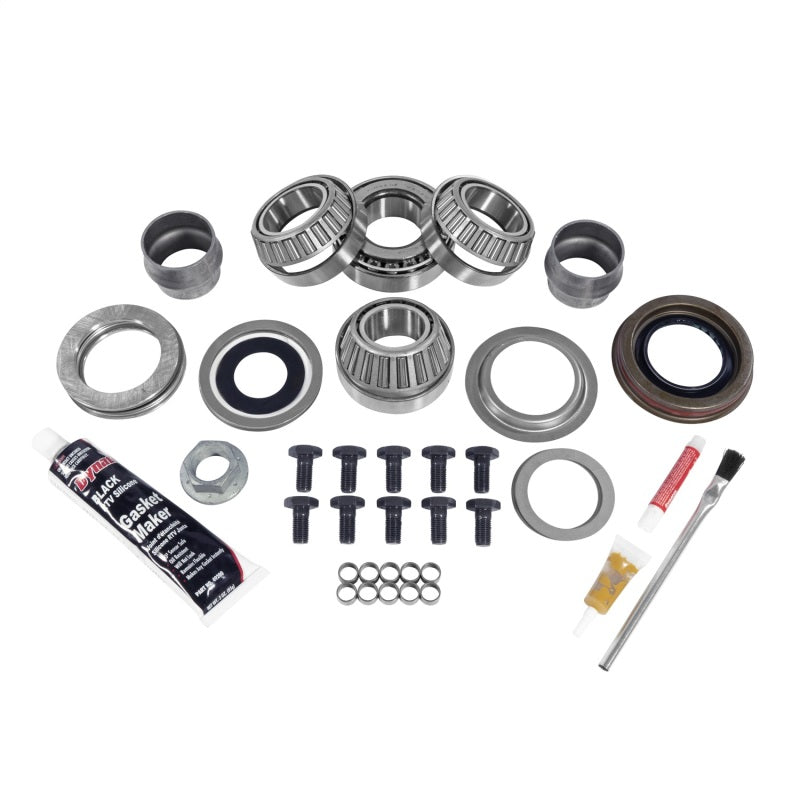

What Is Included

The YK D30JL-FRONT kit includes all components listed below for a complete differential overhaul.

• Timken carrier bearings with races (inner and outer)
• Timken pinion bearings with races (inner and outer)
• Pinion seal
• Complete shim kit (carrier and pinion depth shims)
• Ring gear bolts (full set)
• Pinion nut
• Crush sleeve
• Thread-locking compound
• Marking compound with application brush
• Cover gasket
• Note: Axle seals are not included in this kit configuration

Frequently Asked Questions

• Q: Does installing this kit void my vehicle warranty?
  A: Under the Magnuson-Moss Warranty Act, a manufacturer cannot void your vehicle warranty simply because you installed an aftermarket part. They must demonstrate that the aftermarket part caused the specific failure. High-quality components like those in YK D30JL-FRONT protect your drivetrain investment.
• Q: Does this kit include a crush sleeve?
  A: Yes. A crush sleeve engineered for the Dana 30 186mm front differential is included for proper pinion bearing preload without sourcing additional parts.
• Q: Why does this kit not include axle seals?
  A: The YK D30JL-FRONT is designed for the standard JL Wrangler Dana 30 186mm differential rebuild without axle seal replacement. This is the correct configuration for most differential rebuilds where axle seals are serviced separately or are not required.
• Q: What special tools are required?
  A: You will need a pinion bearing press and puller set, torque wrench, inch-pound torque wrench for preload measurement, bearing race driver set, dial indicator for backlash measurement, and a gear marking compound brush.
• Q: Will this kit work with aftermarket ring and pinion gears?
  A: Yes. The shim set covers the full adjustment range whether you are reinstalling factory gears or fitting a new aftermarket gear ratio.
• Q: Are Timken bearings better than standard replacement bearings?
  A: Timken is an industry leader in tapered roller bearing manufacturing. Their bearings exceed OEM specifications for radial and axial load capacity, making them ideal for off-road differential rebuilds.
• Q: What does the warranty on YK D30JL-FRONT cover?
  A: Yukon Gear covers defects in materials and workmanship for twelve months from the date of original purchase. Normal wear and improper installation are not covered.
• Q: Can a home mechanic complete this rebuild?
  A: An experienced home mechanic with proper tools can complete the job, but professional installation is recommended to ensure correct gear lash, preload, and contact pattern setup.

Installation Overview

Follow these steps to install the YK D30JL-FRONT master overhaul kit.

1. Lift the vehicle safely and drain the differential fluid completely.
2. Remove the front axle shafts and disconnect the differential housing.
3. Mark the bearing caps and remove the carrier assembly, noting all shim locations.
4. Drive out the pinion, removing old bearings, races, and seal.
5. Press in new Timken pinion bearing races using a race driver set.
6. Press the new inner Timken pinion bearing onto the pinion shaft and install the new crush sleeve.
7. Install the pinion into the housing, add the outer pinion bearing, and torque the pinion nut while monitoring preload until specification is achieved.
8. Install new carrier bearings on the carrier, reinstall with original shim stack, and verify backlash with a dial indicator.
9. Apply marking compound and check gear contact pattern. Adjust shims until pattern is centered on the drive face.
10. Apply thread locker to ring gear bolts and torque to specification.
11. Install the new pinion seal and reinstall carrier bearing caps to specification.
12. Clean and reinstall the differential cover with included gasket.
13. Fill with correct gear oil to fill plug level and road-test the vehicle.
