Yukon Gear Master Overhaul Kit For Toyota V6 and Turbo 4 Diff / 02 & Down

Complete Rebuild Kit for Toyota V6 and Turbo 4 Rear Differential, 2002 and Earlier (YK TV6)

The YK TV6 Yukon Gear Master Overhaul Kit is a complete rebuild kit purpose-built for the Toyota V6 and Turbo 4 rear differential found in 1985-2002 4Runner, Pickup, and related applications, as well as certain later Tacoma and GX470 models. Using KOYO bearings and races along with premium seals and small parts, YK TV6 delivers the precision fitment that Toyota's iconic rear differentials demand. Whether you are refreshing a high-mileage Pickup or rebuilding a trail-worn 4Runner, this kit provides everything needed to start and finish the job right.

Features and Benefits

• KOYO bearings and races for precise preload and long service life in Toyota applications
• Complete shim kit included for accurate pinion depth and carrier preload setup
• All seals included to prevent fluid contamination after rebuild
• Ring gear bolts and pinion nut eliminate separate hardware sourcing
• Crush sleeve for correct pinion bearing preload on initial assembly
• Oil baffles and slingers maintain proper lubrication flow inside the differential
• Thread locker and marking compound with brush for proper gear mesh setup
• Gasket included for cover resealing
• Covers both V6 and Turbo 4 applications in the same rear differential housing
• 1-year manufacturer warranty on all included components

Vehicle Fitment

Specifications

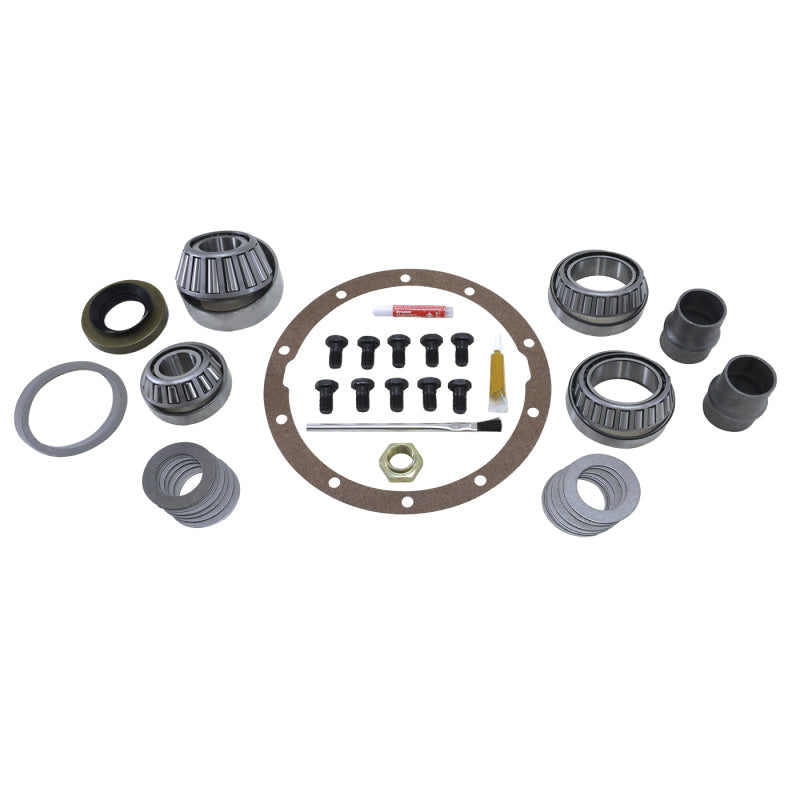

What's Included

• KOYO carrier bearings and races
• KOYO pinion bearings and races
• Pinion seal
• Complete shim kit
• Ring gear bolts
• Pinion nut
• Crush sleeve
• Oil baffles and slingers
• Thread locking compound
• Marking compound with brush
• Gasket

Frequently Asked Questions

What differential does the YK TV6 fit?
The YK TV6 is designed for the Toyota V6 and Turbo 4 rear differential, primarily covering 1985-2002 4Runner and Pickup applications as well as 2003-2009 4Runner, FJ Cruiser, Lexus GX470, and 2016-2017 Tacoma models that share the same differential housing.

Does this kit use Timken or KOYO bearings?
The YK TV6 uses KOYO bearings and races. KOYO is a premium Japanese bearing brand commonly used in Toyota applications and provides excellent performance in these differentials.

Will the YK TV6 void my factory warranty?
Under the Magnuson-Moss Warranty Act, a manufacturer cannot void your vehicle warranty solely due to the use of aftermarket parts unless they can prove the part caused the specific damage. Installing YK TV6 components does not automatically void your powertrain warranty.

Is there a break-in procedure after installing this kit?
Yes. Vary vehicle speed for the first 500 miles after installation and avoid sustained high-speed driving or heavy towing. Check for any fluid seepage at 100 miles. This allows bearing races and gear tooth surfaces to properly seat and extends overall differential life.

What tools are required for installation?
You will need a bearing press, dial indicator for backlash measurement, inch-pound torque wrench for pinion preload, foot-pound torque wrench for ring gear bolts, snap ring pliers, seal driver set, and a pinion depth gauge or equivalent setup tools.

Does the YK TV6 fit the 2016-2017 Tacoma?
Yes. Certain 2016-2017 Toyota Tacoma trims (SR, SR5, TRD Off-Road, TRD Pro, TRD Sport) use the same Toyota V6 rear differential and are covered by the YK TV6 kit. Verify your Tacoma's rear differential type before ordering.

What is the difference between YK TV6 and YK TV6-B?
The YK TV6 covers the Toyota V6 and Turbo 4 rear differential for 2002 and earlier applications (with some later overlap), while the YK TV6-B is designed for the 29-spline Toyota V6 rear differential used in 2003 and newer applications. Confirm your differential's spline count before selecting a kit.

What gear oil should be used after the rebuild?
Use a GL-5 rated gear oil at the viscosity specified in your Toyota or Lexus factory service manual (typically 75W-90 or 80W-90). Change the fluid at 500 miles after the rebuild to flush any break-in particles.

Installation Instructions

1. Raise and safely support the vehicle. Drain differential fluid and inspect for metal particles.
2. Remove rear axle shafts and disconnect the driveshaft from the differential flange.
3. Remove the differential carrier from the housing and mark bearing caps for correct reinstallation.
4. Press out old carrier bearings using a bearing separator.
5. Remove the pinion nut and yoke, then drive out the old pinion shaft.
6. Press old pinion bearing cups out of the housing bores and remove the old shims.
7. Clean all mating surfaces, bores, and carrier components thoroughly.
8. Press new KOYO pinion bearing cups from the YK TV6 kit into the housing until fully seated.
9. Select the correct pinion depth shim using the shim kit and verify with marking compound and brush.
10. Install the new crush sleeve on the pinion, install front bearing, and press in the new pinion seal.
11. Install the pinion yoke and tighten the new pinion nut to achieve the specified rotational preload (approximately 14-19 in-lbs for new bearings).
12. Press new KOYO carrier bearings onto the differential carrier.
13. Set carrier bearing preload and backlash using the adjuster shims. Target backlash is typically 0.005-0.007 inches.
14. Verify gear contact pattern with marking compound, then torque ring gear bolts using the included hardware.
15. Reinstall bearing caps in original position and torque to specification. Apply thread locker as specified.
16. Install the gasket, reinstall axle shafts, and fill with proper gear oil. Reconnect the driveshaft and torque all fasteners.
17. Perform the 500-mile break-in procedure and inspect for leaks at 100 miles.
