Yukon Gear Pinion Install Kit For 03+ Chrysler 9.25in Front Diff

Yukon Gear PK C9.25-F Pinion Install Kit for 2003-Up Chrysler 9.25in Front Differential

The PK C9.25-F is a Yukon Gear pinion install kit engineered for the Chrysler 9.25-inch AAM front differential found in 2003 and newer Dodge and Ram trucks. PK C9.25-F delivers every component needed to set pinion depth and preload during a ring and pinion gear change on lower-mileage axles where carrier bearings can be reused. Timken bearings and races pair with a high-quality pinion seal, complete shim kit, crush sleeve, and marking compound so technicians can achieve a verified gear pattern before final assembly. PK C9.25-F eliminates the need to source individual parts across multiple vendors.

Features and Benefits

• Timken Pinion Bearings and Races - industry-standard quality for long service life and correct preload
• Complete Pinion Shim Kit - full range of shim thicknesses for precise depth adjustment
• OEM-Grade Pinion Seal - prevents differential fluid leaks after installation
• Crush Sleeve Included - sets correct pinion bearing preload on the Chrysler 9.25in front
• Marking Compound with Brush - allows gear pattern verification before final torque
• Application-Specific Design - Yukon researches each kit to ensure all required parts are included for PK C9.25-F
• 1-Year Warranty - covered against manufacturer defects

Vehicle Fitment

Specifications

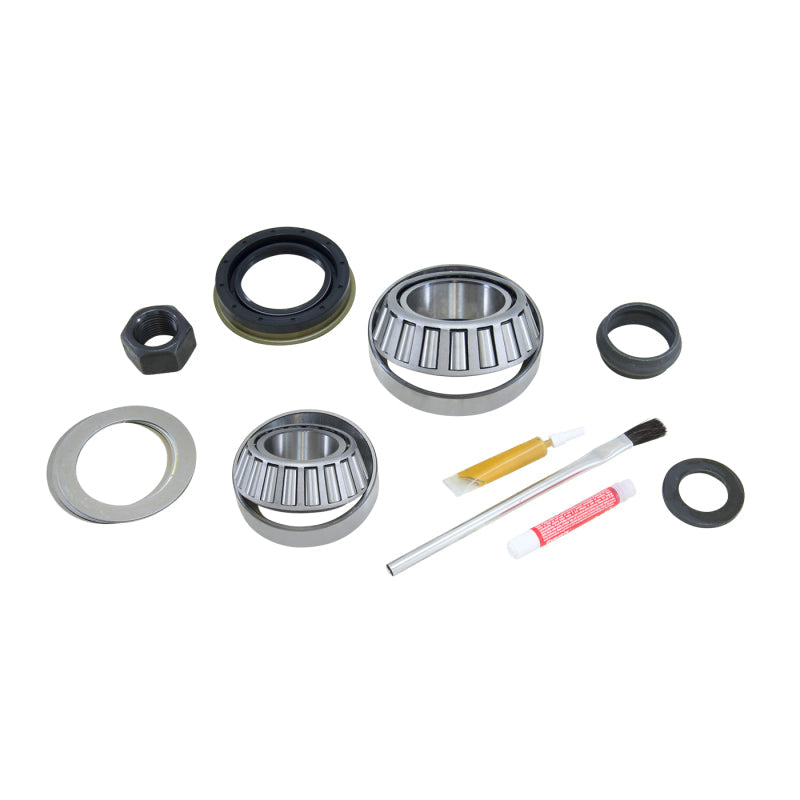

What Is Included

• Timken front pinion bearing and race
• Timken rear pinion bearing and race
• High-quality pinion seal
• Crush sleeve
• Complete pinion shim kit
• Marking compound
• Application brush

Frequently Asked Questions

What differential does PK C9.25-F fit?
PK C9.25-F fits the Chrysler 9.25-inch AAM front differential found in 2003 and newer Dodge and Ram 1500, 2500, and 3500 trucks.

Does PK C9.25-F include a pinion seal?
Yes, PK C9.25-F includes a high-quality pinion seal to prevent differential fluid leaks after installation.

Do I need to replace carrier bearings when installing PK C9.25-F?
PK C9.25-F is designed for lower-mileage vehicles where the carrier bearings and races can be reused. If carrier bearings show wear, they should be replaced separately.

Does this kit include a crush sleeve?
Yes, PK C9.25-F includes a crush sleeve for setting correct pinion bearing preload on the Chrysler 9.25in front differential.

What bearings are used in PK C9.25-F?
Yukon uses Timken bearings and races in PK C9.25-F for proven precision and durability.

Is PK C9.25-F a complete kit for gear installation?
PK C9.25-F covers all pinion-side components. A full master overhaul kit would be required if carrier bearings also need replacement.

Does the Magnuson-Moss Warranty Act apply to this product?
Yes. Under the Magnuson-Moss Warranty Act, Yukon Gear provides a written 1-year warranty against manufacturer defects. This warranty does not void the vehicle manufacturer's warranty for unrelated systems.

Is PK C9.25-F covered by California Proposition 65?
Yes. This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Installation Instructions

1. Drain differential fluid and remove differential cover to access the carrier and pinion assembly.
2. Remove the driveshaft, pinion nut, and yoke, then press out the old pinion and bearings.
3. Press the new Timken pinion bearings from PK C9.25-F onto the pinion shaft.
4. Install pinion depth shims from the PK C9.25-F shim kit to achieve the correct pinion depth measurement.
5. Install the new crush sleeve from PK C9.25-F into the differential housing.
6. Apply marking compound to the ring gear teeth and perform a pattern check by rotating the assembly.
7. Adjust shims as needed until the drive and coast gear patterns are centered on the ring gear face.
8. Install the new pinion seal from PK C9.25-F using a seal driver to the proper depth.
9. Reinstall the yoke and tighten the pinion nut to factory-specified torque, checking preload with an inch-pound torque wrench.
10. Reinstall the differential cover with a new gasket, fill with the correct fluid type and quantity, and reinstall the driveshaft.

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
