Yukon Gear Replacement Axle Bearing and Seal Kit For Jeep JK Rear

Yukon Gear AK D44JK Replacement Axle Bearing and Seal Kit for Jeep JK Rear Dana 44

The AK D44JK from Yukon Gear is a precision replacement axle bearing and seal kit designed specifically for the 2007-2017 Jeep Wrangler JK rear Dana 44 axle. Trusted by Jeep enthusiasts and professionals rebuilding their JK for daily driving or off-road performance, the AK D44JK provides one side of the axle bearing and seal assembly needed to restore proper function and prevent differential fluid contamination.

Features and Benefits

• Precision axle bearing matched to the Jeep JK Dana 44 rear axle bore specifications
• Axle seal included to prevent rear differential fluid from migrating into the brake assembly
• Engineered specifically for the 2007-2017 Jeep Wrangler JK platform
• Covers all JK trim levels including Sport, Sahara, Rubicon, and Unlimited variants
• Manufactured to Yukon Gear tolerances for a reliable fit
• Recommended during ring and pinion swaps, locker installs, or whenever axle shafts are removed

Fitment

Specifications

What's Included

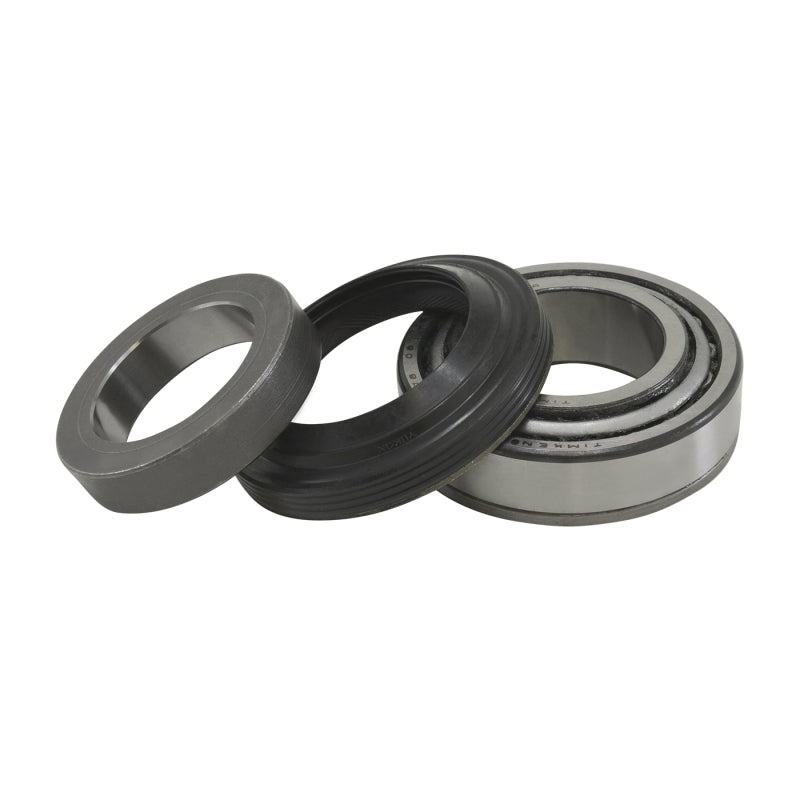

• Axle bearing (1) for Jeep JK Dana 44 rear
• Axle seal (1)

Frequently Asked Questions

• What differential does AK D44JK fit? The AK D44JK fits the Dana 44 rear axle in 2007-2017 Jeep Wrangler JK, covering all trims including Sport, Sahara, Rubicon, and all Unlimited variants.
• Does AK D44JK include a pinion seal? No. The AK D44JK is an axle bearing and seal kit for the axle tube end. It does not include pinion components or a pinion seal.
• Does AK D44JK cover one side or both sides? The AK D44JK covers one side of the axle. Two kits are required to service both driver and passenger side axle bearings.
• Does AK D44JK fit the Jeep JK Rubicon? Yes. The AK D44JK fits the Jeep Wrangler JK Rubicon, which uses the same Dana 44 rear axle as all other JK trims.
• Does AK D44JK fit the 2018 or newer Jeep Wrangler JL? No. The AK D44JK is specific to the JK generation (2007-2017). The JL Wrangler uses a different axle design and requires a different kit.
• Should I replace axle bearings when doing a gear swap on the JK Dana 44? Yes. Yukon Gear recommends replacing axle bearings and seals whenever axle shafts are removed. The AK D44JK provides the correct bearing and seal for this service.
• Is this kit covered under the Magnuson-Moss Warranty Act? Yes. As a consumer product sold in the United States, the AK D44JK is subject to the provisions of the Magnuson-Moss Warranty Act. Yukon Gear provides a limited warranty against defects in materials and workmanship. Installation of aftermarket differential components does not void your vehicle manufacturer's warranty on unrelated systems under federal law.
• Can AK D44JK be used with aftermarket JK axle shafts? The AK D44JK is designed for the OEM axle tube bore dimensions of the Jeep JK Dana 44. Compatibility with aftermarket axle shafts depends on whether those shafts retain the OEM bearing journal diameter. Verify dimensions before installation.

Installation Instructions

1. Safely raise and support the vehicle. Remove the wheel, tire, and brake assembly on the side being serviced.
2. Remove the axle shaft retaining bolts from the differential side and slide the axle shaft out of the axle tube.
3. Use a slide hammer with an axle bearing puller to extract the axle bearing from the axle tube.
4. Remove the old axle seal from the axle tube bore using a seal puller or screwdriver.
5. Clean the axle tube bore and inspect for scoring or damage.
6. Drive the new axle seal from the AK D44JK into the axle tube bore until flush and fully seated, using a seal driver of the appropriate diameter.
7. Press or drive the new axle bearing from the AK D44JK into the axle tube bore until fully seated behind the seal.
8. Lightly coat the axle shaft bearing journal with clean differential fluid. Carefully slide the axle shaft back into the tube without damaging the new seal lip.
9. Reinstall the axle shaft retaining bolts into the differential flange. Torque to specification.
10. Reinstall brake components, wheel, and tire. Lower vehicle and verify rear differential fluid level.
