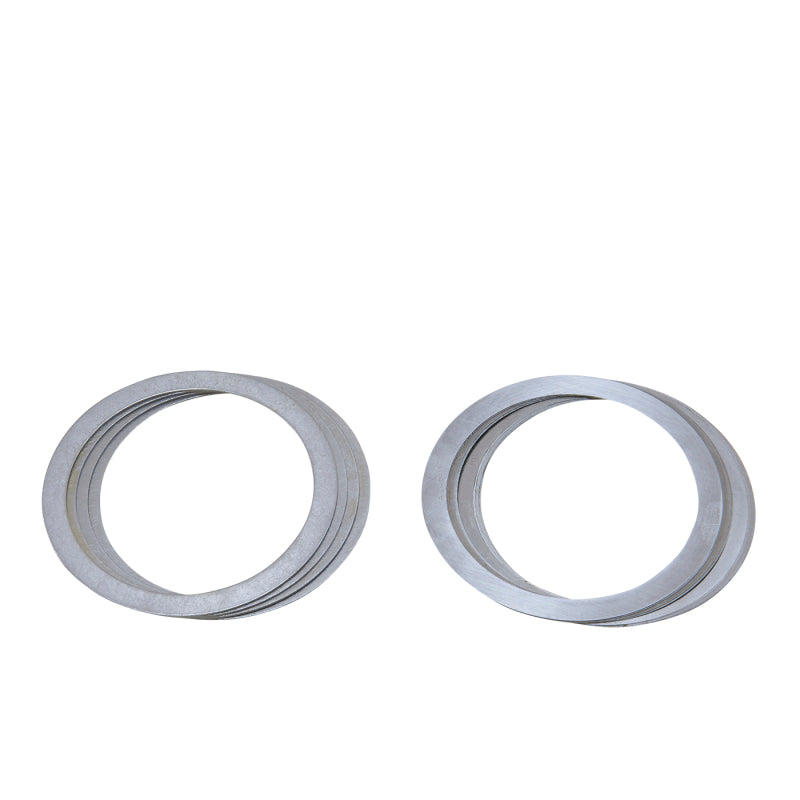

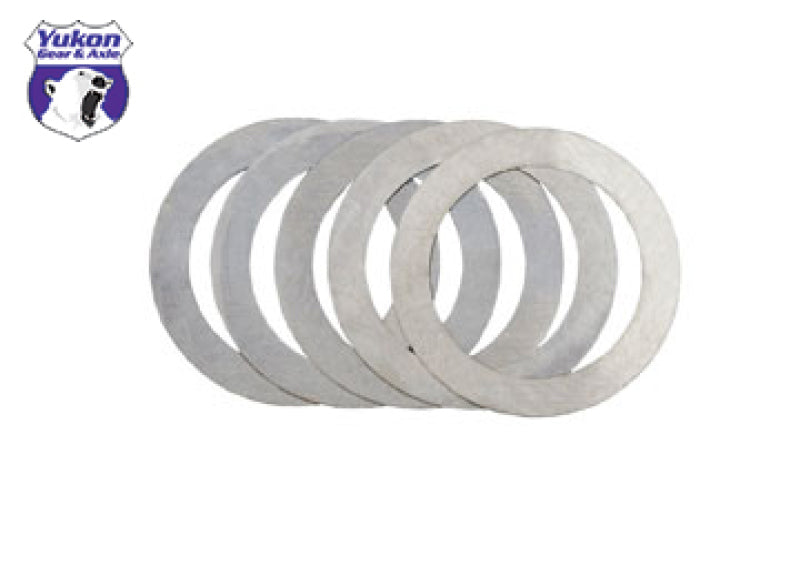

Yukon Gear Carrier Shim Kit for Dana 60, 70, 70HD, 70U and Dana 80 Differentials
The SK 30276 from Yukon Gear and Axle is a carrier shim kit engineered for the heavy-duty Dana 60, Dana 70, Dana 70HD, Dana 70U, and Dana 80 differentials used in Chevrolet, GMC, Dodge, Ford, and Plymouth heavy-duty trucks and vans from 1960 to 2014. Part number SK 30276 provides the assorted carrier shim thicknesses necessary to correctly set carrier bearing preload and ring-gear backlash during gear installation or bearing service. Having SK 30276 on hand covers the complete lineup of Dana heavy-axle differentials commonly found in 3/4-ton and 1-ton vehicles, reducing the need to source multiple separate shim sets when working across different platforms.
Features and Benefits
- Covers Dana 60, Dana 70, Dana 70HD, Dana 70U, and Dana 80 differentials in one kit
- Assorted shim thicknesses for precise carrier bearing preload and backlash setting
- Designed for heavy-duty truck and van applications from 1960 to 2014
- Compatible with Chevrolet, GMC, Dodge, Ford, and Plymouth platforms
- Manufactured to Yukon Gear tolerances for accurate, repeatable setup
- Simplifies inventory for shops servicing a wide range of heavy-duty axles
- Suitable for new gear installations and carrier bearing replacement jobs
Fitment
| Year | Make | Model | Differential |
|---|---|---|---|
| 1960-2014 | Chevrolet / GMC | C/K 2500, C/K 3500 Trucks, Suburban | Dana 60 rear |
| 1960-2014 | Ford | F-250, F-350, F-450, Excursion | Dana 60 / Dana 80 rear |
| 1960-2014 | Dodge | D-series, Ram 2500, Ram 3500 | Dana 60 / Dana 70 / Dana 80 rear |
| 1960-1980 | Plymouth | Fury, Belvedere, Satellite | Dana 60 rear |
| Various | Various | Heavy-duty trucks and vans | Dana 70HD, Dana 70U |
Specifications
| Specification | Detail |
|---|---|
| Part Number | SK 30276 |
| UPC | 883584550112 |
| Differential | Dana 60, Dana 70, Dana 70HD, Dana 70U, Dana 80 |
| Kit Type | Carrier Shim Kit |
| Warranty | Yukon Gear limited warranty |
What's Included
- Assorted carrier shims for Dana 60 / 70 / 70HD / 70U / 80 differential applications
Frequently Asked Questions
Q: What differentials does the SK 30276 fit?
A: The SK 30276 covers the Dana 60, Dana 70, Dana 70HD, Dana 70U, and Dana 80 differentials used in heavy-duty trucks and vans from 1960 to 2014.
Q: Does SK 30276 work for my Ford F-350 with a Dana 80?
A: Yes. The SK 30276 includes shims compatible with the Dana 80 rear axle used in Ford F-350 and F-450 Super Duty applications.
Q: Is this kit suitable for Dodge Ram 3500 applications?
A: Yes. The SK 30276 covers Dana 70 and Dana 80 rear axles used in Dodge Ram 3500 heavy-duty trucks across multiple model years.
Q: How does correct carrier shim selection affect differential performance?
A: Carrier shims control the lateral position of the ring gear, directly setting backlash and preload. Incorrect shim selection leads to noise, excessive wear, and shortened differential life.
Q: Can SK 30276 be used for both new gear installs and bearing replacements?
A: Yes. The SK 30276 is appropriate for any service requiring carrier shim adjustment in the covered Dana differentials, including new ring-and-pinion installations and carrier bearing replacements.
Q: Does this product come with a warranty?
A: Yes. Yukon Gear products are backed by a limited warranty. Under the Magnuson-Moss Warranty Act, using warranted Yukon Gear parts does not void your vehicle's factory warranty when correctly installed.
Q: Is the SK 30276 compatible with Chevrolet and GMC heavy-duty trucks?
A: Yes. The SK 30276 is compatible with Dana 60 rear axles used in Chevrolet and GMC C/K 2500 and C/K 3500 trucks and Suburbans.
Q: Is professional installation recommended?
A: Yes. Carrier shim setting requires precision tools including a dial indicator and torque wrench. Professional installation ensures accurate differential setup and long-term reliability.
Installation Instructions
- Drain the differential and remove the cover. Mark the carrier bearing caps for correct reassembly orientation.
- Remove the carrier bearing caps and carefully extract the ring-gear carrier from the housing.
- Remove the existing carrier shims from both sides of the carrier bearing journals.
- Reinstall the carrier without shims and use a dial indicator to measure available lateral play, then calculate required shim thickness for each side.
- Select the appropriate shims from the SK 30276 kit to achieve the specified carrier bearing preload and ring-gear backlash.
- Install the selected shims, reinstall the carrier, and torque bearing caps hand-tight.
- Verify ring-gear backlash at 3-4 points around the gear with a dial indicator and adjust shim thickness as needed.
- Verify the gear tooth contact pattern with marking compound, then torque bearing caps to the manufacturer's specification.
- Reinstall the differential cover with a new gasket or RTV sealant and fill to the correct fluid level.
- Road-test the vehicle and check for leaks before returning to service.
Proposition 65 Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
