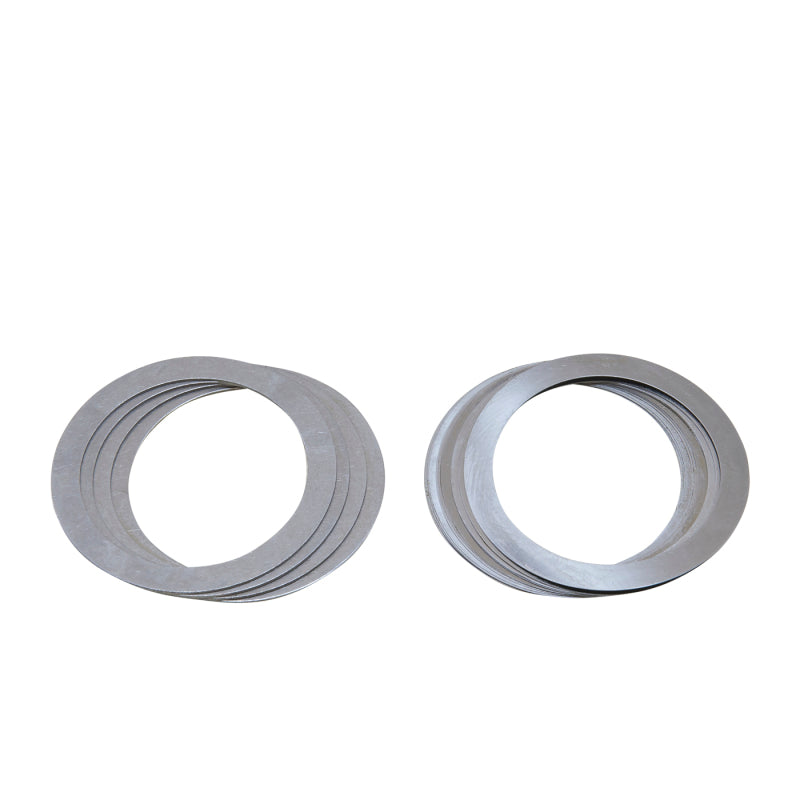

Yukon Gear Carrier Shim Kit for Dana Spicer 44 and 30-Spline Axle Differentials
The SK 30214 from Yukon Gear and Axle is a carrier shim kit engineered for the Dana Spicer 44 differential with 30-spline axles. Part number SK 30214 is used to set correct carrier bearing preload and ring-gear backlash during gear installation or carrier bearing replacement in Dana 44 applications found in Ford, Chevrolet, GMC, Dodge, Jeep, and AMC vehicles from 1953 to 1996. The SK 30214 provides the assorted shim thicknesses required to properly load the carrier bearings and achieve factory-specified backlash, which is essential for gear life, quiet operation, and differential durability in both street and off-road use.
Features and Benefits
- Designed for Dana Spicer 44 differential with 30-spline axle configuration
- Assorted carrier shim thicknesses for precise backlash and preload setting
- Covers front and rear Dana 44 applications across multiple vehicle platforms
- Compatible with Ford, Chevrolet, GMC, Dodge, Jeep, and AMC vehicles
- Manufactured to Yukon Gear tolerances for accurate differential setup
- Spans 1953-1996 model years for broad application coverage
- Supports both gear installation and carrier bearing replacement service
Fitment
| Year | Make | Model | Notes |
|---|---|---|---|
| 1966-1996 | Ford | Bronco, F-150, F-250 | Dana 44 rear axle |
| 1969-1991 | Chevrolet / GMC | Blazer, K10, K15, K20 | Dana 44 front axle |
| 1971-1991 | Dodge | D100, D200, W100, W200 Trucks | Dana 44 rear axle |
| 1953-1990 | Jeep | CJ, Wrangler, Cherokee, J-Series | Dana 44 front and rear |
| 1970-1987 | AMC | Hornet, Javelin, Matador, AMX | Dana 44 rear axle |
Specifications
| Specification | Detail |
|---|---|
| Part Number | SK 30214 |
| UPC | 883584550105 |
| Differential | Dana Spicer 44, 30-Spline |
| Kit Type | Carrier Shim Kit |
| Warranty | Yukon Gear limited warranty |
What's Included
- Assorted carrier shims for Dana Spicer 44 / 30-spline axle differential
Frequently Asked Questions
Q: What differential does the SK 30214 fit?
A: The SK 30214 is designed for the Dana Spicer 44 differential with 30-spline axles, used in a wide range of Ford, Chevrolet, GMC, Dodge, Jeep, and AMC vehicles from 1953 to 1996.
Q: Does SK 30214 cover both front and rear Dana 44 applications?
A: Yes. The SK 30214 works with Dana 44 differentials in both front and rear axle positions, which is particularly useful for Jeep CJ and Wrangler models with Dana 44 front axles.
Q: Why is carrier shim selection critical?
A: Carrier shims control the side-to-side position of the ring gear carrier, which determines ring-gear backlash. Incorrect shim selection causes noisy operation, premature wear, and potential differential failure.
Q: Can SK 30214 be used with my Jeep Wrangler Dana 44?
A: Yes. The SK 30214 is compatible with the Dana 44 differential used in Jeep Wrangler (YJ and early TJ) front and rear axles.
Q: Is this kit compatible with the Dana 44 found in Ford Bronco models?
A: Yes. The SK 30214 fits the Dana 44 rear axle used in Ford Bronco models from 1966 through the early 1990s.
Q: Does this product come with a warranty?
A: Yes. Yukon Gear products are backed by a limited warranty. Under the Magnuson-Moss Warranty Act, installing warranted parts does not void your vehicle's factory warranty when correctly installed.
Q: Can I use this with a new Yukon Gear ring-and-pinion for the Dana 44?
A: Yes. The SK 30214 is designed to be used with new gear installations in the Dana 44, providing the carrier shim selection needed to dial in backlash per the gear set specifications.
Q: Is professional installation required?
A: Accurate carrier shim selection requires a dial indicator to measure backlash. Professional installation is strongly recommended for proper differential setup.
Installation Instructions
- Drain the differential and remove the cover. Mark the carrier bearing caps for correct reassembly.
- Remove the carrier bearing caps and carefully extract the ring-gear carrier from the housing.
- Remove the existing carrier shims from both sides of the carrier bearing bores.
- Install the carrier with the ring gear back into the housing with no shims to determine the required shim thickness on each side.
- Using a dial indicator, measure the ring-gear backlash and calculate the required shim adjustment for each side.
- Select the appropriate shims from the SK 30214 kit for each side to achieve the specified backlash and carrier bearing preload.
- Install the selected shims, reinstall the carrier, and torque the bearing caps hand-tight.
- Verify backlash at 3-4 points around the ring gear with a dial indicator, and adjust as needed.
- Check the gear tooth contact pattern with marking compound, then torque bearing caps to final specification.
- Install the cover with a new gasket or RTV, fill with the correct differential fluid, and road-test before returning to service.
Proposition 65 Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
