Yukon Gear Replacement Crush Sleeve Eliminator for JK Dana 30 / 44 Front

Yukon Gear SK CSJK-F Replacement Crush Sleeve Eliminator for Jeep JK Dana 30 and Dana 44 Front Differential

The SK CSJK-F from Yukon Gear is a precision crush sleeve eliminator designed for the front Dana 30 and Dana 44 differentials in the 2007-2017 Jeep Wrangler JK. By replacing the factory single-use crush sleeve with a solid eliminator and shim set, the SK CSJK-F allows Jeep builders and technicians to dial in exact pinion bearing preload with confidence and repeatability. This is especially valuable on frequently-rebuilt off-road differentials where the pinion may be removed for gear swaps, locker installations, or bearing replacements.

Features and Benefits

• Crush sleeve eliminator for the 2007-2017 Jeep Wrangler JK front Dana 30 and Dana 44
• Solid sleeve replaces the factory crush sleeve for precise, repeatable pinion bearing preload
• Allows multiple rebuilds without replacing the sleeve each time
• Eliminates the risk of over-crushing that can damage pinion bearings
• Ideal for JK gear swaps, locker installations, and pinion seal replacements
• Includes shims for preload adjustment
• Covers both Dana 30 and Dana 44 front applications for 2007-2017 JK
• Yukon Gear limited warranty

Fitment

Specifications

What's Included

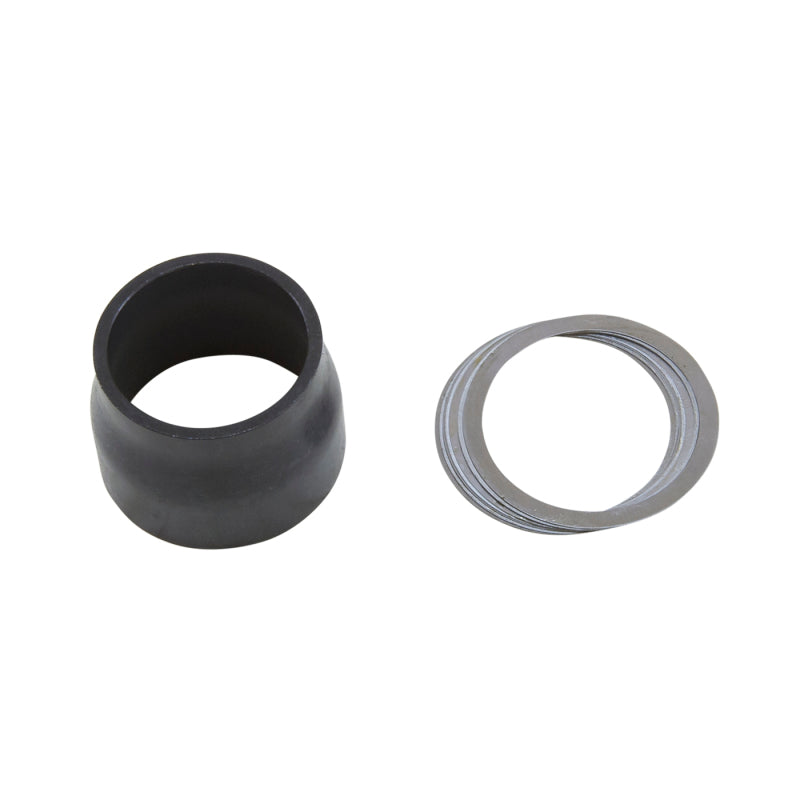

• 1 x Solid crush sleeve eliminator
• Preload adjustment shims

Frequently Asked Questions

What differential does SK CSJK-F fit?
The SK CSJK-F fits the front Dana 30 and Dana 44 differentials in the 2007-2017 Jeep Wrangler JK and JK Unlimited, covering Sport, Sahara, Rubicon, and all other JK trims.

Does the SK CSJK-F fit both Dana 30 and Dana 44 front diffs?
Yes. The SK CSJK-F is designed to work in both the Dana 30 (used in non-Rubicon JKs) and Dana 44 (used in Rubicon JKs) front differential applications for the 2007-2017 Wrangler JK.

Does SK CSJK-F include a pinion seal?
No. The SK CSJK-F is a crush sleeve eliminator kit only. A separate pinion seal is required if the existing seal is being replaced.

Is SK CSJK-F reusable?
Yes. The solid eliminator in the SK CSJK-F can be reused across multiple rebuilds by adjusting the included shims to achieve the correct pinion preload each time.

Does SK CSJK-F fit the Jeep JL Wrangler?
No. The SK CSJK-F is specific to the 2007-2017 JK generation. The 2018+ JL Wrangler uses different front differential hardware.

What is the benefit of using SK CSJK-F on a Jeep built for off-road use?
Off-road JK Wranglers frequently undergo gear ratio changes and differential rebuilds. The SK CSJK-F eliminates the need to buy a new crush sleeve for every pinion removal and allows precise preload setting, which is critical for long differential life under extreme off-road conditions.

Does Yukon Gear's warranty cover SK CSJK-F?
Yes. The SK CSJK-F is covered by Yukon Gear's limited warranty against manufacturing defects. Per the Magnuson-Moss Warranty Act, using aftermarket parts like SK CSJK-F does not void your vehicle manufacturer's warranty on unrelated components.

What tools are needed to install SK CSJK-F?
Installation requires an inch-pound torque wrench, a flange holding tool, a pinion seal driver, and standard hand tools. The ability to measure rotating torque accurately is essential for setting correct pinion bearing preload.

Installation Instructions

1. Remove the front driveshaft from the differential pinion yoke.
2. Hold the pinion yoke with a flange holding tool and remove the pinion nut.
3. Remove the pinion yoke using a yoke puller; drive out the old pinion seal.
4. Tap the pinion shaft rearward to remove it; remove and discard the old crush sleeve.
5. Inspect the pinion bearings; replace if worn.
6. Select the correct shim from the SK CSJK-F kit to achieve the target rotating preload.
7. Install the solid sleeve eliminator and selected shim(s) onto the pinion shaft.
8. Drive in the new pinion seal and reassemble the pinion yoke.
9. Install and tighten the pinion nut gradually, measuring rotating torque until the specified preload is reached.
10. Adjust shims if needed to achieve correct preload without over-tightening.
11. Reinstall the front driveshaft and road-test.
