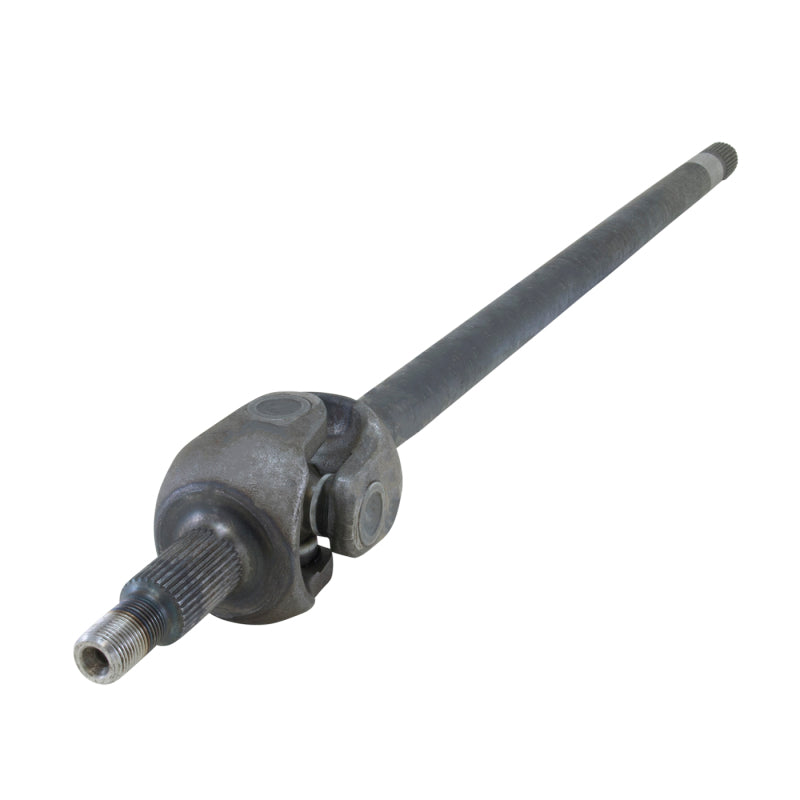

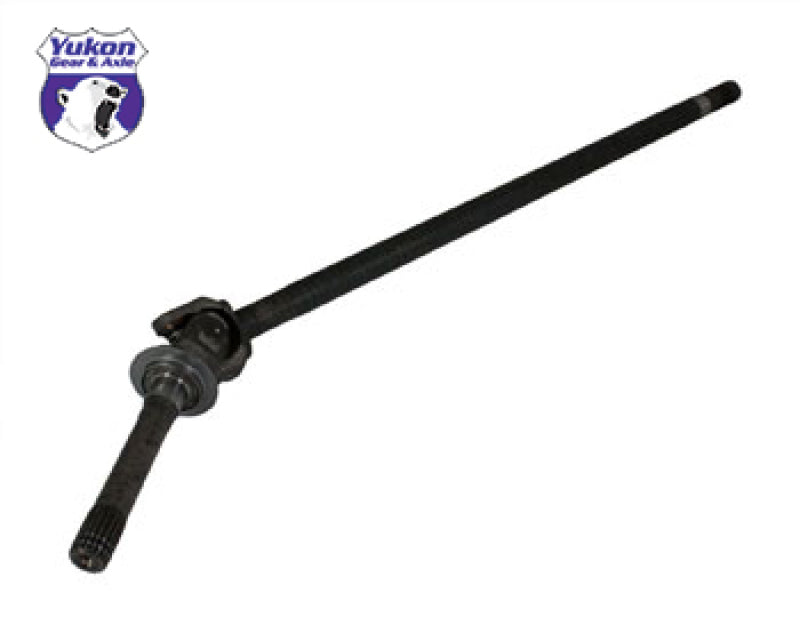

Right Hand Front Axle Assembly for 2010-2011 Dodge Ram 9.25in Front Differential, Part YA C68065426AB
The Yukon Gear YA C68065426AB is a complete right-hand front axle assembly engineered as a direct replacement for the Chrysler 9.25 inch front differential found in 2010-2011 Dodge Ram 2500 and Ram 3500 4WD trucks. Built from 1541H heat-treated alloy steel using the latest manufacturing technologies, this axle delivers strength and durability that exceeds the factory specification. The YA C68065426AB is a complete bolt-in assembly that eliminates the need to source individual components, making it the most efficient solution for a failed or damaged right front axle shaft on these Ram heavy-duty trucks.
Features and Benefits
- Direct-fit replacement for the right-hand front axle on 2010-2011 Dodge Ram 2500 and Ram 3500 with Chrysler 9.25 inch front differential
- Built from 1541H alloy steel for improved tensile strength and fatigue resistance over factory OEM alloy
- Complete assembly including shaft, inner 33-spline stub, and U-joints for a single-step installation
- 45.5 inch overall length matching the OEM specification exactly
- 33 spline inner end for correct engagement with the front differential carrier
- Yukon advanced heat-treating technology ensures long service life in demanding towing and off-road applications
- Prop 65 compliant warning for California residents
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2010 | Dodge | Ram 2500 | Laramie |
| 2011 | Dodge | Ram 2500 | Laramie |
| 2010 | Dodge | Ram 2500 | Power Wagon |
| 2011 | Dodge | Ram 2500 | Power Wagon |
| 2010 | Dodge | Ram 2500 | SLT |
| 2011 | Dodge | Ram 2500 | SLT |
| 2010 | Dodge | Ram 2500 | ST |
| 2011 | Dodge | Ram 2500 | ST |
| 2010 | Dodge | Ram 3500 | Laramie |
| 2011 | Dodge | Ram 3500 | Laramie |
| 2010 | Dodge | Ram 3500 | SLT |
| 2011 | Dodge | Ram 3500 | SLT |
| 2010 | Dodge | Ram 3500 | ST |
| 2011 | Dodge | Ram 3500 | ST |
Specifications
| Specification | Detail |
|---|---|
| Part Number | YA C68065426AB |
| UPC | 883584359777 |
| Differential | Chrysler 9.25 in. Front |
| Side | Right Hand (Passenger) |
| Spline Count (Inner) | 33 spline |
| Overall Length | 45.5 in. |
| Material | 1541H Alloy Steel |
| Assembly Type | Complete axle assembly |
| Warranty | 1 Year Manufacturer Warranty |
What's Included
- One complete right-hand front axle assembly (YA C68065426AB)
- Inner stub shaft, U-joints, and all assembly components
Frequently Asked Questions
What vehicles does the YA C68065426AB fit?
The YA C68065426AB fits 2010-2011 Dodge Ram 2500 and Ram 3500 4WD trucks equipped with the Chrysler 9.25 inch front differential. Confirm your axle differential type before ordering.
What side does the YA C68065426AB replace?
This is the right-hand (passenger side) front axle assembly. For the left-hand side, see the corresponding left-hand part number.
What is the spline count on the YA C68065426AB?
The inner end of the YA C68065426AB is 33 splines, matching the Chrysler 9.25 inch front differential carrier exactly.
Will installing the YA C68065426AB affect my factory warranty under the Magnuson-Moss Warranty Act?
The Magnuson-Moss Warranty Act prohibits a manufacturer from voiding your warranty solely because an aftermarket part was installed. The manufacturer must prove the YA C68065426AB directly caused the claimed failure before denying warranty coverage.
What warranty does Yukon provide on the YA C68065426AB?
Yukon covers this axle assembly under a one-year manufacturer warranty against defects in materials and workmanship.
Is this a complete assembly or just the axle shaft?
The YA C68065426AB is a complete front axle assembly, including the shaft, inner stub, and U-joints. No additional components are required for installation.
Does the YA C68065426AB require any modifications?
No. This is a direct bolt-in replacement designed to match OEM dimensions and spline count exactly. Standard hand tools are sufficient for installation.
Is this axle suitable for lifted trucks or larger tires?
Yes. The 1541H alloy steel construction provides improved strength over the factory axle shaft, making the YA C68065426AB suitable for lifted trucks, larger tires, and heavy towing applications.
Installation Instructions
- Raise and support the front of the truck on jack stands. Remove the right front wheel.
- Remove the front skid plate if equipped.
- Disconnect the front differential vent tube if it obstructs access.
- Remove the right front brake caliper and rotor to access the hub assembly.
- Remove the hub nut and pull the hub/rotor assembly off the spindle.
- Disconnect the front CV axle from the differential by removing the snap ring or retaining clip at the inner stub.
- Slide the old YA C68065426AB equivalent axle shaft out of the differential housing.
- Slide the new YA C68065426AB into the differential housing and seat the inner splines fully.
- Install the retaining snap ring or clip at the inner stub to lock the axle in place.
- Reassemble the hub, rotor, and caliper. Torque the hub nut to the Ram service manual specification.
- Reinstall the wheel and lower the vehicle. Road-test and verify smooth operation in 2WD and 4WD.
Prop 65 Warning: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
