Yukon Gear 8in Ford O-Ring

Keep the Pinion Support Sealed on Your Classic Ford 8-Inch Rear End

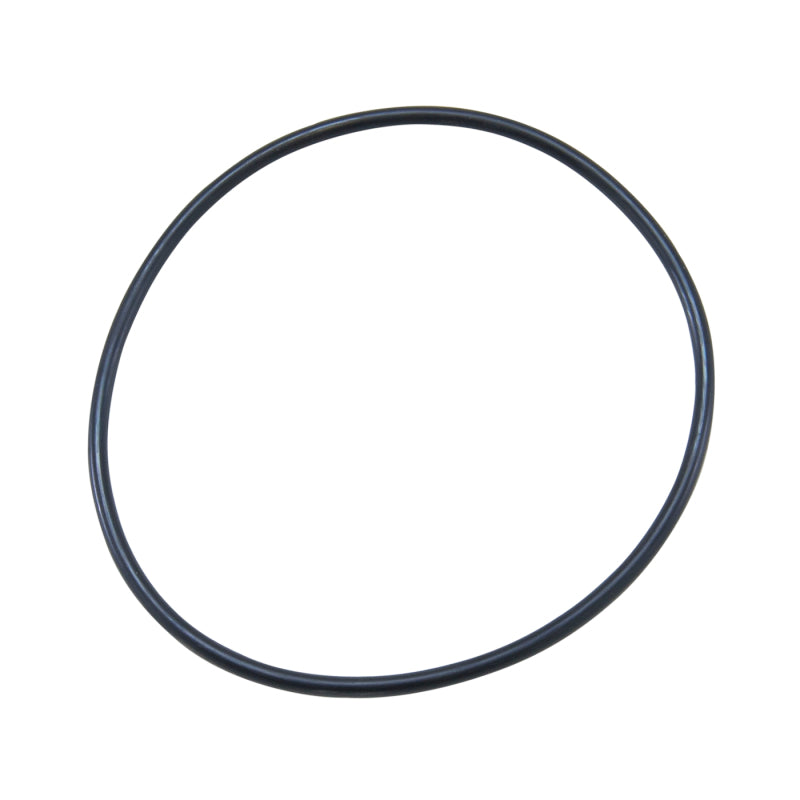

A leaking or deteriorated pinion support O-ring is one of the most overlooked sources of fluid loss on the Ford 8-inch rear differential. The Yukon Gear YMS242 is a direct replacement rubber O-ring for the pinion support on these classic Ford axles, a small part that plays an important role in keeping gear oil where it belongs and preventing contamination of the differential internals.

Whether you are doing a full differential rebuild, replacing a leaking seal, or just refreshing worn components during a restoration, swapping out this O-ring is a straightforward step that should not be skipped.

What Is Included

• One (1) pinion support O-ring for Ford 8-inch differential
• Fits Ford 8-inch rear differential pinion support
• Backed by a 1-year warranty

Compatible Vehicles with the Ford 8-Inch Rear Axle

The Ford 8-inch rear differential was used across a wide range of Ford and Mercury vehicles from the 1960s through the 1980s. This O-ring fits the pinion support on any of the following applications:

• Ford Fairlane (1962-1967)
• Ford Falcon (1964-1970)
• Ford LTD (1965-1978)
• Ford E-100 Econoline (1969-1974)
• Ford Gran Torino (1972-1976)
• Ford Granada (1975-1978)
• Ford Maverick (1970-1977)
• Ford Mustang (1964-1973)
• Ford Pinto (1971-1980)
• Ford Ranchero (1964-1979)
• Mercury Bobcat (1975-1980)
• Mercury Comet (1962-1969 and 1971-1977)
• Mercury Cougar (1967-1970)

Fitment Reference

About the Ford 8-Inch Differential

The Ford 8-inch rear axle was a staple of Ford's light-duty car and truck lineup through much of the 1960s and 1970s. Known for its compact design, it was used in everything from early Mustangs and Falcons to the Ranchero and Gran Torino. While not as heavy-duty as the Ford 9-inch, the 8-inch axle is more than adequate for street-driven classics and benefits greatly from quality replacement seals and O-rings during any restoration or maintenance work.

The pinion support O-ring seals the junction between the pinion support housing and the differential carrier. A worn or hardened O-ring allows gear oil to seep past this interface, leading to low fluid levels, potential bearing damage, and gear surface wear over time. Replacing it during a rebuild or any time fluid seepage is noticed is straightforward and inexpensive insurance against more costly repairs.

Installation Instructions

1. Safely raise and support the vehicle, and place a drain pan under the differential.
2. Remove the differential cover and drain the gear oil completely.
3. Remove the pinion yoke nut and yoke, then carefully extract the pinion shaft and pinion support assembly from the axle housing.
4. Locate the O-ring groove on the pinion support housing. Remove the old O-ring and clean the groove thoroughly, removing any debris or hardened rubber remnants.
5. Lightly lubricate the new YMS242 O-ring with clean gear oil or assembly lubricant.
6. Seat the new O-ring evenly into the groove, ensuring it is not twisted or pinched.
7. Reinstall the pinion support assembly into the axle housing, taking care not to cut or roll the O-ring during installation.
8. Reinstall the pinion yoke and torque the pinion nut to specification.
9. Reinstall the differential cover with a fresh gasket or RTV sealant and refill the differential with the correct type and quantity of gear oil.
10. Check for leaks after the first drive cycle.

Note: Always verify the correct O-ring size for your specific application before installation. If the pinion support or axle housing shows signs of corrosion or damage in the sealing area, address those issues before installing a new O-ring.

Frequently Asked Questions

1. What does the pinion support O-ring do?
   The O-ring seals the interface between the pinion support and the differential housing, preventing gear oil from leaking out at that junction. A failed O-ring results in fluid seepage that, if left unaddressed, can lead to low fluid levels and accelerated wear on gears and bearings.
2. How do I know if my pinion support O-ring is bad?
   The most common sign is gear oil seeping from the front of the differential housing around the pinion support area. You may also notice a low fluid level when checking the differential or oil residue on the undercarriage near the axle.
3. Is this O-ring sold individually or as a set?
   YMS242 is sold as a single O-ring.
4. Does this fit the Ford 9-inch differential?
   No. This O-ring is specific to the Ford 8-inch rear differential. The Ford 9-inch uses different dimensions and requires its own sealing components.
5. Can I install this without removing the entire differential?
   The pinion support O-ring is located where the pinion support housing seats into the axle carrier, so accessing it requires removing the pinion assembly. A full teardown is not necessary, but the pinion yoke and support will need to come out.
6. What material is this O-ring made from?
   It is a rubber O-ring designed to withstand the heat and chemical environment of gear oil inside a differential housing.
7. What gear oil should I use when refilling after this repair?
   The Ford 8-inch differential typically takes a GL-5 rated 80W-90 or 75W-90 gear oil. Consult your vehicle's service manual for the exact specification. If a limited-slip differential is installed, an LSD additive may also be required.
8. Is this part covered by a warranty?
   Yes. Yukon Gear backs this O-ring with a 1-year warranty against defects in materials and workmanship.
9. Should I replace other seals at the same time?
   If you already have the differential open, it is good practice to replace the pinion seal, carrier bearings, and any other O-rings or gaskets showing wear. Doing this work together saves labor time and ensures a complete, leak-free assembly.
