ACT Mod-Twin 225 HD Sprung Race: T1R-M01. Excellence in Performance, backed by the best one-year warranty in the industry!

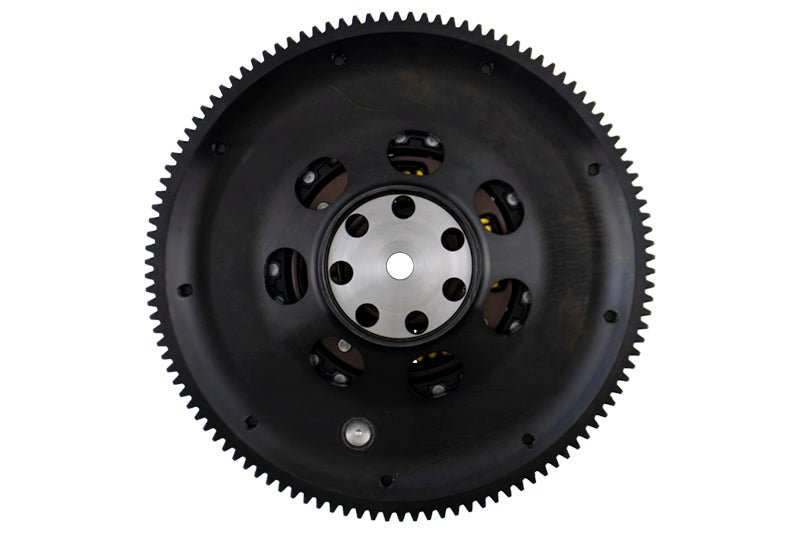

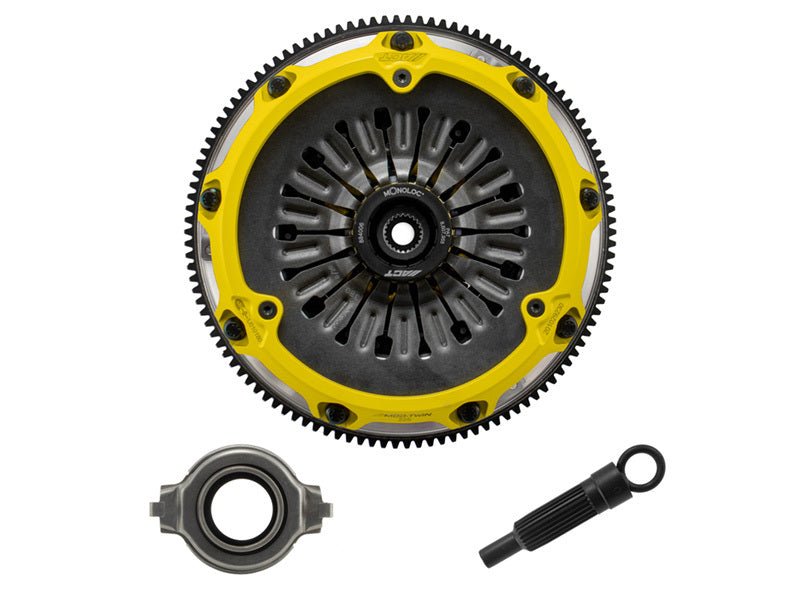

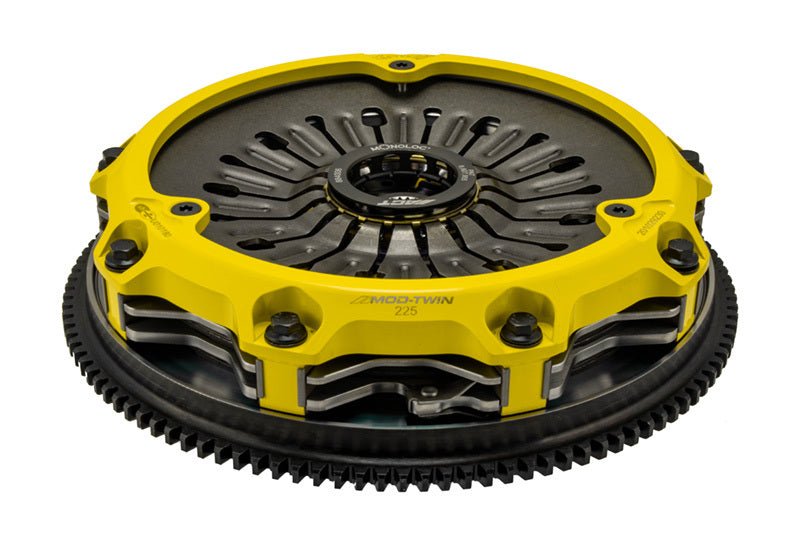

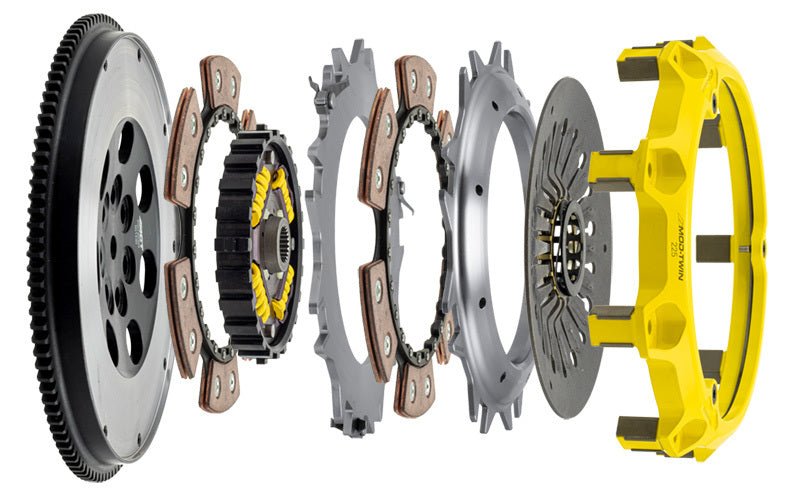

T1R-M01 Mod-Twin 225 HD Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWD’s by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
- Clutch Master Cylinder Included:No
- Grease Included:Yes
- Grade Type:Performance
- Flywheel Included:Yes
- Pilot Bushing Included:No
- Pressure Plate Type:Heavy Duty
- Release Bearing Included:Yes
- Clutch Disc Diameter:8.8 IN
- Disc Material:Ceramic
- Input Spline Quantity:23
- Input Shaft Diameter:1 IN
- Alignment Tool Included:Yes
- Disc Type Sprung Solid:Sprung
- New Or Remanufactured Clutch:New
- Clutch Slave Cylinder Included:No
- Flywheel Bolts Included:No
- Pilot Bearing Included:No
- Product Weight (lbs.):28.1
- Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Prop 65 Long Label:Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
- Prop 65 Yes/No:Yes
- SFI:1.2
- Title:ACT Mod-Twin 225 HD Sprung Race
- Torque Capacity (ft/lbs.):895
- Torque Capacity Over OE:152%
- Clutch Disc Diameter:225 mm
