Wideband AFR and Live OBD2 Data in One 52mm Gauge, No Scanner Required
The AEM 30-0334 X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge adds an OBDII cable to the proven AEM X-Series wideband platform, allowing the gauge to read and display live engine parameters from the vehicle's OBD2 port alongside wideband AFR data. The AEM 30-0334 uses a Bosch LSU 4.9 wideband UEGO sensor to read from 10:1 to 20:1 AFR and simultaneously monitors OBD2 channels such as RPM, coolant temperature, throttle position, and more, all from the same 52mm gauge face. Universal fitment works with any OBD2-compliant vehicle equipped with an available exhaust bung location.
Key Features
- AEM 30-0334 X-Series wideband AFR gauge with built-in OBDII cable for live engine data access
- Bosch LSU 4.9 wideband UEGO sensor included, reads 10:1-20:1 AFR and 0.68-1.36 lambda
- OBDII connectivity provides RPM, coolant temp, throttle position, and other PID data without a separate scanner
- 52mm housing for standard A-pillar pods, gauge panels, and roll cage mounts
- Simultaneous AFR and OBD2 channel display on the X-Digital face
- Analog output (0-5V) for datalogger and standalone ECU integration
- Compatible with gasoline, E85, methanol, and other fuel blends
- Includes 18mm weld-in O2 bung and all necessary wiring
Specifications
| Detail | Value |
|---|---|
| Part Number | 30-0334 |
| UPC | N/A |
| Gauge Diameter | 52mm |
| AFR Range | 10:1 to 20:1 |
| Lambda Range | 0.68 to 1.36 |
| Sensor | Bosch LSU 4.9 wideband UEGO |
| OBDII | Included cable for live OBD2 data |
| Analog Output | 0-5V for datalogger/ECU |
| Faceplate | Reversible black AFR / Lambda |
| Application | Universal OBD2-compliant vehicles |

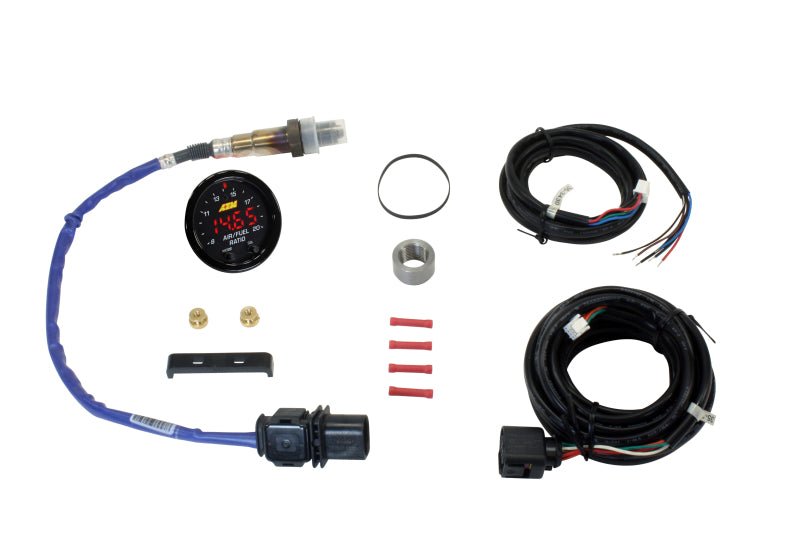

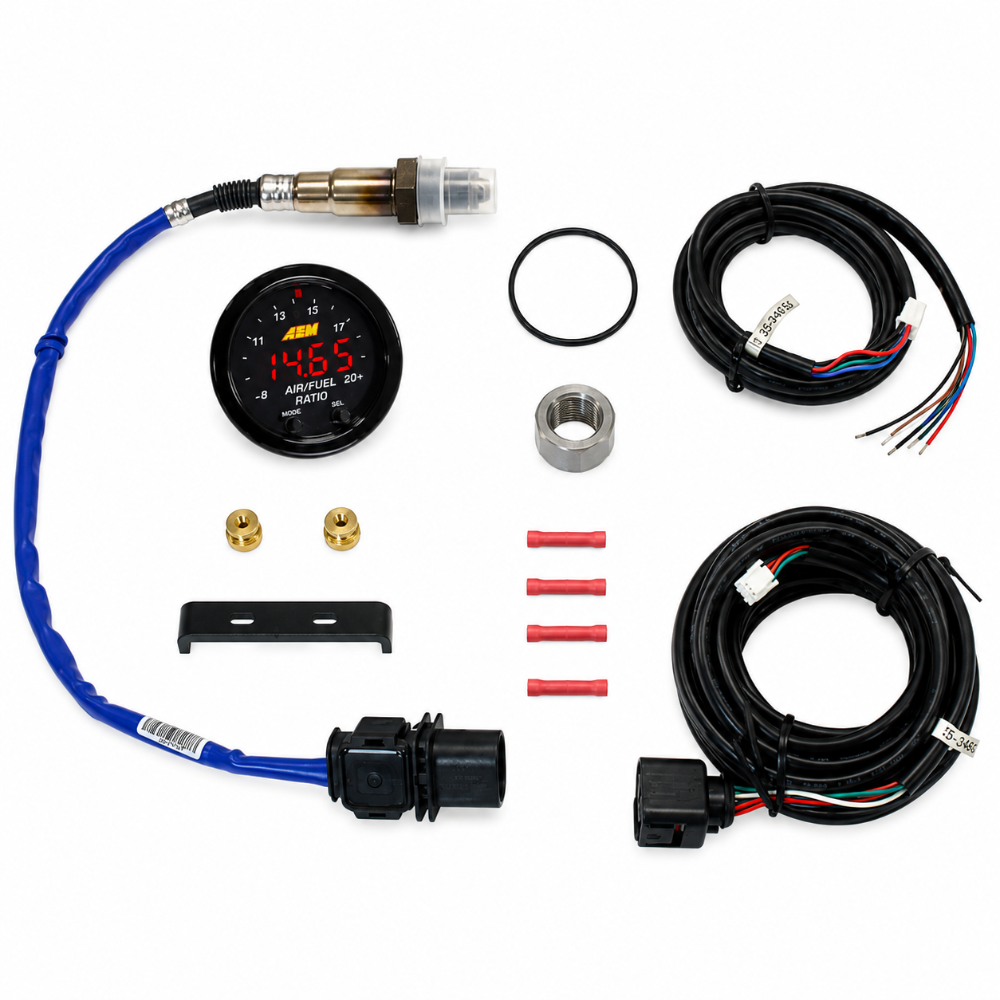

What's Included
- 1 AEM 30-0334 X-Series OBDII wideband UEGO gauge
- 1 Bosch LSU 4.9 wideband oxygen sensor
- OBDII cable for live engine data
- Sensor harness and gauge wiring harness
- Black gauge bezel
- Reversible black AFR/Lambda faceplate
- 18mm weld-in O2 bung
- Instructions
About AEM Performance Electronics
AEM Performance Electronics has developed aftermarket performance electronics for over 30 years from their Hawthorne, California headquarters. AEM produces wideband controllers, standalone ECUs, boost gauges, and data acquisition systems trusted by professional race teams and performance enthusiasts worldwide. The X-Series gauge line represents AEM's latest generation of X-Digital display technology for fast, high-accuracy sensor monitoring.
Frequently Asked Questions
What is the difference between AEM 30-0334 and AEM 30-0300?The AEM 30-0334 adds an OBDII cable to the standard 30-0300 X-Series wideband gauge platform. This lets the 30-0334 read and display live OBD2 engine parameters like RPM, coolant temperature, and throttle position directly on the gauge, alongside wideband AFR data, without a separate diagnostic scanner.
What OBD2 parameters can the 30-0334 display?The AEM 30-0334 can display standard OBD2 PID channels including RPM, vehicle speed, coolant temperature, throttle position, and other parameters supported by the vehicle's ECU over the standard OBD2 protocol.
Does the AEM 30-0334 still read wideband AFR?Yes. The core function of the AEM 30-0334 is identical to the 30-0300: it reads wideband AFR from 10:1 to 20:1 using the included Bosch LSU 4.9 UEGO sensor. The OBDII capability is an added feature layered on top of the wideband controller.
Does 30-0334 have an analog output for data logging?Yes. The AEM 30-0334 includes a 0-5V analog output for connection to external dataloggers, standalone ECUs, or piggyback controllers that accept a wideband voltage signal.
What vehicles is the AEM 30-0334 compatible with?The AEM 30-0334 is a universal wideband gauge and is compatible with any vehicle that has an OBD2 port (all US-market vehicles 1996 and newer) and an available exhaust location for the wideband sensor bung. It works with gasoline, E85, methanol, and similar fuel types.
Is the Bosch LSU 4.9 sensor included with the 30-0334?Yes. The Bosch LSU 4.9 wideband UEGO sensor is included in the AEM 30-0334 kit along with the OBDII cable, wiring harnesses, gauge bezel, faceplate, and O2 bung.
Does the 30-0334 require California Prop 65 disclosure?No. The AEM 30-0334 does not carry a Prop 65 warning requirement based on available product documentation.
Can the AEM 30-0334 be used on a turbocharged or supercharged build?Yes. The AEM 30-0334 is fully compatible with forced induction applications. The Bosch LSU 4.9 sensor reads accurately across the full 10:1-20:1 AFR range applicable to both naturally aspirated and boosted gasoline and E85 builds.
Installation Instructions
- Select an exhaust location for the oxygen sensor bung, typically 18-24 inches downstream from the last exhaust manifold collector, before the catalytic converter.
- Weld the included 18mm bung into the exhaust pipe and allow it to cool.
- Thread the Bosch LSU 4.9 sensor into the bung and torque to the manufacturer's spec.
- Route the sensor harness to the gauge location, keeping it away from heat sources above 200 degrees Fahrenheit.
- Mount the AEM 30-0334 gauge in the 52mm gauge location.
- Connect the gauge wiring harness: 12V key-on power, chassis ground, and sensor harness connections.
- Connect the OBDII cable to the vehicle's OBD2 port, typically located under the driver-side dash.
- If connecting the 0-5V analog output to an ECU or datalogger, route and connect the signal wire as required.
- Turn on the ignition, allow the gauge to calibrate, and verify AFR and OBD2 data are displayed.
