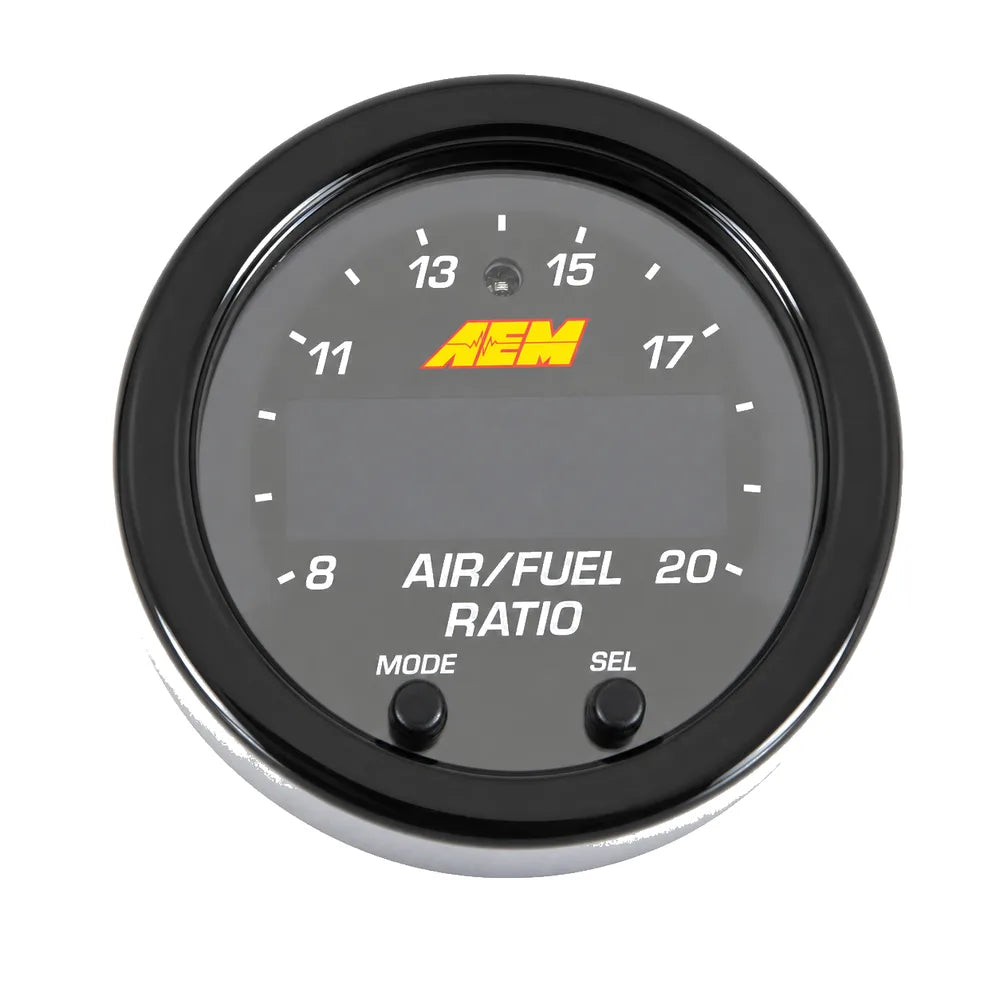

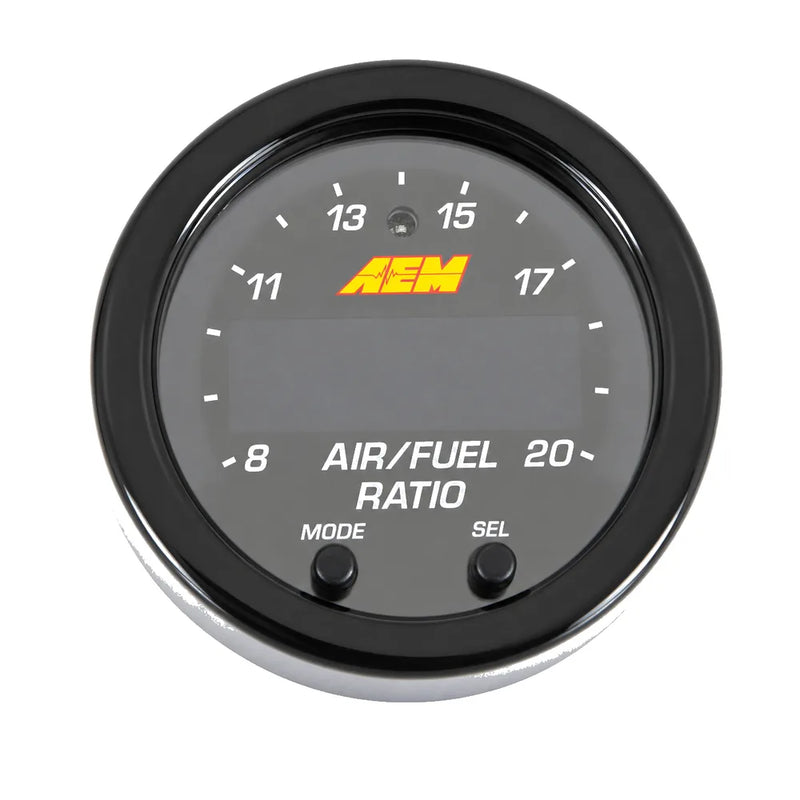

AEM X-Series Wideband UEGO AFR Gauge (No Sensor)
The AEM 30-0300NS combines X-Digital wideband control with a 52 mm digital AFR/lambda display. This listing is the no-sensor version; select a separately sourced sensor only after matching the actual gauge hardware. A black bezel and reversible black AFR/lambda faceplate are supplied.
Key Features
- Selectable AFR, lambda or oxygen-percentage display and three- or four-digit precision.
- Automatic dimming and locking connectors.
- Resistor calibration and optional free-air calibration, following the matching sensor/version instructions.
- Differential analog, RS-232 and AEMnet CAN outputs for compatible external equipment.
Fitment
| Detail | Value |
|---|---|
| Application | Universal exhaust and electrical installation, requiring a suitable sensor location and hardware matched to the controller. |
| Sensor-version qualification | Older 10-0300 documentation covers Bosch LSU 4.9 only. The later 10-0400 manual linked from the current kit page covers FAE/Bosch auto-detection; AEM's FAE service-sensor page restricts replacement to 0400 serial identification. The listing name alone does not certify an older unit for FAE. |
| Sensor-free package | No sensor included. Its current page advertises auto-detection but links the older full-kit Bosch manual; verify the actual unit before buying a sensor. |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 30-0300NS |
| Product Type | Gauges |
| Housing | 52 mm cup, 61 mm bezel; 0.825 in. overall depth and 0.200 in. cup depth. |
| Display / face | Advertised face: 8.5–18 gasoline AFR. Manuals describe 8–20 AFR operation, 0.55–2.00 numeric lambda and 0.55–1.40 outer-LED lambda limits; these are separate display/scaling descriptions, not a 10–20 Classic calibration. |
| Analog output | Gasoline AFR = 2.3750 × volts + 7.3125; lambda = 0.1621 × volts + 0.4990. Table: 0.50 V = 8.50 AFR, 4.50 V = 18.00 AFR; below 0.50 V means sensor not ready and above 4.50 V means sensor error. |
| Communications | AEMnet: 500 kbit/s, 29-bit IDs, 100 Hz, selectable IDs 1–16; no internal termination. RS-232: 9600 baud, 8 data bits, no parity, 1 stop bit. |
| Power | Switched 12 V through a 5 A fuse. Manual supply table: 10–18 VDC; nominal system support up to 16 V is listed separately. |
What's Included
- One no-sensor X-Series controller/gauge with black bezel and black double-sided face.
- Mounting hardware is listed on the current primary page.
- Oxygen sensor is excluded. The primary link supplies a full-kit manual rather than a separate no-sensor parts matrix; harness/bung contents need package verification.
- Silver bezel and white face are optional.
About AEM
AEM develops performance electronics, monitoring, fueling, ignition, and water-methanol products for enthusiast and motorsport applications. Black Ops Auto Works organizes AEM listings by exact part number and available application data to support accurate product selection.
Related Parts
- Browse AEM products; verify the controller version and exact service-part specification before choosing a sensor or harness.
Frequently Asked Questions
What is the 30-0300NS?It is an AEM X-Series digital wideband UEGO controller/gauge package without an oxygen sensor.
Can every version use an FAE sensor?No blanket compatibility is established. Current pages advertise FAE/Bosch auto-detection, but the older manual is Bosch-only and AEM restricts the FAE replacement to gauges with the 0400 serial identification. Match the actual hardware.
Is an LSU 4.2 sensor suitable?The checked manuals specify Bosch LSU 4.9, or AEM/FAE on the supported newer version. They do not establish LSU 4.2 compatibility; do not force a connection or alter its calibration resistor.
Must I perform free-air calibration?Resistor calibration (rCAL) is the factory default and recommended for new supported sensors. Optional ACAL is provided for aging sensors; it requires removing the sensor from exhaust into clean fresh air.
Are the face scale and analog range interchangeable?No. The advertised face scale is 8.5–18 gasoline AFR. The manuals separately describe digital display modes and a differential analog table; use the specified output calibration in external equipment.
Which mode should I use with other fuels?Lambda avoids treating the gasoline AFR equivalent as the actual fuel ratio. The manual uses a 14.65 gasoline stoichiometric constant for AFR display.
Is a logger built into the gauge?The gauge provides analog, RS-232 and AEMnet outputs for external equipment. Those outputs do not establish standalone continuous logging memory.
What is included in this package?The current primary page confirms no sensor, a black bezel/face and mounting hardware. Its linked manual is a full-kit manual, so it does not independently settle the sensor-free package's harness and bung contents; confirm the boxed contents.
Installation Instructions
- Read the matching Bosch-version manual or FAE-version manual. Identify the actual gauge and sensor before wiring; do not combine versions to infer compatibility.
- Follow the exact sensor-placement guidance: 18 in. downstream of the exhaust port or turbocharger, after the turbocharger and before catalytic/emissions devices, away from tailpipe fresh-air scavenging. Eliminate exhaust leaks.
- Use the correct bung and follow the matching sensor orientation and tightening instructions. Keep an installed sensor connected to a functioning powered controller during engine operation.

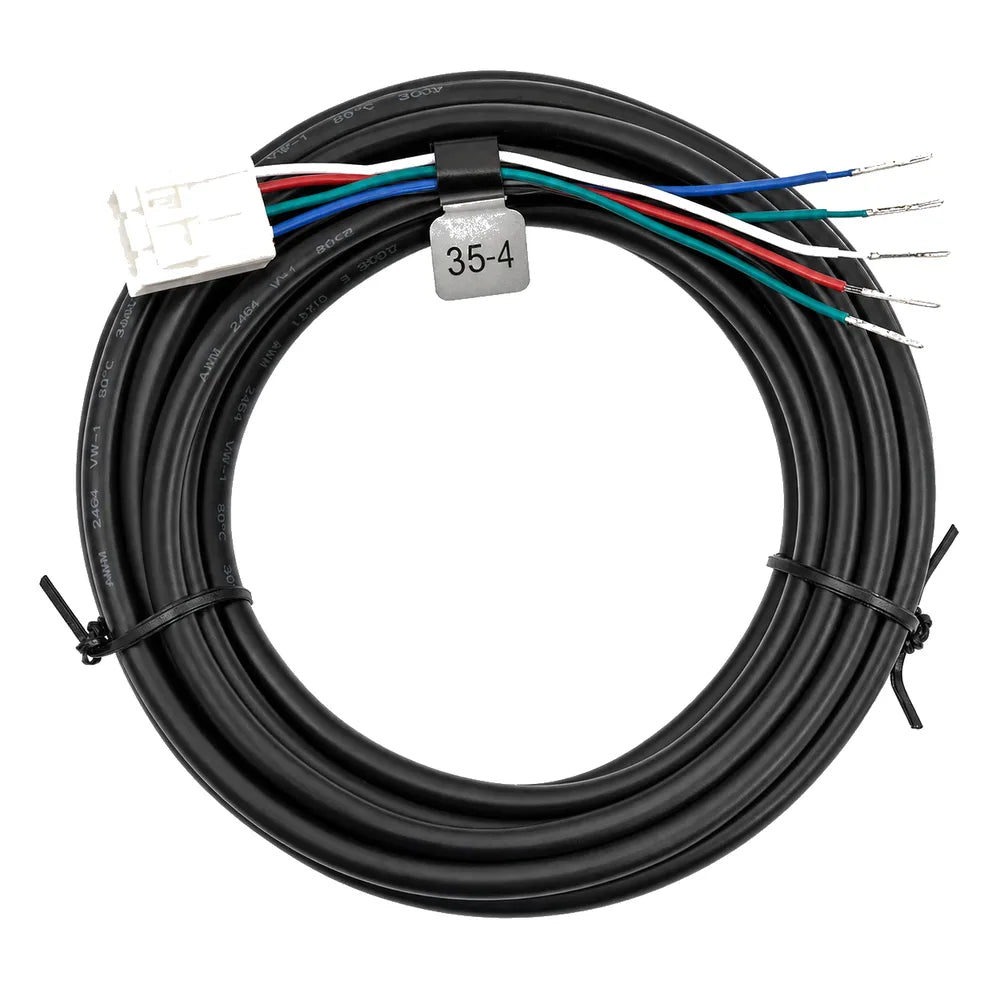

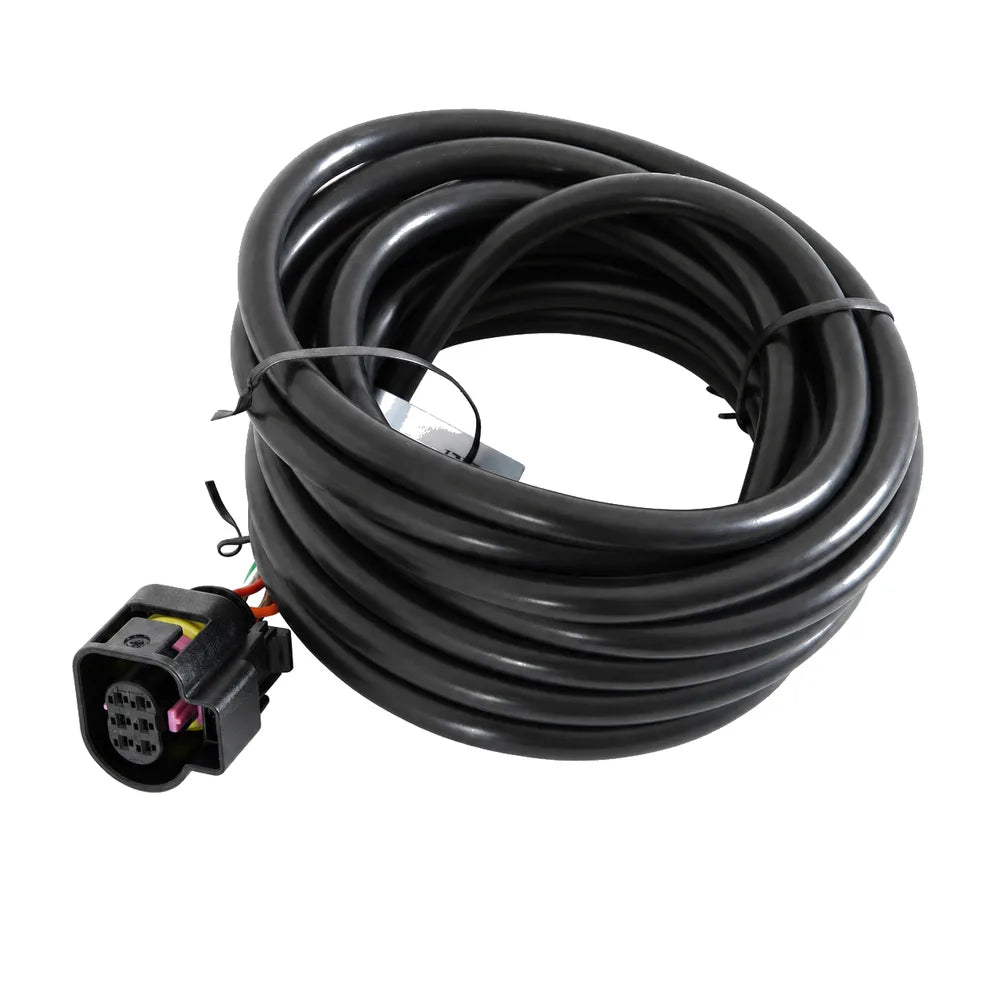

- Connect red to switched 12 V through a 5 A fuse and black to power ground. Avoid cutting or extending the sensor harness; support and protect it from heat and abrasion.
- For analog logging, connect white positive and brown negative to the receiving differential input or follow the manual's signal-ground guidance. Match the X-Series calibration above rather than a Classic gauge calibration.
- For CAN, assign a distinct supported ID to each controller and terminate the physical bus ends correctly. External hardware must support the AEMnet message format; connector shape alone does not establish compatibility.
- Use rCAL for a new supported sensor. If ACAL is needed, remove the sensor from the exhaust and follow the clean-air procedure. Mount the gauge in a dry interior location; it is not waterproof.
