Product Overview

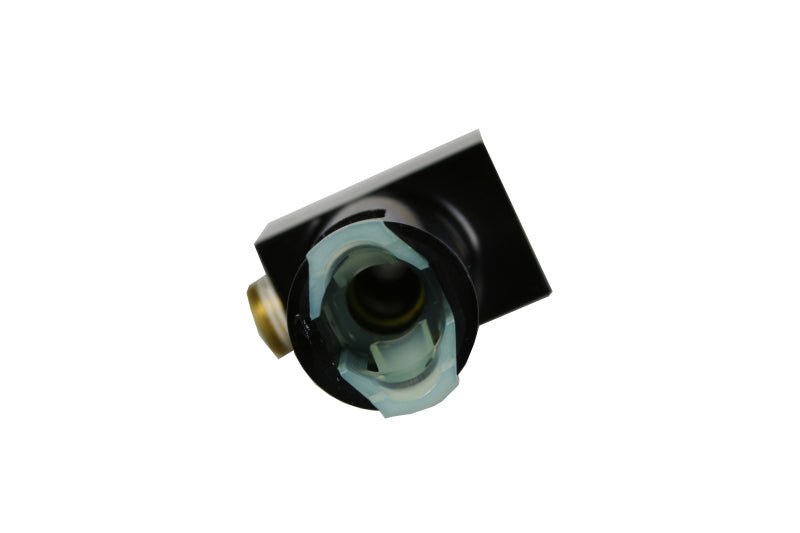

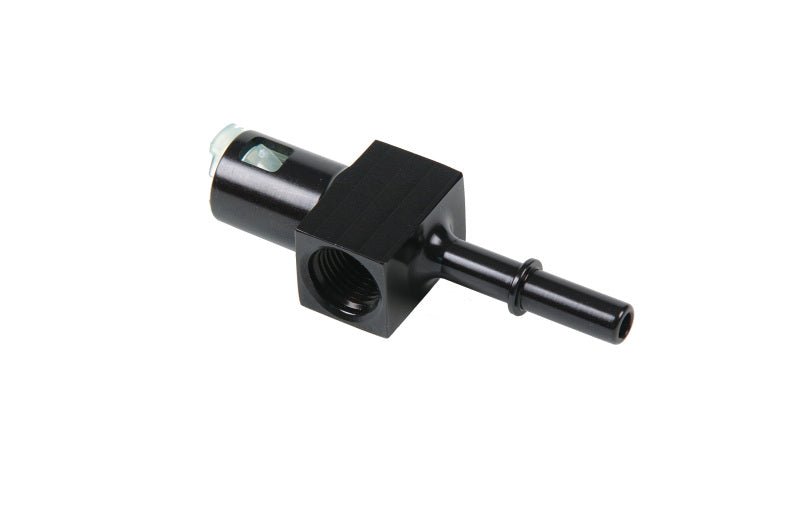

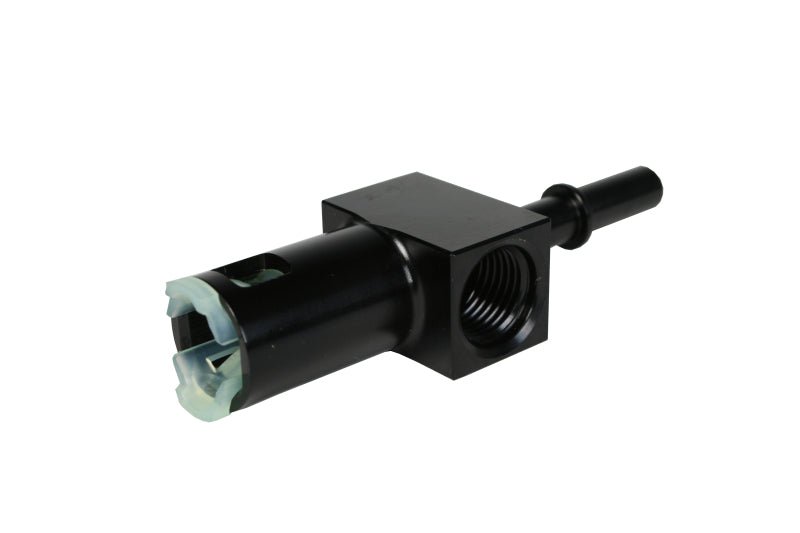

Aeromotive 15120 is the 5/16-inch quick-connect adapter with AN-06 access port. Match the actual 5/16-inch quick-connect tube, the fuel-access port geometry and the separate 1/8-inch NPT gauge port. Confirm retention and clearance; a matching vehicle name alone is not proof.
Key Features
- Quick-connect size: 5/16 inch
- Fuel access: Manufacturer designates AN-06 fuel access port. Exact sealing geometry should be confirmed before choosing a mating fitting.

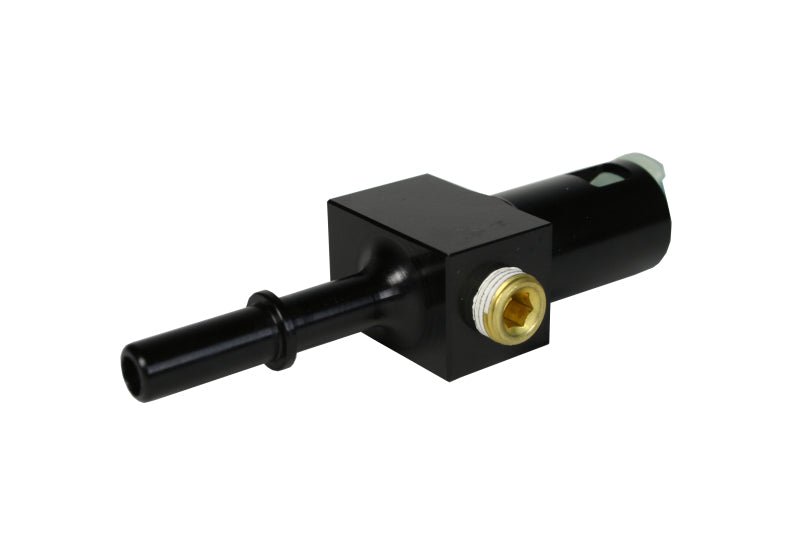

- Gauge access: Separate 1/8-inch NPT gauge port.
Fitment
This is a component-specific application, not a blanket vehicle fitment claim. Match the actual 5/16-inch quick-connect tube, the fuel-access port geometry and the separate 1/8-inch NPT gauge port. Confirm retention and clearance; a matching vehicle name alone is not proof.
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 15120 |
| Quick-connect size | 5/16 inch |
| Fuel access | Manufacturer designates AN-06 fuel access port. Exact sealing geometry should be confirmed before choosing a mating fitting. |
| Gauge access | Separate 1/8-inch NPT gauge port. |
| Use | Fuel access/gauge adapter, not an included pressure gauge or sensor. |
| Operating limits | The exact accessible source does not publish a complete numeric pressure, temperature and torque specification. Obtain the appropriate ratings and assembly procedure for the actual application. |
What's Included
- The specified adapter/fitting component.
- No hose, regulator, pressure gauge, sensor, spare seals or complete installation kit is promised. Confirm the supplied assembly components before installation.
About Aeromotive
Aeromotive develops performance fuel pumps, regulators, filters, rails, tanks, fittings, controllers, and complete fuel-system components for street, racing, and custom applications. Black Ops Auto Works organizes each listing by exact part number and available application data to support accurate system planning.
Related Parts
- Browse Aeromotive fuel-system components; verify the exact supporting part and interface before selection.
Frequently Asked Questions
What is the 15120?
It is the Aeromotive 5/16-inch quick-connect adapter with AN-06 access port in the specified configuration.
How do I confirm compatibility?
Match the actual 5/16-inch quick-connect tube, the fuel-access port geometry and the separate 1/8-inch NPT gauge port. Confirm retention and clearance; a matching vehicle name alone is not proof.
Are the fuel-access and gauge ports the same?
No. The exact page identifies AN-06 fuel access and a separate 1/8-inch NPT gauge port. Confirm the actual fuel-access sealing geometry instead of borrowing the other-size adapter's ORB designation.
What is included?
The specified adapter/fitting component. No hose, regulator, pressure gauge, sensor, spare seals or complete installation kit is promised. Confirm the supplied assembly components before installation.
Can I select this part by appearance alone?
No. Match every thread, port, seal and hose interface to the exact component; similar-looking parts can use different connections and installation requirements.
Is professional installation recommended?
Yes. Use the correct component assembly procedure, compatible fuel-system materials and seals, safe routing and a full leak check before operation.
Is this product new?
Yes. The item condition is new unless this page explicitly states otherwise.
What should I verify before checkout?
Confirm the actual application and interfaces, required quantity, supporting components, fuel compatibility and operating specifications. Do not infer numeric ratings or a complete kit from a generic family description.
Installation Instructions
- Verify the current exact manufacturer configuration. Obtain the correct assembly, sealing and torque instructions before installation.
- Depressurize the fuel system, isolate power/ignition sources and inspect the connections and sealing surfaces. Replace damaged or incompatible parts before proceeding.
- Match each interface and seal location before assembly. Use the specified hose retention or quick-connect locking procedure where applicable; do not force mismatched threads or substitute a look-alike seal.
- Follow the component's assembly procedure, support attached lines and verify clearance from heat, abrasion and moving parts. Confirm that quick-connect joints are fully engaged and retained.
- Prime and inspect all connections for leaks at the intended operating conditions. Stop, remove spilled fuel and correct any leak before operation.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
