Product Overview

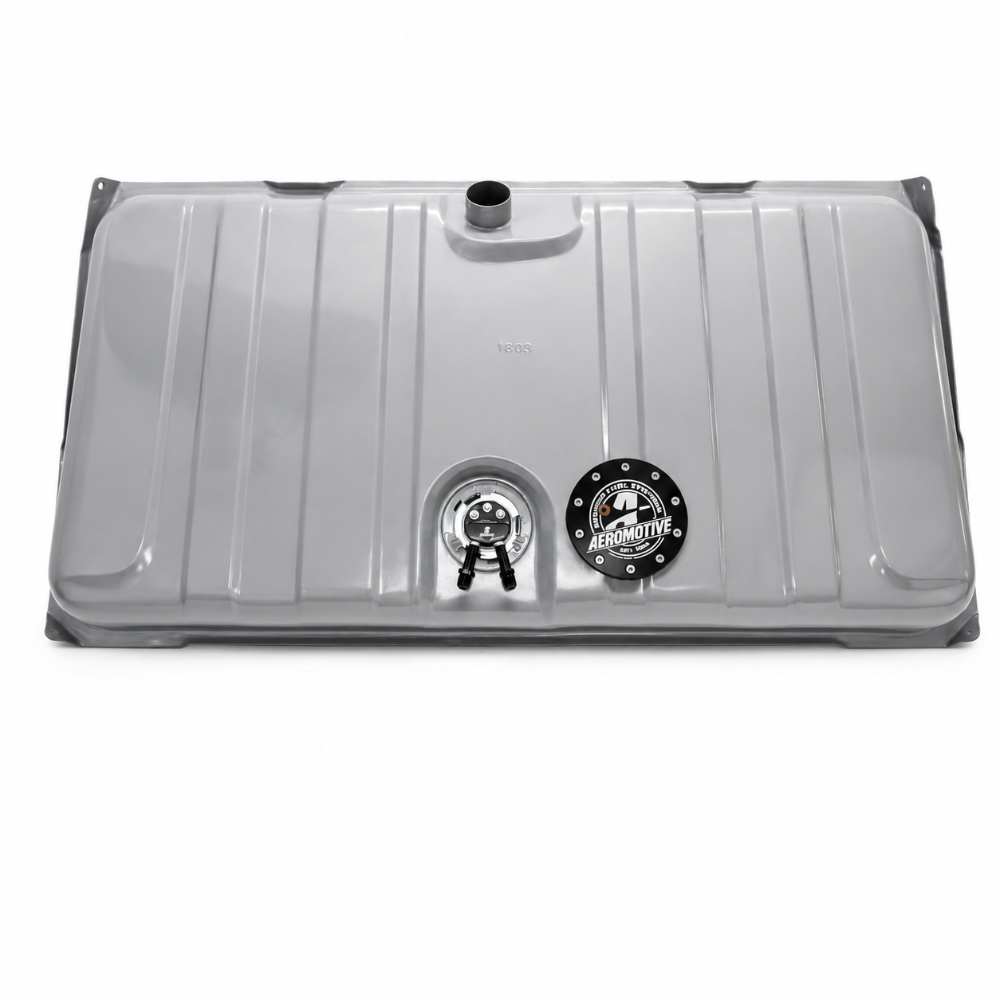

Aeromotive 18457 is the Gen II Stealth tank for 1967–1968 Chevrolet Camaro applications, supplied with a preinstalled Stealth 340 electric pump and 0–90 ohm fuel-level sender. Its silver steel shell and internal Phantom baffle support an EFI or properly regulated carbureted conversion while retaining an OEM-style tank arrangement. It is a tank/pump assembly, not a fully plumbed or wired fuel system.
Key Features
- 340 LPH at 40 psi and 13.5 V is the exact manual's pump test point; 13 A at the same point.
- 18-gallon nominal capacity; preassembled pump, sender and fuel/electrical bulkhead.
- Separate supply and return connections on the billet hat; external bypass regulation remains necessary.
- Phantom baffle helps retain fuel around the pickup; it is not a guarantee against starvation under every fuel level or maneuver.
- Current manufacturer gasoline EFI ratings: up to 850 HP naturally aspirated or 700 HP forced induction; E85 EFI up to 595/490 HP respectively. These are application ratings, not independent system guarantees.
Fitment
Aeromotive identifies this 18457 assembly for 1967–1968 Chevrolet Camaro. Confirm the actual body, mounting flange, filler and vent layout, gauge sender resistance and clearance before ordering. This manufacturer year/model scope does not independently certify every legacy store trim entry or modified chassis. It does not by itself certify a Firebird application.
The tank is supplied assembled, but the manufacturer's plug-and-play description does not eliminate external plumbing, regulation, wiring or gauge checks. Verify the actual mounting arrangement rather than assuming a generic stock-strap statement applies to every installation.
Specifications
| Detail | Value |
|---|---|
| Brand | Aeromotive |
| Manufacturer Part Number | 18457 |
| Application | 1967–1968 Chevrolet Camaro; verify actual chassis and fuel-system configuration |
| Tank capacity | 18 gallons nominal |
| Tank construction | Silver steel; internal Phantom foam/bladder baffle |
| Installed pump | Stealth 340, pump 11541 |
| Manual flow test | 340 LPH at 40 psi and 13.5 V |
| Manual current test | 13 A at 40 psi and 13.5 V |
| Continuous operating pressure | 3–65 psi with suitable carbureted or EFI regulation |
| Manual continuous current range | 10–15 A across 3–65 psi |
| Pressure limit distinction | 105 psi internal bypass/dead-head maximum; not the 65 psi continuous operating ceiling. |
| Supply and return ports | Current specification: ORB-06 female ports; exact manual: AN-06 male flare supply/return. Confirm the actual bulkhead or supplied adapters before selecting fittings. |
| Fuel-level sender | 0–90 ohms; verify compatibility with the vehicle gauge |
| Fuel compatibility | Manual: pump/race gasoline and E85/ethanol; no methanol |
| Electrical supply | 12 VDC installation; current product specification lists 12–16 V |
| Condition | New |
Published product-page length/width/height fields have not been confirmed against an installed-tank drawing and should not be used alone to establish chassis clearance.
What's Included
Preassembled Gen II steel tank with internal baffle, electric pump, fuel/electrical bulkhead and 0–90 ohm sending unit. The installation manual also identifies an included tank-ground wire. Mounting straps and mounting hardware are listed as not included; a complete external regulator, fuel-line/fitting set, post-filter and relay wiring kit are separate requirements. Do not infer a complete loose gasket or adapter inventory from family photographs.
About Aeromotive
Aeromotive develops performance fuel pumps, regulators, filters, rails, tanks, fittings, controllers, and complete fuel-system components for street, racing, and custom applications. Black Ops Auto Works organizes each listing by exact part number and available application data to support accurate system planning.
Related Parts
- Manufacturer application and exact tank options
- Exact Aeromotive 18457 installation manual

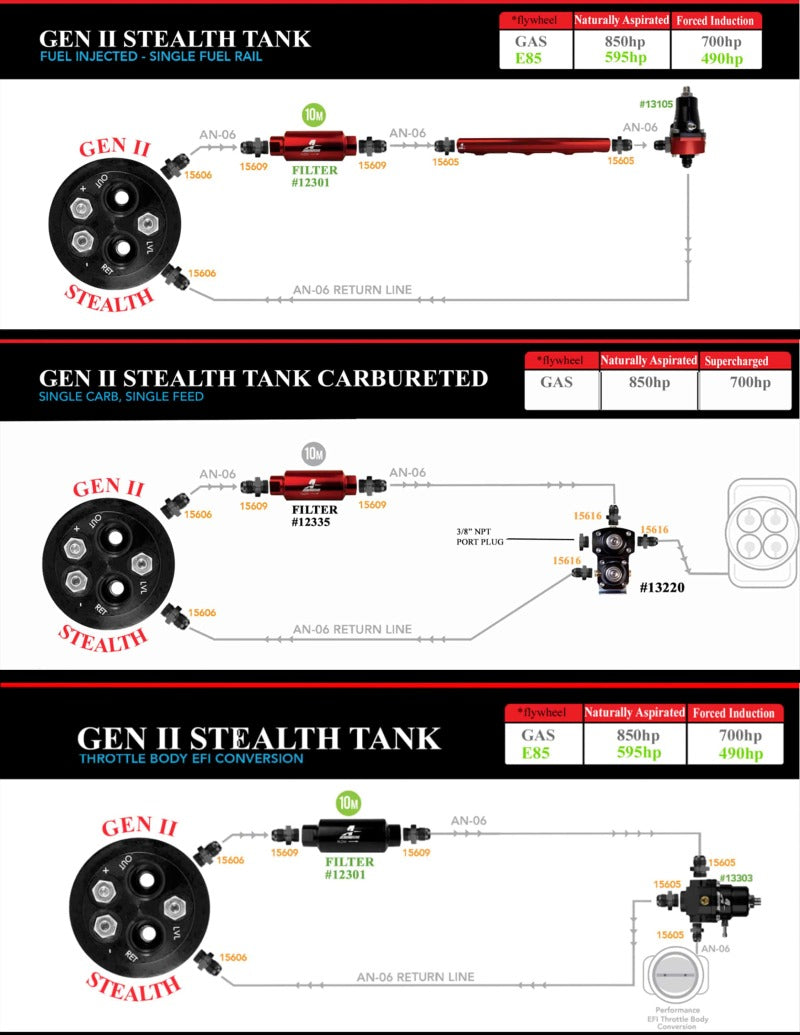

- Manufacturer Gen II EFI and carbureted system diagrams
- Shop Aeromotive fuel-system components
Frequently Asked Questions
Is this a complete fuel system?
No. The tank, pump, sender and bulkhead are preassembled, but external regulation, post-filtration, plumbing and electrical installation are still required.
Does the 200 or 340 designation equal every operating flow?
No. This 340 version has an exact-manual test point of 340 LPH at 40 psi and 13.5 V. Flow depends on pressure, voltage and installation; a horsepower headline is not a delivered-flow guarantee.
Can the pump run continuously at its maximum pressure?
No. The exact manual's 105 psi dead-head maximum is distinct from its 3–65 psi continuous operating range.
Can I use an ordinary carburetor bypass regulator?
The manual says the AN-06 return arrangement cannot reduce pressure below 10 psi with an ordinary single-stage bypass regulator. It requires a dual-stage bypass/dead-head regulator such as the 13220 for carbureted service.
Does the tank support E85?
The exact tank manual expressly lists E85/ethanol as well as gasoline. Use E85-compatible lines, seals, regulator and filter media; the manual does not allow methanol in Gen II tanks. Unverified additive blends are not blanket-approved.
Will the included sender operate any fuel gauge?
No. Its 0–90 ohm range must match the gauge and wiring. The manual requires the supplied tank-to-chassis ground connection for correct sender operation.
Are mounting straps and external wiring included?
The current specification says mounting straps and mounting hardware are not included. A complete relay/fuse wiring kit, external fuel lines, fittings, regulator and post-filter are not promised by this tank assembly.
How should I confirm this exact tank?
Match Aeromotive 18457, tank capacity, chassis mounting, filler/vent arrangement, sender resistance, fuel and pump/regulator configuration against the exact instructions before installation.
Installation Instructions
Use the exact 18457 manual and vehicle service procedures. Relieve pressure, disconnect power and support the vehicle safely before draining or removing the old tank. Fit the new assembly and connect its included tank-ground wire to a clean chassis ground so the sender works correctly.
Use properly sized AN-06 supply and return lines and a fuel-compatible high-flow post-filter. The exact manual describes male AN-06 flare outlets, while the current product specification lists female ORB-06 ports. Confirm the actual bulkhead and supplied adapters: AN flare and ORB O-ring interfaces seal differently, and matching nominal size does not make them interchangeable. Neither is a tapered pipe-thread connection. The manual's gasoline post-filter examples must not be treated as E85-compatible media; it separately names the 12345 for E85. Mount filtration and the high-flow return regulator away from heat, moving parts and abrasion. Corvette-style combined filter/regulators are specifically not recommended for this pump volume.
For carbureted use, follow the required dual-stage regulator arrangement rather than an ordinary single-stage bypass regulator. For EFI, select a regulator capable of returning the pump's full excess volume. Verify the whole circuit at the intended operating pressure.
The manual's recommendations specify 10-gauge pump wiring and a relay of at least 20 A, while its installation steps describe 12-gauge-or-larger copper, a 30–40 A relay and a 20 A fuse/breaker. These differing wire/relay statements require confirmation for the actual circuit; do not select undersized wiring or omit the fuse and relay. This is a brushed pump assembly, not an included electronic speed controller or an approval to connect an arbitrary OEM PWM power circuit.
Follow the exact tank's vent provisions and vehicle layout. The manual requires a vented cap when ventilation is through the cap only; do not assume a sealed cap works or borrow an earlier tank's cap part number.
Connect and secure vents as instructed, check sender/gauge operation, prime and inspect every fuel connection for leaks. Confirm pressure and voltage before driving. The manufacturer limits emissions-controlled-vehicle sale/use to a direct replacement matching OEM specifications; tank fitment alone does not establish that legal exception.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
