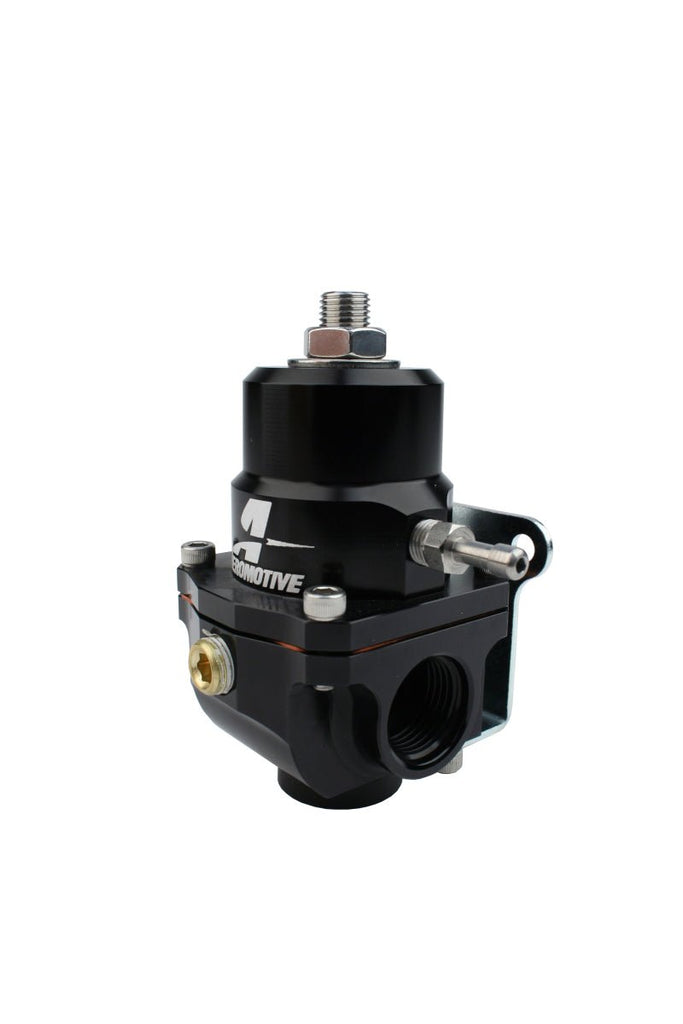

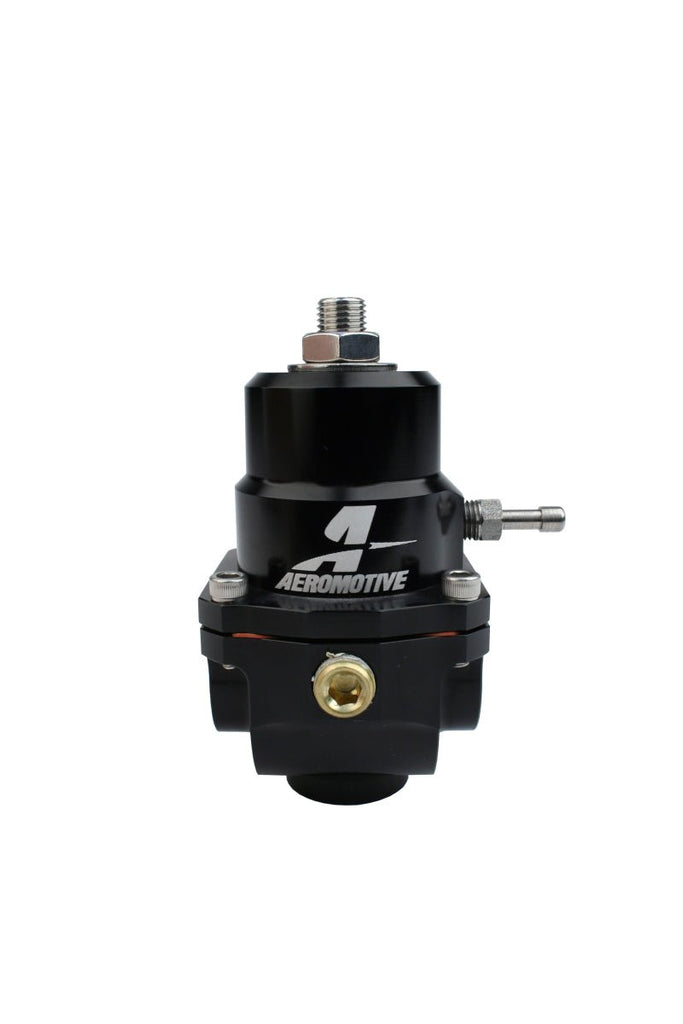

Replace original X1 Series regulator internals with the conversion kit of your choice (Part #?s 13013, 13014, and 13015) and you have a regulator with vastly different characteristics.?While versatility is one of the X1?s greatest assets, it is far from the only new design feature. Utilizing larger (3) -8AN ORB inlet/outlet/return ports to accommodate increased flow, at the same time Aeromotive reduced overall size and the weight by 33% (compared to Aeromotive 13109 regulator). The new X1 design eliminates the compromise common to other convertible regulator designs, with the optimization of all internal components including the diaphragm/poppet, spring and bypass seat, the X1 delivers all of the performance and features you expect from an application specific bypass regulator, regardless of what you decide to do with your induction system tomorrow.? Above and beyond the expected performance, you still have the amenities like a 1/8? NPT gauge port and 1:1 ratio boost reference port for forced induction applications. Base fuel pressure adjustable from 3-20 PSI. Vacuum/Boost reference capability. 1:1 rising rate for blow-through carburetors. Gasoline, ethanol, and alcohol compatible. (2) ORB-08 inlet/outlet ports on the sides. (1) ORB-08 return port on the bottom. (1) 1/8? NPT Gauge Port with plug. 1/16? NPT Boost Port with 5/32? hose barb. Compatible with both X1 EFI conversion kits. 0.313? bypass with matching spring and poppet. Handles up to 150 GPH with AN-08 return line. Suitable for any Aeromotive pump up to A1000. Mounting bracket included.
Aeromotive
Aeromotive fuel system parts for Ford Mustang, Chevrolet Camaro, Cadillac CTS-V, Dodge and Jeep HEMI trucks, and other high-horsepower gasoline and E85 builds are stocked at Black Ops Auto Works. Shop Aeromotive in-tank fuel pumps, external fuel pumps, fuel pressure regulators, fuel filters, stealth fuel cells, PWM controller kits, and AN fittings for supercharged, nitrous, and naturally aspirated engines. Every product is filterable by year, make, model, trim, engine, and drivetrain so the correct part ships the first time. Black Ops Auto Works carries 280 Aeromotive SKUs across pumps, regulators, controllers, and fuel cell categories. What This Brand Covers Aeromotive has been the standard for high-performance fuel delivery since 1994, engineering fuel pumps, regulators, filters, and complete fuel system kits trusted by professional racers and serious street car builders. If your engine is making big power on forced induction, nitrous, or a naturally aspirated high-displacemen...
View Aeromotive Products
Engine
Engine parts and engine bay upgrades for Dodge, Jeep, RAM, Chrysler, Chevrolet, Ford, Toyota, Nissan, Subaru, and Honda vehicles are stocked at Black Ops Auto Works. Shop oil catch cans, supercharger pulleys, thermostats, radiators, cooling parts, throttle bodies, intake manifolds, headers, ignition coils, spark plugs, sensors, gaskets, fuel pumps, valve covers, engine covers, billet cap covers, and full engine bay dress-up parts for HEMI, Hellcat, Trackhawk, Redeye, Demon, Scat Pack, RAM TRX, LS, LT, Coyote, EcoBoost, K-Series, and 2JZ builds. Every product is filterable by year, make, model, trim, engine, and drivetrain so the correct part ships the first time. Black Ops Auto Works carries 14,298 engine SKUs across performance, cooling, oil control, ignition, and appearance categories. What This Category Covers The Engine collection combines OEM-replacement engine service parts with performance aftermarket upgrades for supercharged, turbocharged, and naturally aspirated builds...
View Engine Products
Fuel Delivery
Fuel delivery parts for gas and diesel trucks, muscle cars, and import performance builds are stocked at Black Ops Auto Works. Shop fuel pumps, fuel pump modules, fuel rails, pressure regulators, fuel filters, fuel tanks, carburetors, flex fuel kits and sensors, fuel caps, and surge tanks for Ram Cummins, Ford Powerstroke, Dodge Charger and Challenger, Jeep, Chevrolet, Honda, Nissan, and Infiniti platforms. Every product is filterable by year, make, model, trim, engine, and drivetrain so the correct part ships the first time. Black Ops Auto Works carries 1,874 fuel delivery SKUs across pumps, hardware, and tank categories. What This Category Covers Fuel delivery parts move fuel from the tank to the engine at the pressure and volume the injectors or carburetor need. This collection spans in-tank and external fuel pumps, pump modules and hangers, fuel pressure regulators, fuel rails, filters, tanks, carburetors, flex fuel conversion kits, and the caps and misc components that comp...
View Fuel Delivery Products
Fuel Pressure Regulators
Fuel pressure regulators and fuel system control parts for LS, Coyote, Hemi, K-series, 2JZ, EJ and diesel builds are stocked at Black Ops Auto Works. Shop adjustable EFI regulators, rising-rate FPRs, return-style regulators, carburetor regulators, regulator and filter combinations, springs, gauges and fittings for naturally aspirated, boosted and E85-ready fuel systems. Every product is filterable by year, make, model, trim, engine, and drivetrain so the correct part ships the first time. Black Ops Auto Works carries 156 fuel pressure regulator SKUs across return systems, boost-referenced setups, carbureted applications, direct-mount EFI hardware and service parts. Fuel Pressure Regulator Basics Control pressure at the rail or carburetor A fuel pressure regulator controls fuel pressure delivered to injectors or a carburetor. In a return-style EFI system, excess fuel returns to the tank while the regulator maintains the chosen base pressure at the rail. Choose a regulator around ...
View Fuel Pressure Regulators Products
